Remove/Install Wheel And Tire Assemblies - AR40.10-P-1102MFA

Model 118, 177, 243, 247

MODIFICATION NOTES

03.02.2021 Installing differently coated wheel bolts on one wheel and tire assembly (1) is not permissible. Operation step 5.
G14688903Courtesy of MERCEDES-BENZ USA

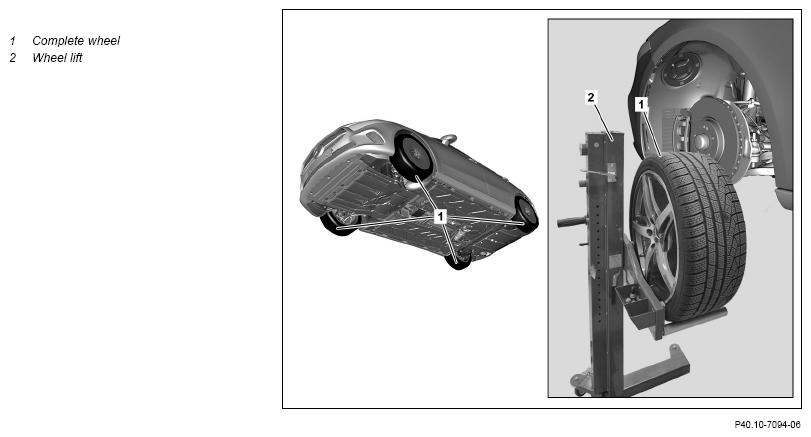

G14688904Courtesy of MERCEDES-BENZ USA

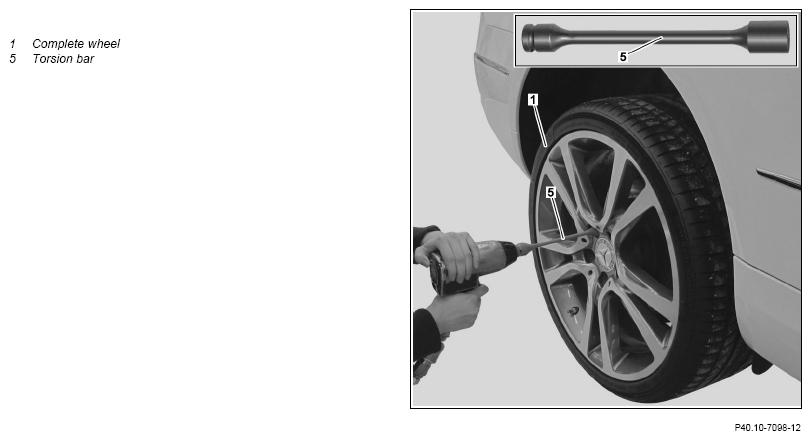

G14688905Courtesy of MERCEDES-BENZ USA
Topical note  Information on tires rims   AH40.10-P-9411-01A
Topical note  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVING Remove
1 Raise vehicle.   AR00.60-P-1006A
2 Remove wheel trims. Model 118, 177, 243, 247
with code 643 (43.2 cm (17-inch) steel wheels
with wheel trims)
Model 118, 177, 243, 247
with code R00 (Steel wheel)
3 Remove screw-on AMG hub covers in center lock design. Model 118, 177
with code RSY (48.3 cm (19-inch) AMG cross-spoke light-alloy wheels) Model 118, 177
with code RSZ (48.3 cm (19-inch) AMG cross spoke light-alloy wheels)
    SPECIAL TOOL Socket wrench bit Fig 2
4 Remove wheel and tire assemblies (1). IMPORTANTOnly for GERMANY ONLY Use a wheel lift dolly (2) with a rim size from 17".
    SPECIAL TOOL Socket wrench Fig 1
INSPECT Check
5 Check components of wheel bolt connection. NOTES Installing differently coated wheel bolts on one wheel and tire assembly (1) is not permissible. Otherwise braking vibrations will occur.
IMPORTANT Before mounting a wheel and tire assembly (1), remove minor soiling using a rag.
Apply heat-resistant lubricating paste sufficiently on wheel hub.
    Paste, hot lubrication 1 kg, DBL 6879.20 If problems exist,
↓
clean wheel bolt connection components and protect against corrosion.		 *BR00.45-Z-1005-06A
      AR40.10-P-1100-02A
6 Check tires of wheel and tire assemblies (1) for wear and damage. On the wheel and tire assemblies (1) to be installed.
REFER TO MAINTENANCE   Model 243 AP40.10-P-4051EQ
REFER TO MAINTENANCE   Model 118, 177, 247
INSTALLING Install
7 Install wheel and tire assemblies (1). IMPORTANTOnly for GERMANY ONLY Use a wheel lift dolly (2) with a rim size from 17".
IMPORTANT Commercially available devices/tools Use torsion bar (5) with 75 Nm for 2nd stage (initial torque).
IMPORTANT Observe tightening sequence "A, B, C, D, E" and the multistage tightening torque of the wheel bolts.
    TORQUE SPECIFICATION Wheel bolt to steel wheel/light-alloy wheel *BA40.10-P-1001-01Q
    SPECIAL TOOL Socket wrench Fig 1
8 Install wheel trims. Model 118, 177, 243, 247
with code 643 (43.2 cm (17-inch) steel wheels
with wheel trims)
Model 118, 177, 243, 247
with code R00 (Steel wheel)
NOTES Check for firm seating of wheel trim on rim and for correct positioning of wheel trim relative to valve.
Otherwise, there is a risk of losing the wheel trim or of damaging the valve.
9 Mount screw-on AMG hub covers in center lock design. Model 118, 177
with code RSY (48.3 cm (19-inch) AMG cross-spoke light-alloy wheels)
Model 118, 177
with code RSZ (48.3 cm (19-inch) AMG cross spoke light-alloy wheels)
    TORQUE SPECIFICATION Aluminum wheel hub cover to light alloy wheel *BA40.10-P-1002-01Q
    SPECIAL TOOL Socket wrench bit Fig 2
10 Check tire pressure on wheel and tire assemblies (1). Only when changing tire.
    Model 243 AP40.15-P-4061EQ
    Model 118, 177, 247 If there is a problem,
↓
correct tire pressure on wheel and tire assemblies (1).		 AP40.15-P-4061A
11 Restart tire pressure monitor (TPM) or tire pressure loss warning via the instrument cluster. Only when changing tire.
REFER TO MAINTENANCE     AP40.15-P-4069U
12 Check maximum speed limitation in instrument Only when changing tire.
IMPORTANT Note tire speed rating. If the maximum permissible speed of an M+S tire is lower than the maximum permissible speed of the vehicle.
↓
Apply corresponding adhesive label in the driver's visual field.
WHEELS

Number Designation Model 118 Model 177
BA40.10-P-1001-01Q Wheel bolt to steel wheel/light-alloy wheel Stage 1 (position by hand) Nm - -
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 130 130
WHEELS

Number Designation Model 243 Model 247
BA40.10-P-1001-01Q Wheel bolt to steel wheel/light-alloy wheel Stage 1 (position by hand) Nm
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 150 130
WHEELS

Number Designation Model 118 Model 177
BA40.10-P-1002-01Q Aluminum wheel hub cover to light alloy wheel Nm 27 27
Fig 1: Identifying Socket Wrench (199 589 01 09 00)
G07414477Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Socket Wrench Bit (222 589 00 09 00)
G12618469Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1005-06A Paste, hot lubrication 1 kg, DBL 6879.20 A 000 989 76 51
