Outer B-Pillar Panel Remove And Install - Ar63.20-P-1222MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

Shown on model 177.0

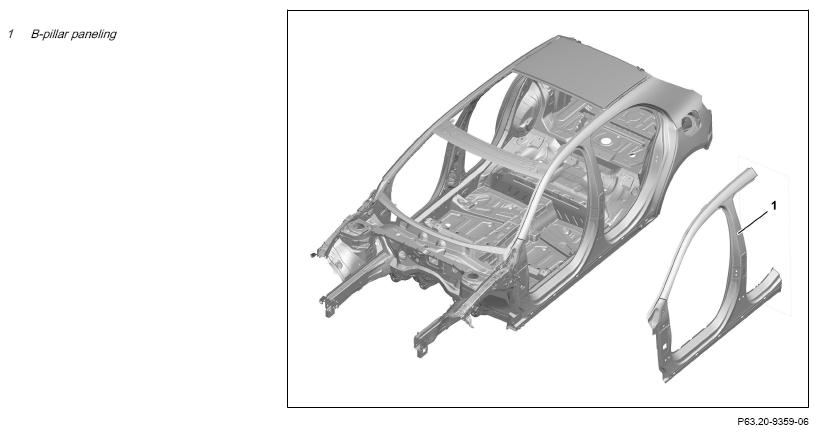

Fig 1: Outer B-Pillar Panel Component Location (Shown On Model 177.0(

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on acoustic foam and structural foam in the vehicle		AH60.00-P-0039-01MFA
	General information on MB materials		AH98.00-P-9409-03A
	General information on repair of vehicles with ultra-strength steels.		AH60.00-P-0024-01N
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blankets.
3	Remove B-pillar paneling (l).		AR63.20-P-1222-01MFA
	000 588 15 84 00 Heat gun		WS54.00-P-0125B
		Commercially available devices/tools  Round wire brush Body power jigsaw Spot weld milling machine Wet/dry vacuum cleaner
		1K-zinc dust paint	*BR00.45-Z-1056-07A
4	Prepare B-pillar paneling (l).		AR63.20-P-1222-02MFA
		Commercially available devices/tools  Round wire brush Body power jigsaw Spot weld milling machine
		1K-zinc dust paint	*BR00.45-Z-1056-07A
	Install
	Risk of explosion  and poisoning caused by solvent vapors and gasses. Risk of injury  to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
Notice	Measures for preventing damage to components when performing electric welding and soldering work		AH60.00-P-0001-02A
	General notes on welding		AH60.00-P-0005-01N
	General information on riveting		AH60.00-P-0003-01N
5	Install B-pillar paneling (1).		AR63.20-P-1222-03MFA
	000 588 12 84 00 Welder		WS00.00-P-0318K
	000 588 13 84 00 Welder		WS60.00-P-0437K
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN)	*BR00.45-Z-1012-13A
		White sealing compound, 310 ml, DBL 6069.20 If a basic body filler is used as an alternative to the restoration of surfaces with body solder, ↓ Apply basic body filler.	*BR00.45-Z-1003-01A
		Process filler on body	AR60.00-P-0031-01LWG
		Basic body filler	*BR00.45-Z-1057-07A
6	Clean weld joints and sheet metal flange.	Commercially available devices/tools  Round wire brush
7	Remove spark protection blankets.
8	Clean repair area.	Commercially available devices/tools  Wet/dry vacuum cleaner
9	Treat repair areas with primer filler.
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting + _		AH98.00-P-0003-01A
		Use only primer filler approved by Daimler AG: http://xentryportal.mercedes-benz.com
10	Seal seam after repair.		AR97.10-P-4000-03MFA
		Seam sealant, sprayable 310 ml	*BR00.45-Z-1041-01A
		White sealing compound, 310 ml, DBL 6069.20	*BR00.45-Z-1003-01A
11	Paint repair areas and adjacent surfaces.
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting +		AH98.00-P-0003-01A
		Use only paints approved by Daimler AG: http://xentryportal.mercedes-benz.com
12	Supplement cavity preservation.		AR97.20-P-1500MFA
13	Reinstall detachable parts in area of repair point.
