Outer B-Pillar Panel Remove - Ar63.20-P-1222-01MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

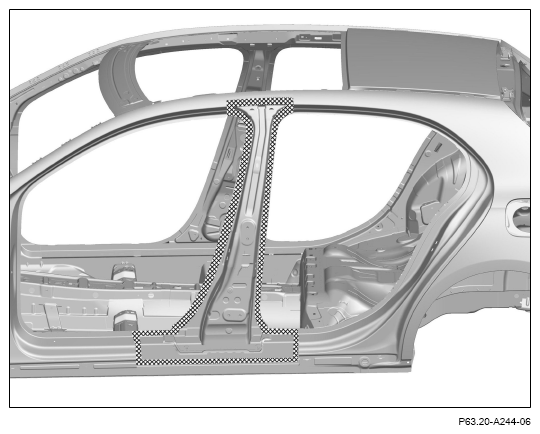

The next steps are shown on the left side of the vehicle on model 177.0. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

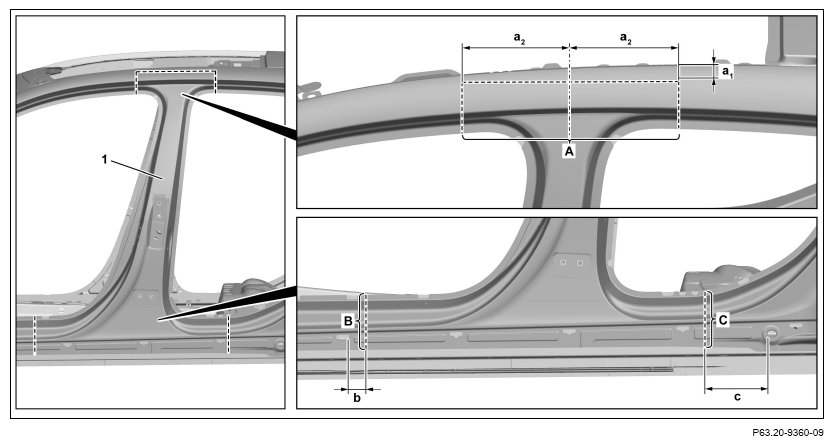

1. Mark separating points on B-pillar paneling (1) and separate (areas A, B, C).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.



   Separating points on B-pillar paneling (1) can be selected freely according to degree of damage. Ensure a sufficient distance of approx. 50 mm to the foamed areas.



   Model 118.3/6

   Model 177.0/1/9

   Model 247.0

   Dimensions:

   a₁ : Approx. 15 mm

   a₂ : Approx. 140 mm

   b: Approx. 80 mm

   c: Approx. 260 mm



   Model 247.6/7

   Dimensions:

   a₁ : Approx. 15 mm

   a₂ : Approx. 140 mm

   b: Approx. 65 mm

   c: Approx. 160 mm

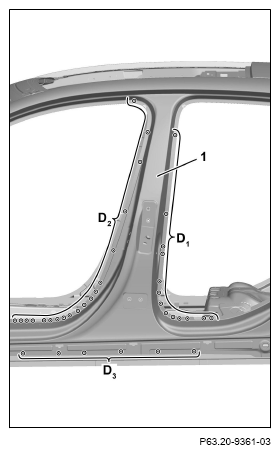

2. Expose spot welds on the B-pillar paneling (1) and cut out (areas D₁ , D₂ , D₃ ).

   Courtesy of MERCEDES-BENZ USA

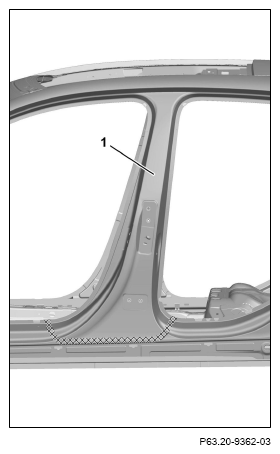

3. Heat B-pillar paneling (1) in cross-hatched areas.



   Cross-hatched areas are bonded with adhesive.

4. Remove B-pillar paneling (1).

   Courtesy of MERCEDES-BENZ USA

5. Grind mating surfaces down to bare metal in cross-hatched areas.



   Sand down spot weld flanges to bare metal on both sides.

6. Remove shavings and drill chips.
7. Coat insides of spot weld flanges with zinc dust paint.
