Remove/Install Front Axle Shafts - AR33.30-P-0620XGA
Model 463 with engine 176, 177 as of model year 2019
Model 463 with engine 264 as of model year 2019
Shown on right front axle
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove corresponding front wheel and tire assembly. | AR40.10-P-1102XG | |
| 2 | Remove lower center engine compartment lining. | AR61.20-P-1105XG | |
| 3 | Remove screw (1). | *BA33.30-P-1001-07E | |
| 4 | Detach brake hose (2) and electric lines (3) from steering knuckle (4). | ||
| 5 | Remove brake caliper (5) with connected brake hose (2) and secure free of tension to vehicle. | Model 463.210 with engine 264 as of model year 2019 Model 463.260/261 with engine 176 as of model year 2019 |
AR42.10-P-0070XG |
| Model 463.276/277 with engine 177 as of model year 2019 | AR42.10-P-0070XGA | ||
| 6 | Remove threaded connection (6). | *BA32.25-P-1005-04R | |
| 7 | Remove nut (7). | *BA32.35-P-1006-01A | |
| 8 | Unscrew nut (8). | *BA33.15-P-1011-01A | |
| 9 | Remove screws (9). | When removing the right front axle shaft (10). |
*BA33.30-P-1002-07E |
| 10 | Fold steering knuckle (4) downwards and remove front axle shaft (10) downwards. | Otherwise the joints will be damaged. Installation: Seal sealing surfaces between right front axle shaft to axle tube. Sealant, Loctite 5970, 50 ml |
*BR00.45-Z-1013-01A |

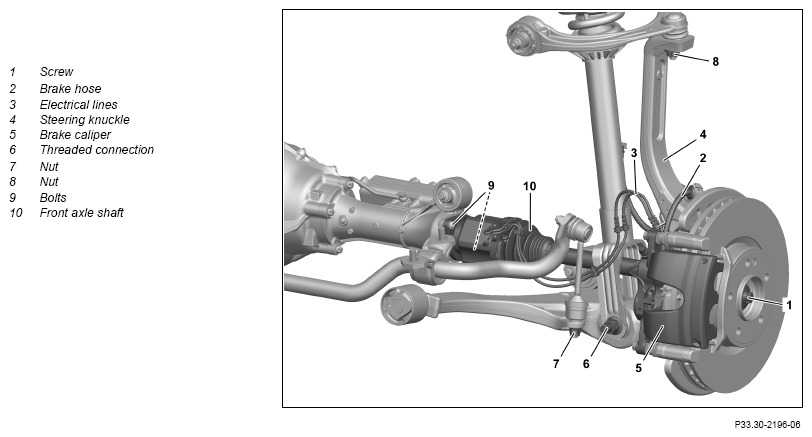

| Fig 1 | |||
| 11 | Remove radial shaft sealing ring. | When removing the left front axle shaft (10). | AR33.30-P-7134XGA |
| 12 | Clean sealing surfaces between right front axle shaft to axle tube and check for damage. | When removing the right front axle shaft (10). Assembly cleaner If damage occurs, ↓ replace front axle differential or right front axle shaft (10). |
*BR00.45-Z-1028-04A |
| Model 463 with engine 176, 177 as of model year 2019 | AR33.30-P-0525XGA | ||
| Model 463 with engine 264 as of model year 2019 | AR33.30-P-0525XGF | ||
| 13 | Install in the reverse order. | ||
| 14 | Check front axle differential for leak tightness. Notes on evaluating leakages | AH00.00-N-0011-01A | |
| 15 | Install bottom center engine compartment lining. | AR61.20-P-1105XG |
SUSPENSION STRUTS
| Number | Designation | Model 463 as of model year 2019 | |||
|---|---|---|---|---|---|
| BA32.25-P-1005-04R | Bolt, suspension strut to suspension strut step bearing | M16 | Stage 1 | Nm | 100 |
| Stage 2 | ∠° | 180 | |||
STABILIZER BAR/TORSION BAR
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA32.35-P-1006-01A | Nut, torsion bar linkage on front axle to torsion bar/transverse control arm at bottom | Nm | 95 |
TRAILING ARMS, TRANSVERSE CONTROL ARMS
| Number | Designation | Model 463 as of model year 2019 | |||
|---|---|---|---|---|---|
| BA33.15-P-1011-01A | Nut, upper transverse control arm to steering knuckle | M14 | Stage 1 | Nm | 100 |
| Stage 2 | ° | 45 | |||
DRIVE SHAFT
| Number | Designation | Model 463 as of model year 2019 | |||
|---|---|---|---|---|---|
| BA33.30-P-1001-07E | Screw, wheel bearing to drive shaft | M16 | Stage 1 | Nm | 170 |
| Stage 2 | °∠ | 90 | |||
DRIVE SHAFT
| Number | Designation | Model 463 as of model year 2019 | |||
|---|---|---|---|---|---|
| BA33.30-P-1002-07E | Screw, drive shaft to axle tube (front axle differential) | M8 | Stage 1 | Nm | 20 |
| Stage 2 | 0 | 60 | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant, Loctite 5970, 50 ml | A 003 989 98 20 10 |
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
