Remove/Install Left Radial Shaft Sealing Ring On Front Axle Transmission - AR33.30-P-7134XGA

Model 463 with engine 176

as of model year 2019

Model 463 with engine 177

as of model year 2019

Model 463 with engine 264

as of model year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove left front axle shaft.		AR33.30-P-0620XGA

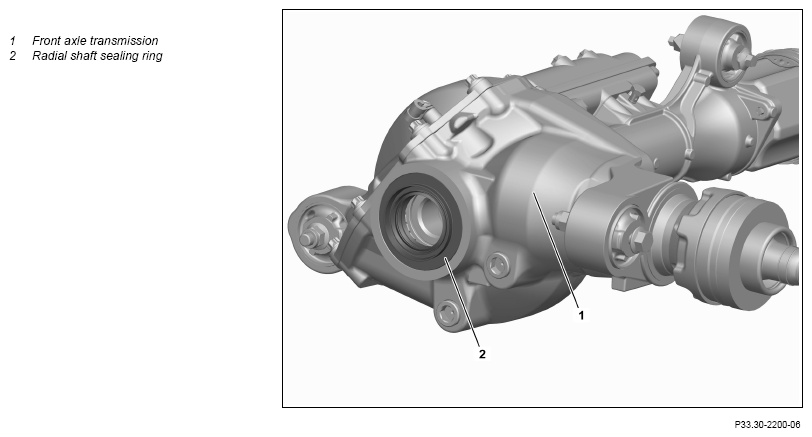

2	Pry out radial shaft sealing ring (2) using suitable tool from front axle differential (1).	Do not damage seat of radial shaft sealing ring (2) in front axle differential (1). Otherwise leaks may occur.
3	Clean seat of radial shaft sealing ring (2) in front axle differential (1).	Assembly cleaner	*BR00.45-Z-1028-04A
4	Check seat of radial shaft sealing ring (2) in front axle differential (1) for damage.	If the seat is damaged, ↓ replace front axle differential (1). Model 463 with engine 176, 177 as of model year 2019	AR33.30-P-0525XGA
		Model 463 with engine 264 as of model year 2019	AR33.30-P-0525XGF
	Install
5		Lubricate sealing lip of radial shaft sealing ring (2) with transmission oil.
	Universal hypoid gear oils (specification 235.7)	Replace radial shaft sealing ring (2).	BB00.40-P-0235-07A
6	Use drift to press in radial shaft sealing ring (2) until the drift makes contact with the housing.	Drift punch	Fig 1
7	Install left front axle shaft.	Install bottom center engine compartment lining only after the leak test.	AR33.30-P-0620XGA
8	Check oil level in front axle differential (1) and correct.		AR33.30-P-0010XGA
9	Check front axle differential (1) for leak tightness. Notes on evaluating leakages		AH00.00-N-0011-01A
10	Install bottom center engine compartment lining.		AR61.20-P-1105XG

Fig 1: Identifying Drift Punch (140 589 05 15 00)

Courtesy of MERCEDES-BENZ USA
