Overview Of System Components For Electric Seats - GF91.29-P-9992GW
Model 463

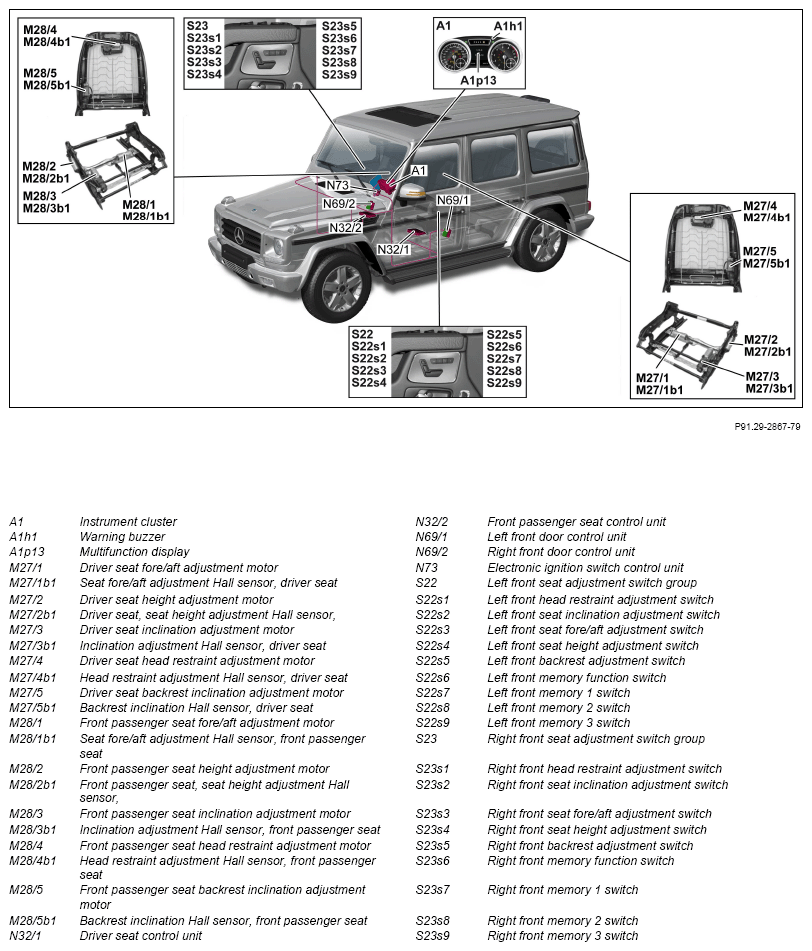

as of model year 2013

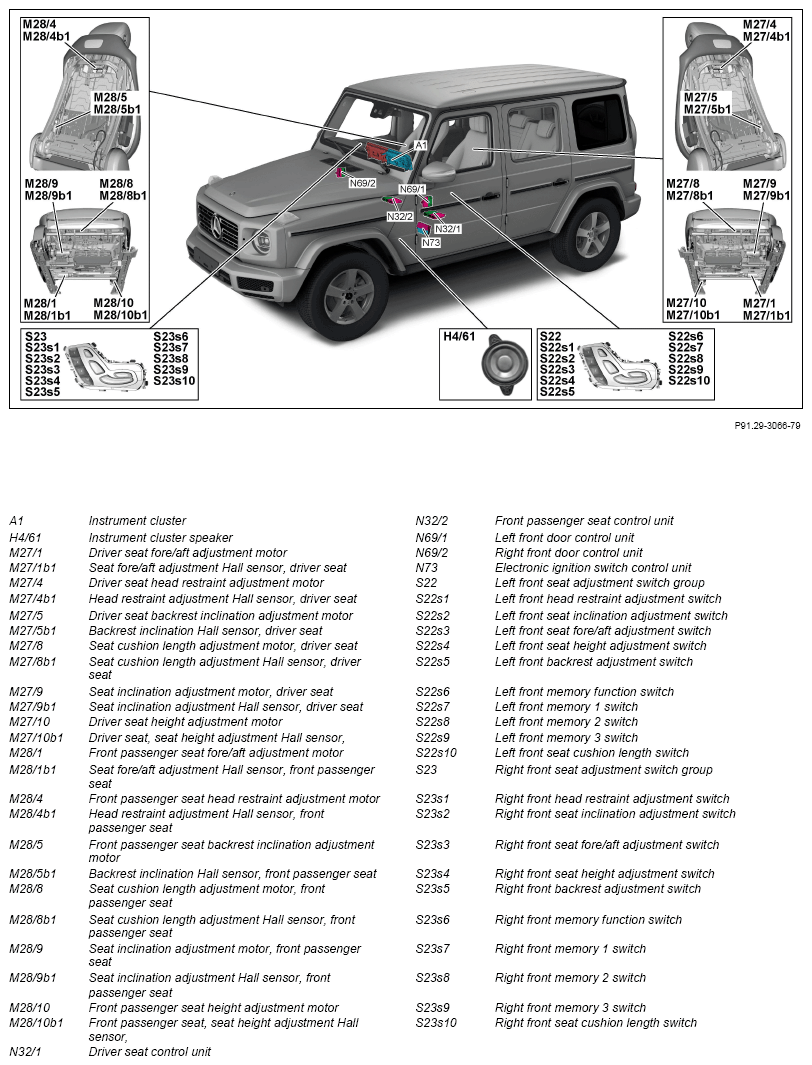

Electrical seat adjustment (ESE) (except model 463.342), shown on model 463 as of 03.04.2018

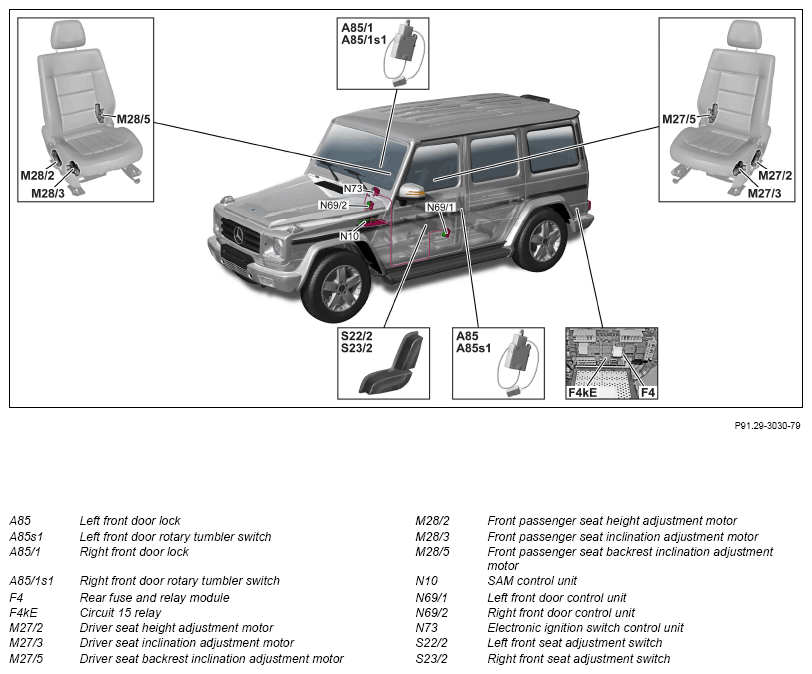

Electrical seat adjustment (ESE) (except model 463.342), shown on model 463.23 up to 02.04.2018
In model 463.20, the following components are also installed, but they are not shown:
- Left front seat backrest release microswitch (S91/3)
- Right front seat backrest release microswitch (S92/3)
Electrical seat adjustment (ESE) function, model 463.342

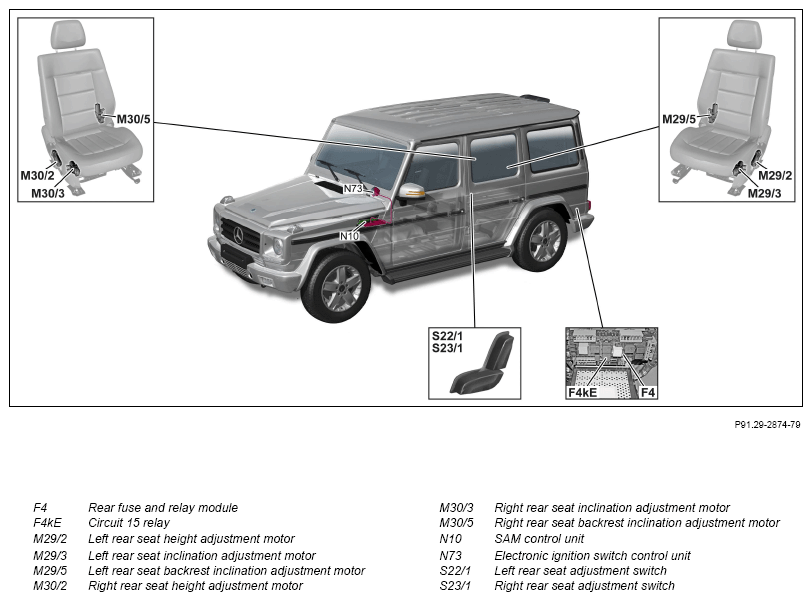

Electrical seat adjustment (ESE) in rear passenger compartment (with code S52 (Individual seats at left/right rear with seat heating)), shown on model 463 up to 31.08.2015

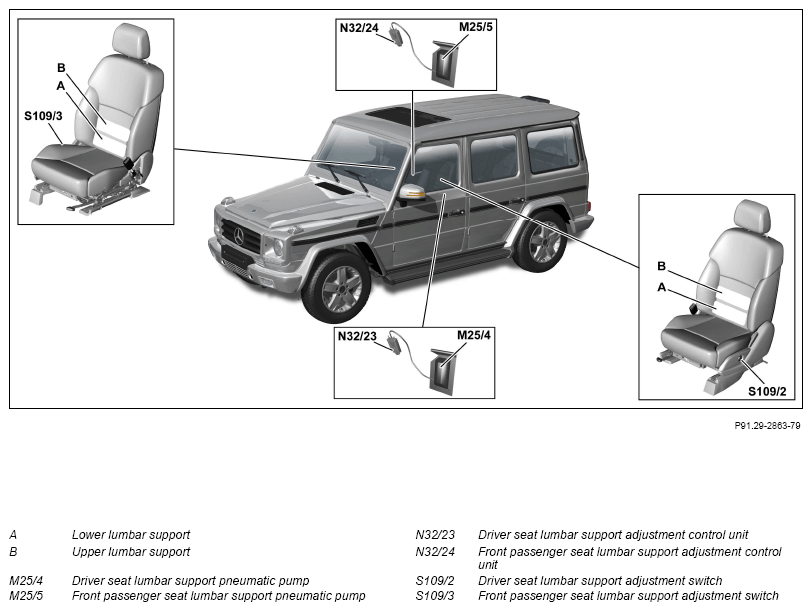

Lumbar support adjustment (except model 463.342 and except code PA9 (Active Multicontour Seat Package)), shown on model 463.23 up to 02.04.2018

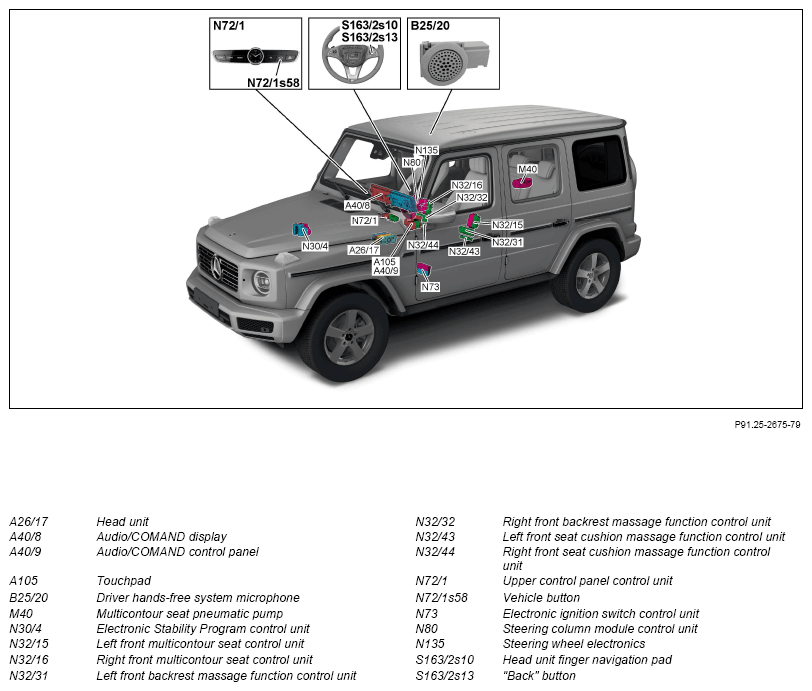

Multicontour seat with code PA9 (Active Multicontour Seat Package), shown on model 463 as of 03.04.2018

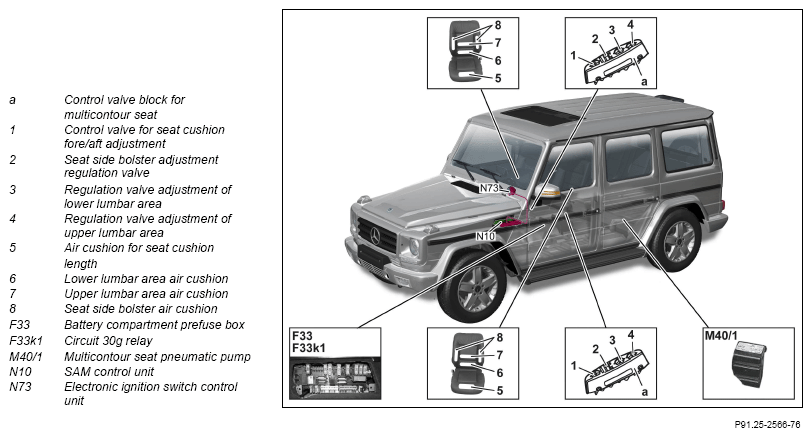

Multicontour seat (with code PA1 (Seat Comfort Package)), shown on model 463.23 up to 02.04.2018

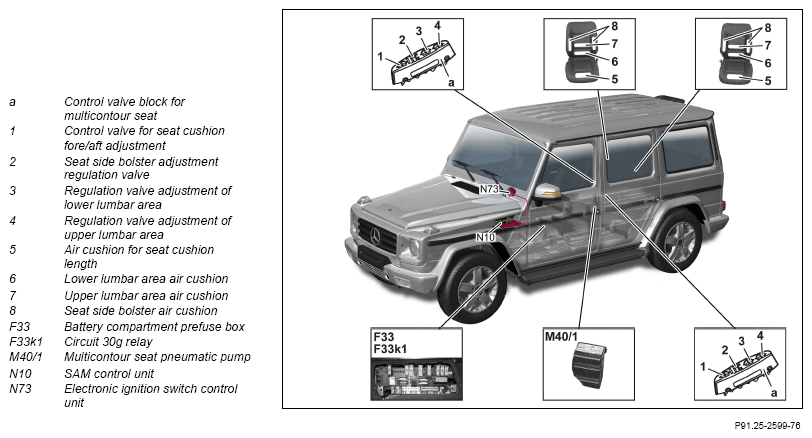

Multicontour seat (with code S52 (Individual seats at left/right rear with seat heating)), shown on model 463 up to 31.08.2015

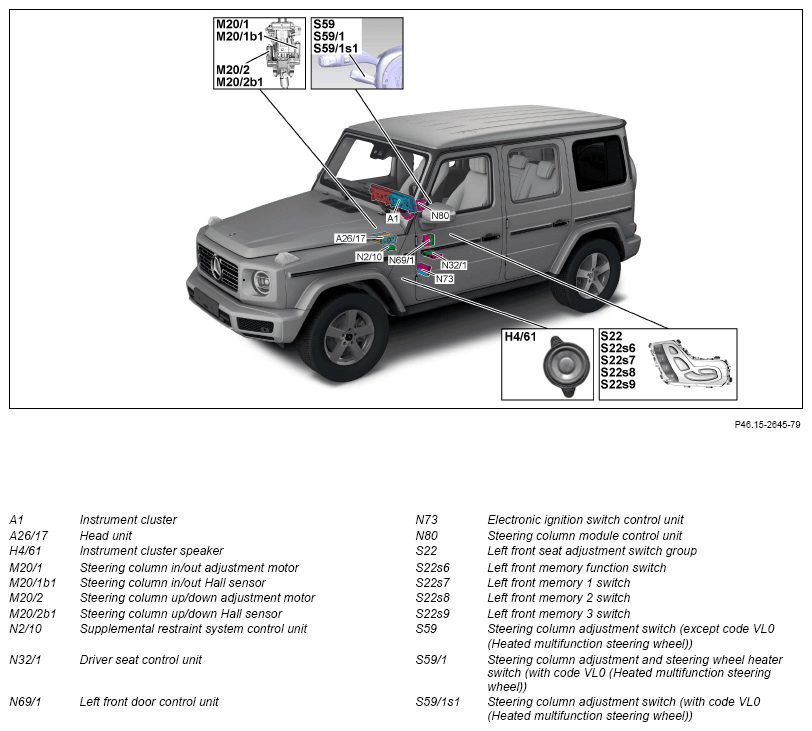

Electrically adjustable steering column, shown on model 463 as of 03.04.2018 except model 463.342

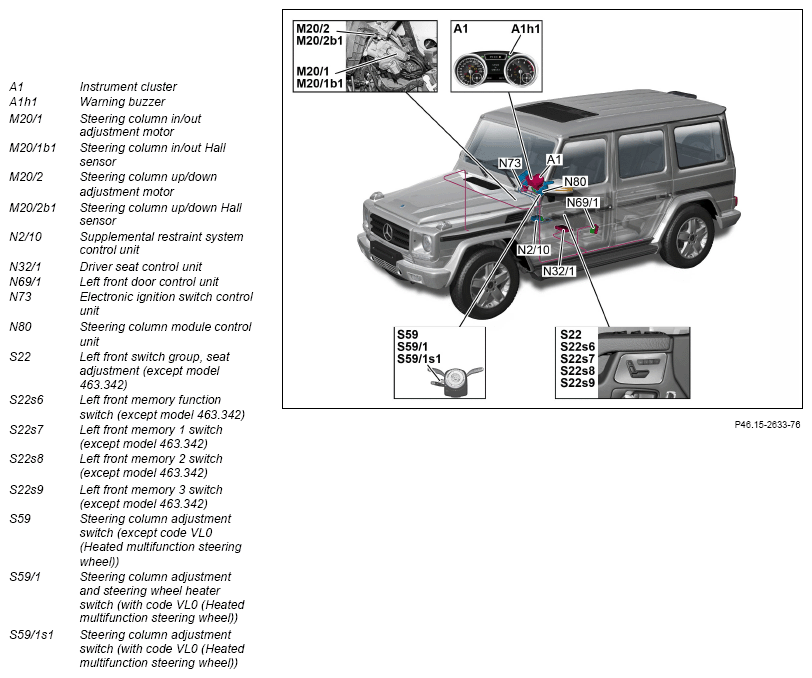

Electrically adjustable steering column, shown on model 463.23 up to 02.04.2018
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Head unit, component description | Model 463 (except 463.342) as of model year 2019 A26/17 | GF82.85-P-3140GW | |
| Component description for Audio/COMAND display | Model 463 (except 463.342) as of model year 2019 A40/8 | GF54.30-P-6150GWM | |
| Component description for Audio/COMAND control panel | Model 463 (except 463.342) as of model year 2019 A40/9 | GF54.21-P-4501GWM | |
| Touchpad, component description | Model 463 (except 463.342) as of model year 2019 A105 | GF54.21-P-4511GW | |
| Multicontour seat pneumatic pump (MCS), component description | Model 463 as of model year 2019 with code PA9 (Active Multicontour Seat package) M40 | GF91.25-P-5205GWM | |
| Supplemental restraint system control unit, component description | Model 463 (except 463.342) as of model year 2019 N2/10 | GF91.60-P-4080GWM | |
| Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N2/10 |
|||
| SAM control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N10 | GF54.21-P-4157GW | |
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231GW | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241GW | |
| Multicontour seat control unit (MCS), component description | Model 463 as of model year 2019 with code PA9 (Active Multicontour Seat package) N32/15, N32/16 | GF91.25-P-5201GWM | |
| Component description for massage function control unit | Model 463 as of model year 2019 with code PA9 (Active Multicontour Seat package) N32/31, N32/32, N32/43, N32/44 | GF91.25-P-5212GWM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for the electronic ignition lock control unit | Model 463 (except 463.342) as of model year 2019 N73 | GF80.57-P-6001GWM | |
| Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N73 | GF80.57-P-6001GW | ||
| Component description for steering column tube module control unit | Model 463 (except 463.342) as of model year 2019 N80 | GF54.21-P-6051GWM | |
| Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N80 | GF54.21-P-6051GW | ||
| Steering wheel electronics control unit, component description | Model 463 (except 463.342) as of model year 2019 N135 | GF82.90-P-4006GWM | |
| Table of contents for function description of electric seats | GF91.29-P-0992GW |
