Component Description For Front Passenger Seat Control Unit - GF91.29-P-5241GW

Model 463

as of model year 2013

The component description for the front passenger seat control unit (N32/2) describes a left-hand drive vehicle. Right-hand drive vehicles are to be observed mirror inverted with regard to the designations of the electric components.

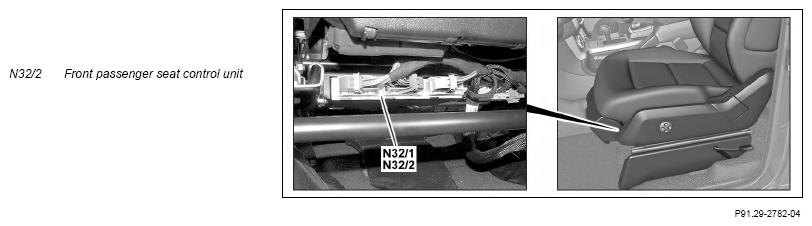

Shown on model 463 as of 03.04.2018 except model 463.342

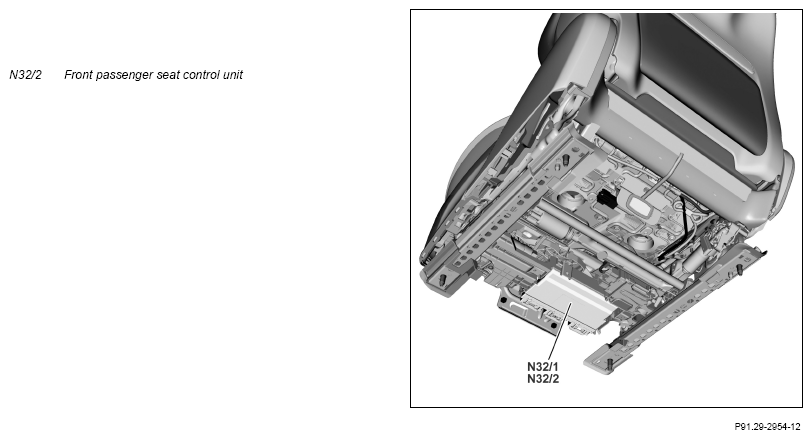

Shown on model 463 up to 02.04.2018

Courtesy of MERCEDES-BENZ USA

Location

The front passenger seat control unit is located at the bottom of the front passenger seat frame.

Tasks

For model 463.342, the front passenger seat control unit has the following tasks:

• Control of the seat heating (with code H10 (Seat heating for driver and front passenger))

Except model 463.342, the front passenger seat control unit has the following tasks:

• Control of the seat adjustment
• Storing/moving into the memory settings for the front passenger seat
• Actuating PRE-SAFE® positioning function for front passenger seat
• Control of the seat climate control

The tasks are subdivided as follows:

• Reading in of sensors and signals
• Evaluation of input factors
• Actuation of components
• Transmitting signals

Reading in of sensors and signals

The input factors are read in via the following connections:

• Direct line
• Interior CAN (CAN B)

Direct line

For model 463 as of 03.04.2018 except model 463.342, the signals of the following sensors are read in via direct lines:

• Seat fore/aft adjustment Hall sensor, front passenger seat (M28/1 b1)
• Head restraint adjustment Hall sensor, front passenger seat (M28/4b1)
• Backrest inclination Hall sensor, front passenger seat (M28/5t>1)
• Seat cushion length adjustment Hall sensor, front passenger seat (M28/8b1)
• Seat inclination adjustment Hall sensor, front passenger seat (M28/9b1)
• Seat height adjustment Hall sensor, front passenger seat (M28/10b1)
• Right front seat seat cushion side bolster heater pad temperature sensor (R13/13b1) (with code PA9 (Active Multicontour Seat Package))
• Right front seat seat backrest side bolster heater pad temperature sensor (R13/14b1) (with code PA9 (Active Multicontour Seat Package))

For model 463 up to 02.04.2018 except model 463.342, the signals of the following sensors are read in via direct lines:

• Seat fore/aft adjustment Hall sensor, front passenger seat
• Seat height adjustment Hall sensor, front passenger seat (M28/2b1)
• Hall sensor inclination adjustment, front passenger seat (M28/3b1)
• Head restraint adjustment Hall sensor, front passenger seat
• Backrest inclination Hall sensor, front passenger seat

Interior CAN

The signals are read in by the front passenger seat control unit over the interior CAN.

The front passenger seat control unit reads in the following signals via interior CAN, among other things:

• Seat adjustment request
• Request for storing/moving to memory position

Evaluation of input factors

The read in input factors are evaluated by the front passenger seat control unit. The seat adjustment motors are actuated via integrated relays.

Actuation of components

For model 463 as of 03.04.2018 except model 463.342, the following component parts are actuated via direct lines:

• Right front seat cushion seat ventilation motors (M18/11) (with code PA9 (Active Multicontour Seat Package))
• Right front seat backrest seat ventilation motors (M18/12) (with code PA9 (Active Multicontour Seat Package))
• Front passenger seat fore/aft adjustment motor (M28/1)
• Front passenger seat head restraint adjustment motor (M28/4)
• Front passenger seat backrest inclination adjustment motor (M28/5)
• Seat cushion length adjustment motor, front passenger seat (M28/8)
• Seat inclination adjustment motor, front passenger seat (M28/9)
• Seat adjustment motor, seat height adjustment, front passenger seat (M28/10)
• Right front seat seat cushion side bolster heater pad (R13/13) (with code PA9 (Active Multicontour Seat Package)) or right front sitting surface heater pad (R13/3) (except code PA9 (Active Multicontour Seat Package))
• Right front seat seat backrest seat side bolster heater pad (R13/14) (with code PA9 (Active Multicontour Seat Package)) or right front seat backrest heater pad (R13/4) (except code PA9 (Active Multicontour Seat Package))

For model 463 up to 02.04.2018 except model 463.342, the following component parts are actuated via direct lines:

• Right front seat cushion seat ventilation motors (with code S50 (Seat ventilation for driver and front passenger seat) or code PA1 (Seat Comfort Package))
• Right front seat backrest seat ventilation motor (with code S50 (Seat ventilation for driver and front passenger seat) or code PA1 (Seat Comfort Package))
• Front passenger seat fore/aft adjustment motor
• Seat adjustment motor, seat height adjustment, front passenger seat (M28/2)
• Front passenger seat inclination adjustment motor (M28/3)
• Front passenger seat head restraint adjustment motor
• Front passenger seat backrest inclination adjustment motor
• Right front seat sitting surface heated cushion
• Right front backrest heated cushion

Model 463 (except 463.342)

as of model year 2013 up to model year 2019

The front passenger seat control unit supplies the front passenger seat lumbar support adjustment control unit (N32/24) with power.

Transmitting signals

The front passenger seat control unit sends signals via the following connections:

• Front passenger seat LIN (LIN B19) (model 463 as of 03.04.2018 except model 463.342)
• Interior CAN

Front passenger seat LIN (model 463 as of 03.04.2018 except model 463.342)

Amongst other things, the front passenger seat control unit transmits the "Switch on seat heater" request via the front passenger seat LIN to the front passenger seat heater control unit (N25/4).

Interior CAN

The front passenger seat control unit sends the following signals via interior CAN, among other things:

• Request for acknowledge tone after storage in memory
• Seat position status
• Seat heater status
• Seat ventilation status (with code S50 (Seat ventilation for driver and front passenger seat) or code PA1 (Seat Comfort Package) or code PA9 (Active Multicontour Seat Package))

Variants

There are no variants for the hardware of the front passenger seat control unit. The country or left-hand drive vehicle/right hand drive vehicle allocation is software coded.

	Wiring diagram of front passenger-side seat control unit	Model 463 (except 463.342) as of model year 2019	PE91.29-P-2105-97ZHA
		Model 463 (except 463.342) as of model year 2013 up to model year 2019	PE91.29-P-2105-97ZGA
	Wiring diagram for front passenger seat control unit	Model 463.342 as of model year 2017	PE91.29-P-2115-97ZBA
