Remove/Install Front Engine Mount - AR22.10-P-4330MNF

Engine 176 in model 463

up to model year 2019

G13656916

Courtesy of MERCEDES-BENZ USA

	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install

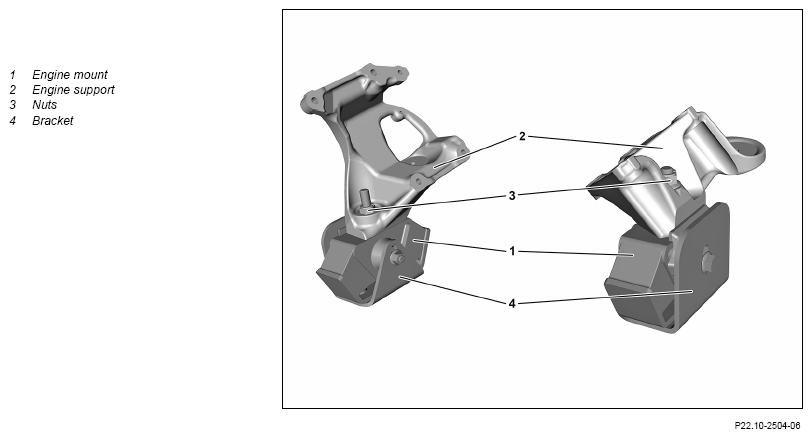

1	Remove front engine supports (2)		AR22.10-P-4320MNF
2	Unscrew nuts (3) for engine mount (1) on engine support (2).	: Replace nuts (3).
		Nut, front engine mount to engine support	*BA22.10-P-1001-01X
3	Detach engine mount (1) from engine supports	Always replace engine mount (1) in pairs. Pay attention to environmental protection regulations for disposal of engine mounts (1). Dispose engine mounts (1) into mixed scrap.
4	Detach bracket (4) of engine mount (1)	Nut/bolt, front engine mount to bracket	*BA22.10-P-1002-01X
5	Install in the reverse order

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 176 in model 463 up to model year 2019 Engine 279 in model 463
BA22.10-P-1001-01X	Nut, front engine mount to engine support	M12	Nm	107

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 176 in model 463 up to model year 2019 Engine 279 in model 463
BA22.10-P-1002-01X	Nut/bolt, front engine mount to bracket	M10	Nm	70
