Remove/Install Charge Air Distributor - AR09.41-P-8683MNF
Engine 176 in model 463
up to model year 2019
MODIFICATION NOTES
| 11.09.2015 | Screw/bolt, charge air distributor to cylinder head | BA09.41-P-1004-01X |
| Remove/install | |||
| 1 | Remove left wheel well paneling | For removal of the left charge air distributor (1). Engine 176 in model 463 as of model year 2016 up to model year 2019 |
AR62.20-P-1222GW |
| 2 |
Detach right complete wheel | For removal of the right charge air distributor (2). | AP40.10-P-4050G |
| 3 | Remove right wheel housing paneling | For removal of the right charge air distributor (2). | |

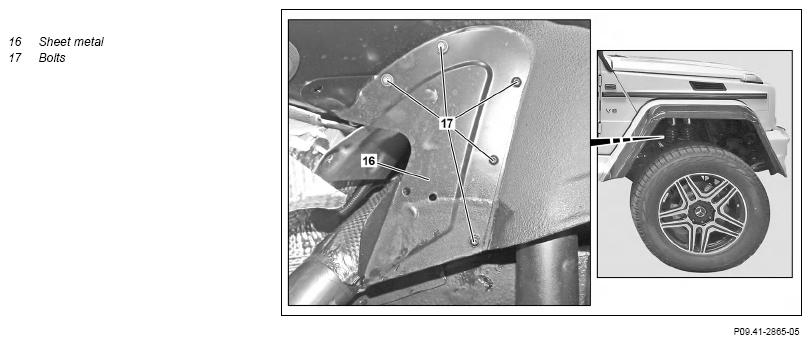

| 4 | Remove screw/bolts (17) and take off plate (16) | For removal of the right charge air distributor (2). | |
| 5 | Detach lower steering shaft on upper bracket | For removal of the left charge air distributor (1). Engine 176 in model 463 as of model year 2013 up to model year 2019 |
AR46.10-P-0520GW |
| 6 | Detach lower steering shaft on lower ball joint and place to one side | For removal of the left charge air distributor (1). Engine 176 in model 463 as of model year 2013 up to model year 2019 |
AR46.10-P-0520GW |
| 7 | Detach refrigerant line at A/C compressor and place to one side | For removal of the left charge air distributor (1). Engine 176 in model 463 as of model year 2016 up to model year 2019 |
AR83.55-P-5310GW |

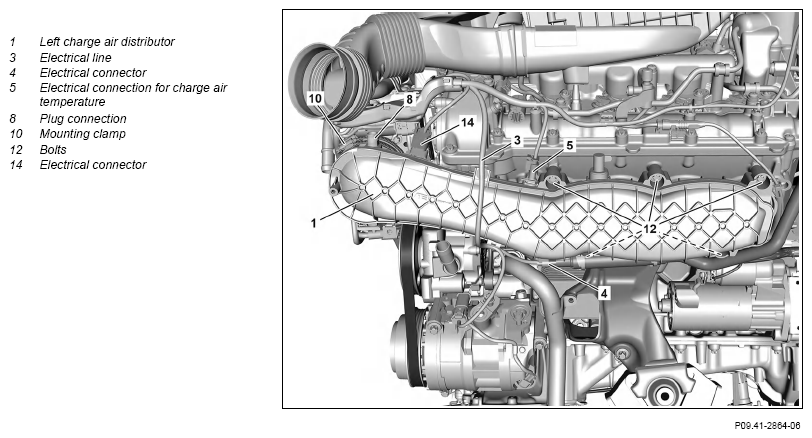

| 8 | Unclip electrical line (3) on left charge air distributor (1) | For removal of the left charge air distributor (1). | |
| 9 | Unclip electrical connection (4) on left charge air distributor (1) | For removal of the left charge air distributor (1). | |
| 10 | Disconnect charge air temperature electrical connection (5) on left charge air distributor (1) or charge air temperature electrical connection (6) on left charge air distributor (2) | ||

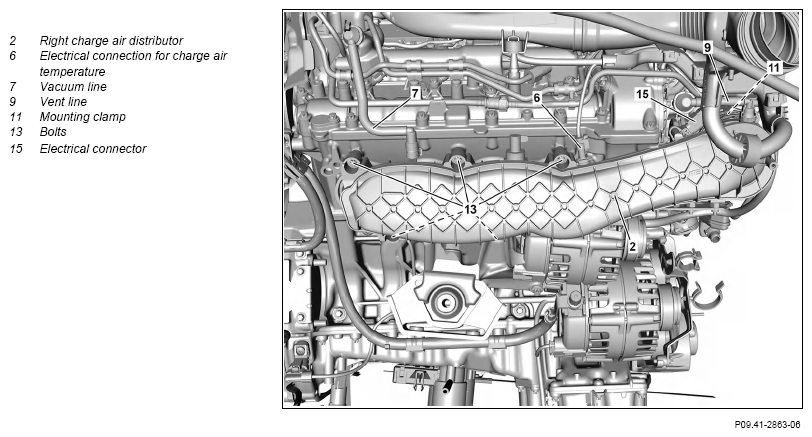

| 11 | Detach vacuum line (7) from right charge air distributor (2) | For removal of the right charge air distributor (2). | |
| 12 | Detach vent line at plug connection (8) at left charge air distributor (1) | For removal of the left charge air distributor (1). | |
| 13 | Detach vent line (9) at right charge air distributor (2) | For removal of the right charge air distributor (2). | |
| 14 | Open mounting clamp (10) on left charge air distributor (1) or mounting clamp (11) on right charge air distributor (2) | *BA09.41-P-1002-01X | |
| 15 | Remove screw/bolts (12) on left charge air distributor (1) or screw/bolts (13) on right charge air distributor (2) | AR09.41-P-8683-01MNA | |
| *BA09.41-P-1004-01X | |||
| 16 | Remove left charge air distributor (1) from left cylinder head or right charge air distributor (2) from right cylinder head | ||
| 17 | Disconnect charge air temperature electrical connection (14) on left charge air distributor (1) or charge air temperature electrical connection (15) on right charge air distributor (2) | ||
| 18 | Remove left charge air distributor (1) or right charge air distributor (2) to the front | ||
| 19 | Install in the reverse order |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1002-01X | Bolt, clamp for charge air hose to charge-air distributor | Nm | 6 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1004-01X | Bolt, charge air distributor to cylinder head | Nm | 13 |
