Remove/Install Oil Pump - AR18.10-P-6020MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

Shown on ENGINE 177

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove oil pan.	Engine 176 in model 463 up to model year 2019	AR01.45-P-7500MNF
		Engine 178 in model 190	AR01.45-P-7500MNB
		Engine 177 in model 205	AR01.45-P-7500MNA
2	Release electrical connector (1) and disconnect.
3	Remove connection fitting.	Engine 178 in model 190
	Specified engine oils for Cars, Vans (service) - Overview		BB00.40-P-0223-02A
		: Install new sealing ring and wet with engine oil.
		Bolt, connection fitting to oil pump	*BA18.10-P-1008-01V
		Assembly tool	Fig 1

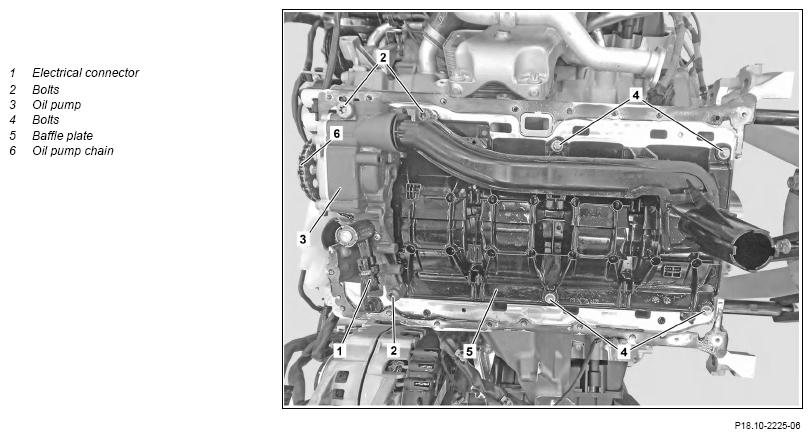

4	Remove screws (2) in reverse numerical order to tightening procedure.	Tightening procedure	AR18.10-P-6020-01MNA
		: Tighten screws (2) in numerical order of tightening procedure.
		Bolt, oil pump to crankcase	*BA18.10-P-1001-01V
5	Remove screws (4) and remove baffle plate (5).	Engine 176 in model 463 up to model year 2019 Engine 177 in model 205
	Specified engine oils for Cars, Vans (service) - Overview		BB00.40-P-0223-02A
		: Install new sealing ring and wet with engine oil.
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205Screw, oil deflector with oil pipe to crankcase/oil pan	*BA18.10-P-1007-01V
		Assembly tool	Fig 1
6	Press together clamping device of the oil pump chain (6).
7	Tilt oil pump (3), remove oil pump chain (6) from oil pump gear, and remove oil pump (3) in downward direction.
	Specified engine oils for Cars, Vans (service) -Overview		BB00.40-P-0223-02A
		: Fill oil pump (3) with engine oil before installation so that oil is delivered at the initial startup.
8	Remove clamping device of the oil pump chain (6).	If oil pump (3) is replaced.
			AR18.10-P-2000MNA
	Check
9	Check tensioning device of the oil pump chain (6) for damage.	If damage is present: ↓ Replace tensioning device of the oil pump chain (6).
			AR18.10-P-2000MNA
10	Check oil pump chain (6), oil pump gear, and gearwheel of oil pump drive on crankshaft for damage.	If damage is present: ↓ Replace oil pump chain (6), oil pump (3), and crankshaft.
		Oil pump chain	AR18.10-P-2145MNA
		Crankshaft	AR03.20-P-4351MNA
11	Install in the reverse order.
	Concluding tasks
	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Perform engine test run. While doing so, check engine for proper operation and leak tightness

Fig 1: Identifying Assembly Tool (000 589 93 63 00)

Courtesy of MERCEDES-BENZ USA
