Remove/Install The Tensioning Device For The Oil Pump Chain - AR18.10-P-2000MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 178 n model 190

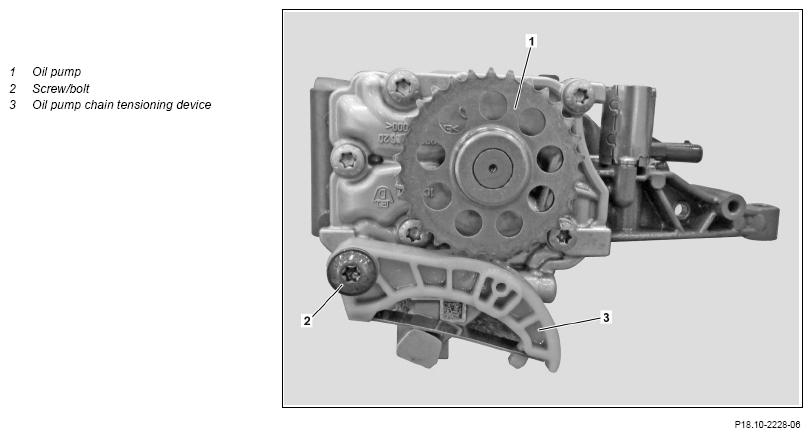

Fig 1: Tensioning Device For The Oil Pump Chain Components Location - Engine 176 In Model 463 Up To Model Year 2019
| Remove/install | |||
| 1 | Remove oil pump (1) | AR18.10-P-6020MNA | |
| 2 | Remove screw/bolt (2) | *BA18.10-P-1003-01V | |
| 3 | Remove clamping device of oil pump chain (3) | ||
| Check | |||
| 4 | Check clamping device for oil pump chain (3) for damage | for damage ↓ Remove clamping device of oil pump chain (3) |
|
| 5 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
OIL PUMP
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA18.10-P-1003-01V | Fit bolt, chain tensioning bracket to oil pump | Nm | 9 | 9 |
OIL PUMP
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA18.10-P-1003-01V | Fit bolt, chain tensioning bracket to oil pump | Nm | 9 |
