Remove/Install Low-Temperature Circuit Cooler - AR09.41-P-6936XGA
Engine 176, 177 in model 463
as of model year 2019

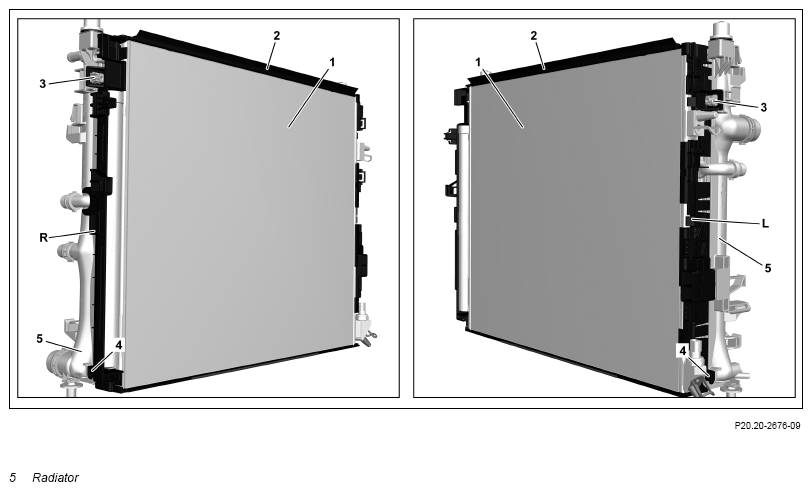

| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove cooling module. | Engine 176 in model 463 as of model year 2019 | AR20.20-P-4000XGA |
| Engine 177 in model 463 as of model year 2019 | AR20.20-P-4000XGC | ||
| 2 | Remove fan unit from radiator (5). | Engine 176 in model 463 as of model year 2019 | AR20.40-P-5050XGA |
| Engine 177 in model 463 as of model year 2019 | AR20.40-P-5050XGC | ||
| 3 | Remove radiator (5) from radiator trim frame (2). | AR20.20-P-3865XGA | |

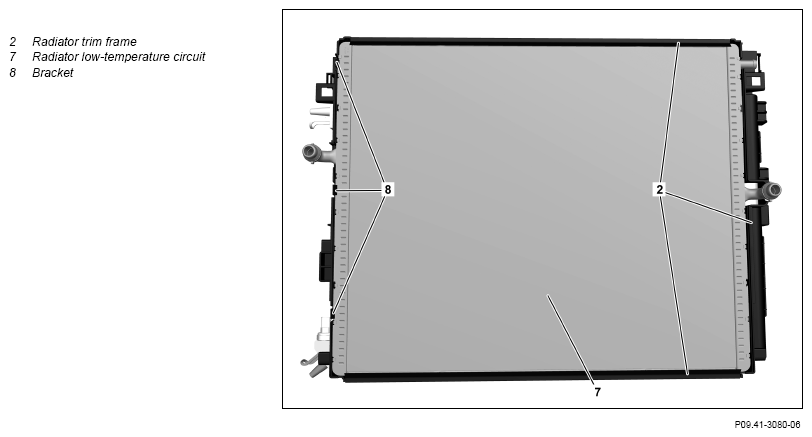

| 4 | Unclip radiator low-temperature circuit (7) from brackets (8). | ||
| 5 | Remove radiator low-temperature circuit (7) from radiator trim frame (2). | ||
| 6 | Install in the reverse order. |
