Remove/Install Fan Unit - AR20.40-P-5050XGC
Engine 177 in model 463
as of model year 2019
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove upper engine cover | AR01.10-P-2405XGC | |
| 3 | Remove cold air intake. | AR09.00-P-0002XGC | |
| 4 | Remove left and right air intake line to left and right air filter housing. | ||

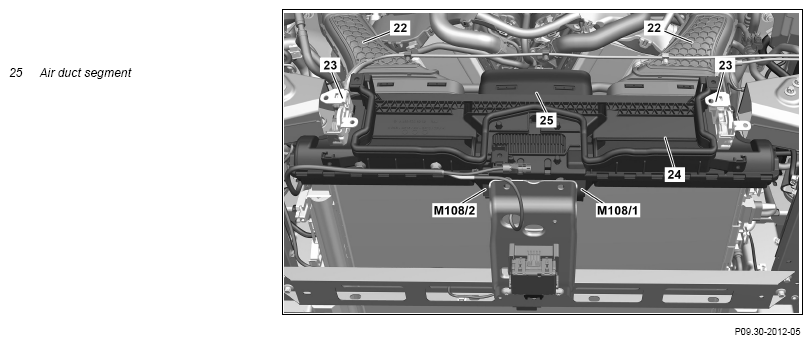

| 5 | Remove center air duct segment (25). | ||

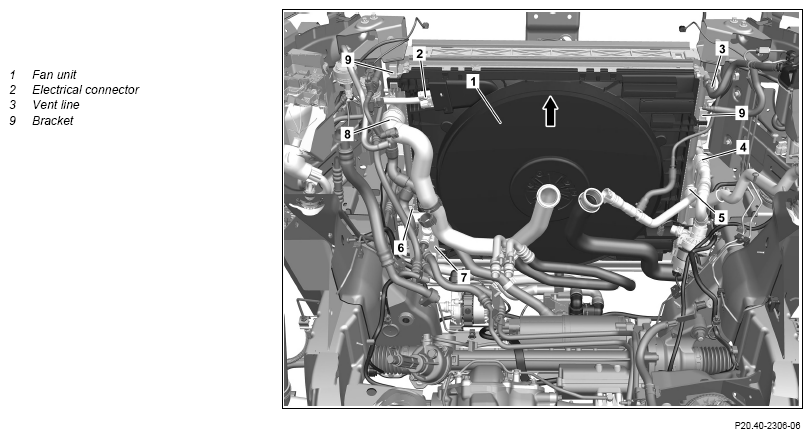

| 6 | Release and disconnect electrical connector (2) at fan unit (1). | ||
| 7 | Remove bleed line (3) at cooler and seal openings with suitable stop plugs. | AR20.20-P-7441-01RQ | |
| Fig 2 | |||
| 8 | Release brackets (9) and detach fan unit (1) from cooler and remove in upward direction. | ||
| 9 |
Attach protective plate to cooler. | In the case of subsequent work in engine compartment. | WF58.50-P-0110-01A |
| 10 | Install in the reverse order. | ||
| 11 |
Read out and delete fault memory. | AD00.00-P-2000-04B |
