Check Body Gap Dimensions - Ar60.00-P-0900-01XG

Model 463

as of model year 2019

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1001-01XG	Hood to radiator grille	Hood to radiator grille	mm	7 (±1)
BE60.00-P-1001-01XG	Hood to radiator grille	For picture,	see	AR60.00-P-0900-01XG

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1002-01XG	Engine hood to fender	Engine hood to fender	mm	7 (±1, 5)
BE60.00-P-1002-01XG	Engine hood to fender	For picture,	see	see AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1003-01XG	Hood to windshield frame segment	Hood to windshield frame segment	mm	4, 5 (±0, 5)
BE60.00-P-1003-01XG	Hood to windshield frame segment	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1004-01XG	Fender to radiator grille	Fender to radiator grille	mm	1, 5 (±0, 5)
BE60.00-P-1004-01XG	Fender to radiator grille	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1005-01XG	Fender at front to fender flare	Fender at front to fender flare	mm	1 (±0, 5)
BE60.00-P-1005-01XG	Fender at front to fender flare	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1006-01XG	Front fender to bumper	Front fender to bumper	mm	4 (±1)
BE60.00-P-1006-01XG	Front fender to bumper	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1007-01XG	Fender at front to side wall	Fender at front to side wall	mm	4, 5 (±1)
BE60.00-P-1007-01XG	Fender at front to side wall	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1008-01XG	Lamp unit to radiator grille	Lamp unit to radiator grille	mm	3 (±1)
BE60.00-P-1008-01XG	Lamp unit to radiator grille	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1009-01XG	Fender flare to front bumper	Fender flare to front bumper	mm	5 (±1)
BE60.00-P-1009-01XG	Fender flare to front bumper	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1010-01XG	Fender flare to side wall at front	Fender flare to side wall at front	mm	1 (±0, 5)
BE60.00-P-1010-01XG	Fender flare to side wall at front	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1011-01XG	Front fender flare to longitudinal member panel	Front fender flare to longitudinal member panel	mm	5, 5 (±1, 5)
BE60.00-P-1011-01XG	Front fender flare to longitudinal member panel	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1012-01XG	Rear fender flare to longitudinal member panel	Rear fender flare to longitudinal member panel	mm	5, 5 (±1, 5)
BE60.00-P-1012-01XG	Rear fender flare to longitudinal member panel	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1013-01XG	Longitudinal member panel to side wall	Longitudinal member panel to side wall	mm	2 (±1)
BE60.00-P-1013-01XG	Longitudinal member panel to side wall	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1014-01XG	Bumper to rear-end center section (with open rear-end door)	Bumper to rear-end center section (with open rear-end door)	mm	1 (±0, 5)
BE60.00-P-1014-01XG	Bumper to rear-end center section (with open rear-end door)	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1015-01XG	Bumper to side wall at rear	Bumper to side wall at rear	mm	0, 5 (±0, 5)
BE60.00-P-1015-01XG	Bumper to side wall at rear	For picture,	see	see AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1016-01XG	Taillamp to side wall	Taillamp to side wall	mm	1 (±0, 5)
BE60.00-P-1016-01XG	Taillamp to side wall	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1017-01XG	Fender flare to side wall at rear	Fender flare to side wall at rear	mm	1 (±0, 5)
BE60.00-P-1017-01XG	Fender flare to side wall at rear	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1018-01XG	Fender flare to rear bumper	Fender flare to rear bumper	mm	5 (±1)
BE60.00-P-1018-01XG	Fender flare to rear bumper	For picture,	see	AR60.00-P-0900-01 XG Check Body Gap Dimensions - AR60.00-P-0900-01XG .

FRONT DOOR INSPECTION AND ADJUSTMENT DIMENSIONS

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.10-P-1002-01B	Front door to front side wall	Dimension "D"	mm	-	5 (±1)

FRONT DOOR INSPECTION AND ADJUSTMENT DIMENSIONS

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.10-P-1004-01B	Front door to bottom sidewall	Dimension "F"	mm	-	5 (±1)

FRONT DOOR INSPECTION AND ADJUSTMENT DIMENSIONS

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.10-P-1003-01B	Front door to upper side wall	Dimension "E"	mm	-	4, 5 (± 1)

FRONT DOOR INSPECTION AND ADJUSTMENT DIMENSIONS

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.10-P-1005-01B	Front door to rear sidewall	Dimension "G"	mm	-	5 (±1)

TEST VALUES AND ADJUSTING VALUES - REAR DOOR

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.12-P-1002-01A	Rear door to front side wall	Dimension "H"	mm	-	5 (±1)

TEST VALUES AND ADJUSTING VALUES - REAR DOOR

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.12-P-1003-01A	Rear door to top side wall	Dimension "I"	mm	-	4, 5 (±1)

TEST VALUES AND ADJUSTING VALUES - REAR DOOR

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.12-P-1004-01A	Rear door to bottom side wall	Dimension "J"	mm	-	5 (±1)

TEST VALUES AND ADJUSTING VALUES - REAR DOOR

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.12-P-1005-01A	Rear door to rear side wall	Dimension "K"	mm	-	5 (±1)

TEST VALUES - REAR-END DOOR

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.20-P-1002-01A	Gap dimension	Rear-end door to roof Dimension "A" paneling	mm	-	5 (±1)

TEST VALUES - REAR-END DOOR

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.20-P-1003-01A	Gap dimension	Rear-end door to D-Dimension "B" pillar	mm	-	4, 5 (±1)

TEST VALUES - REAR-END DOOR

Number	Designation			Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BE72.20-P-1004-01A	Gap dimension	Rear-end door to Dimension "C" bumper at rear	mm	-	5 (±1)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

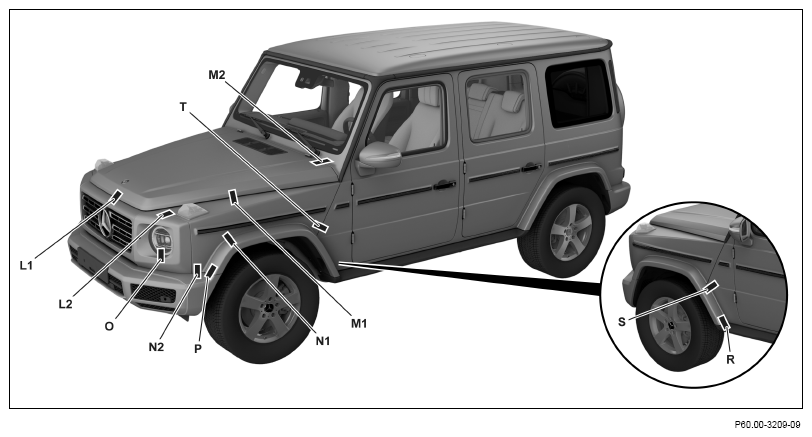

Front gap dimensions

Courtesy of MERCEDES-BENZ USA

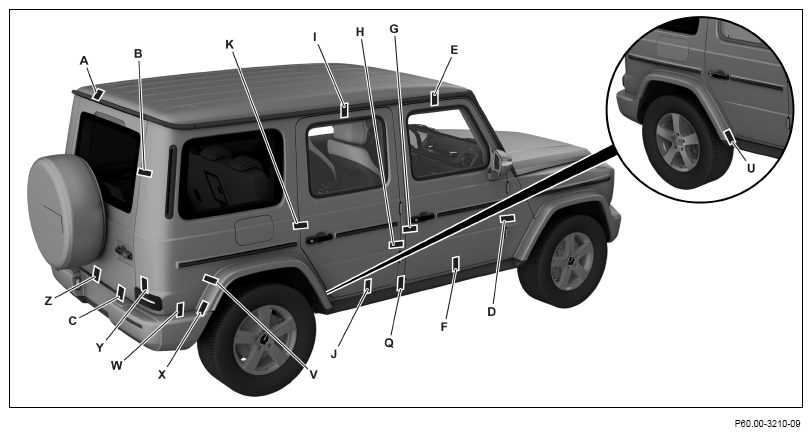

Rear and side gap dimensions

Check gap dimensions with feeler gauge as per sketches.
Gap dimensions must be adjusted as per the drawings. The gap should not run wedge-shaped or be too narrow at points. Deviations from the parallel air gap may be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
