Remove/Install Rear-Axle Brake Caliper - AR42.10-P-0080XG
Model 463
as of model year 2019
Modification notes
| 17.05.2019 | Bolt, brake hose to floating brake caliper on front axle/rear axle | Model 463 as of model year 2019 | BA42.10-P-1012-04B |
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Remove | |||
| 1 | Move brake pads of rear axle into assembly position. | AR42.10-P-1710-01LWE | |
Do not depress the service brake while "Move to assembly position" is shown. Otherwise the spindle in the brake caliper (9) will be damaged. |
|||
| 2 | Open hood. | AR88.40-P-1000XG | |
| 3 | Clean area around cap of brake fluid expansion reservoir. | Assembly cleaner | *BR00.45-Z-1028-04A |
| 4 | Unscrew cap of brake fluid expansion reservoir and extract some brake fluid. | ||
| 5 | Detach left or the right rear wheel. | AR40.10-P-1102XG | |

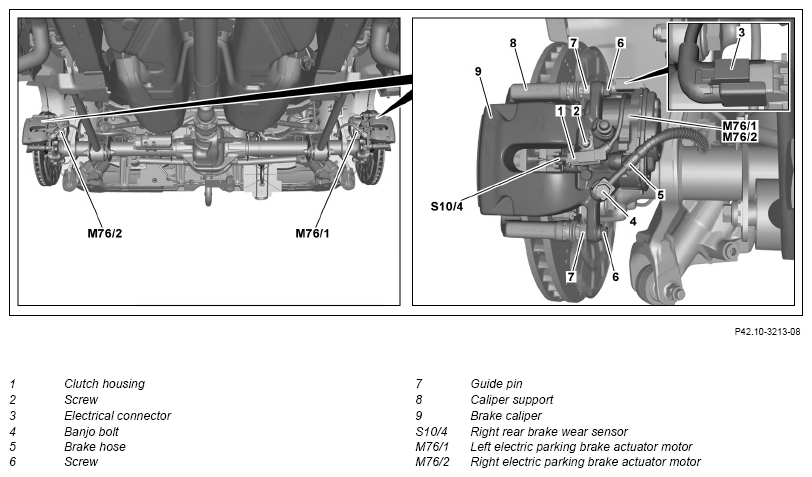

| 6 | Disconnect right rear brake pad wear sensor (S10/4) from coupling housing (1). | When removing the brake caliper (9) on the right side of the vehicle. | |
| 7 | Remove screw (2) on coupling housing (1). | When removing the brake caliper (9) on the right side of the vehicle. | |
| 8 | Remove coupling housing (1) together with electrical line and place to one side. | When removing the brake caliper (9) on the right side of the vehicle. | |
| 9 | Disconnect electrical connector (3) at left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2). | ||
| 10 | Unscrew banjo bolt (4) and hang brake hose (5) to one side. | When replacing the brake caliper (9). | |
Seal openings in brake caliper (9) and brake hose (5) immediately. Otherwise escaping brake fluid will cause damage to adjacent components and it will not be possible to bleed the brake caliper (9). |
|||
| Fig 2 | |||
| 11 | Remove screws (6) from guide pins (7). | ||
| 12 | Remove brake caliper (9) from brake caliper support (8). | When replacing the brake caliper (9). | |
| 13 | Remove brake caliper (9) from brake carrier (8) and secure free of stress in the wheel arch. | With the brake hose connected. | |
| 14 | Detach left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2) from brake caliper (9). | When replacing the brake caliper (9). | AR42.20-P-0600XG |
| Check | |||
| 15 | Check break pads for wear and condition. | ||
| AP42.10-P-4252G | |||
| If wear or damage is present. ↓ Replace brake pads as a complete set. |
|||
| AR42.10-P-1710XG | |||
| 16 | Check condition of brake disc and measure degree of wear. | ||
| If wear or damage is present. ↓ Replace brake discs. |
AP42.10-P-4256EW | ||
| AR42.10-P-0220XG | |||
| 17 | Check brake caliper (9) and dust boot on brake piston for leaktightness and damage. | If leaks or damage is present, ↓ Replace brake caliper (9). |
|
| 18 | Check boots and guide pins (7) for damage and ease of movement. | If there is excessive resistance or damage, ↓ Replace guide pins (7). |
|
| 19 | Check brake caliper support (8) for damage and condition. | If wear or damage is present. ↓ Replace brake caliper support (8). |
|
| AR42.10-P-0220XG | |||
| 20 | Check brake hose (5) for leaktightness and damage. | If leaks or damage is present, ↓ Replace brake hose (5). |
|
| AR42.10-P-0013XG | |||
| Clean | |||
| 21 | Clean contact surfaces of brake pads on brake caliper (9). | Do not damage the dust boot on the brake piston or the boots. Do not use sharp-edged or pointed objects. Otherwise replace the brake caliper (9). |
|
| Install | |||
| 22 | Attach left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2) to brake caliper (9). | When replacing the brake caliper (9). | AR42.20-P-0600XG |
| 23 | Attach brake caliper (9) to brake caliper support (8). | Do not drain the new brake caliper (9) as it is pre-filled with brake fluid. Otherwise it will not be possible to bleed the brake caliper (9). |
|
| 24 | Tighten screws (6) on guide pins (7). | *BA42.10-P-1002-17B | |
| 25 | Screw brake hose (5) onto brake caliper (9) with banjo bolt (4). | When replacing the brake caliper (9). | |
| *BA42.10-P-1012-04B | |||
| 26 | Connect electrical connector (3) at left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2). | ||
| 27 | Attach coupling housing (1) together with electrical line to brake caliper (9). | When removing the brake caliper (9) on the right side of the vehicle. | |
| 28 | Tighten screw (2) on coupling housing (1). | When removing the brake caliper (9) on the right side of the vehicle. | |
| *BA42.10-P-1004-17B | |||
| 29 | Connect right rear brake pad wear sensor (S10/4) to coupling housing (1). | When removing the brake caliper (9) on the right side of the vehicle. | |
| 30 | Attach left or the right rear wheel. | AR40.10-P-1102XG | |
| Initial startup | |||
| 31 | Bleed brake system. | When replacing the brake caliper (9). | |
| AR42.10-P-0010XG | |||
| 32 | Check and correct brake fluid level in expansion reservoir. | When replacing the brake caliper (9). | |
| AP42.10-P-4210GA | |||
| 33 | Perform brake test. | ||
| AP42.00-P-4290BA |
REAR AXLE FLOATING CALIPER
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA42.10-P-1002-17B | Bolt, pilot bushing/guide pin to brake caliper support | Nm | 35 |
REAR AXLE FLOATING CALIPER
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA42.10-P-1004-17B | Self-locking bolt, brake wear contact sensor to floating caliper | Nm | 8 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA42.10-P-1012-04B | Bolt, brake hose to floating brake caliper on front axle/rear axle | Nm | 42 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
