Remove/Install Tilting/Sliding Roof Frame - AR77.20-P-3000XG

Model 463 as of model year 2019

Courtesy of MERCEDES-BENZ USA

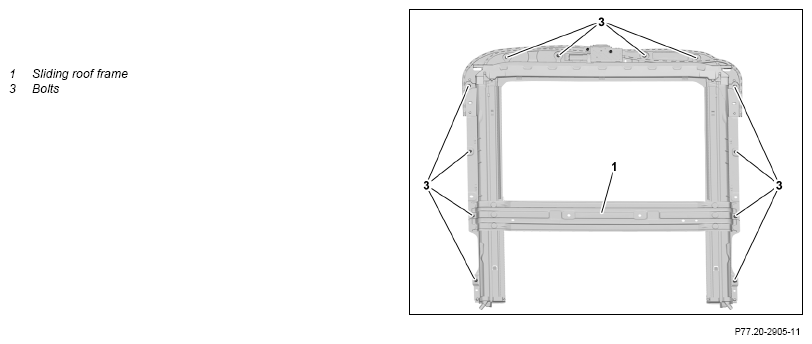

Fig 1: Tilting/Sliding Roof Frame Components Location - Model 463 as of model year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove water drain rails.	When replacing sliding roof frame (1) or when removing tilt brackets.	AR77.20-P-1997XG
2	Remove wind deflector.	When replacing sliding roof frame (1).	AR77.20-P-2500XG
3	Remove lining at sliding roof.	When replacing sliding roof frame (1) or when removing tilt brackets.	AR77.20-P-0500XG
4	Remove sliding sunroof control module.	When replacing sliding roof frame (1) or when removing tilt brackets.	AR77.20-P-3010XG
5	Remove sliding sunroof.	When replacing sliding roof frame (1) or when removing tilt brackets.	AR77.20-P-2852XG
6	Lower roof lining.		AR68.30-P-4300XG

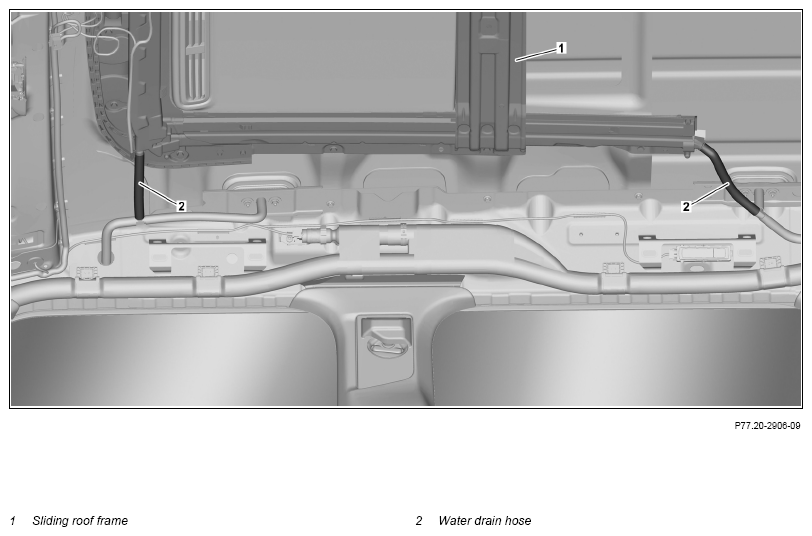

7	Remove water drain hoses (2) on left and right of sliding sunroof frame (1).
8	Remove screws (3).	Screws (3) remain on sliding sunroof frame (1).
9	Remove sliding sunroof frame (1) through rear-end door from vehicle.	Cover center console. Otherwise damage will occur. Helper required.
10	Install in reverse order.
