Remove/Install Glass Roof On Tilting/Sliding Roof - AR77.20-P-2852XG

Model 463 as of model year 2019

Courtesy of MERCEDES-BENZ USA

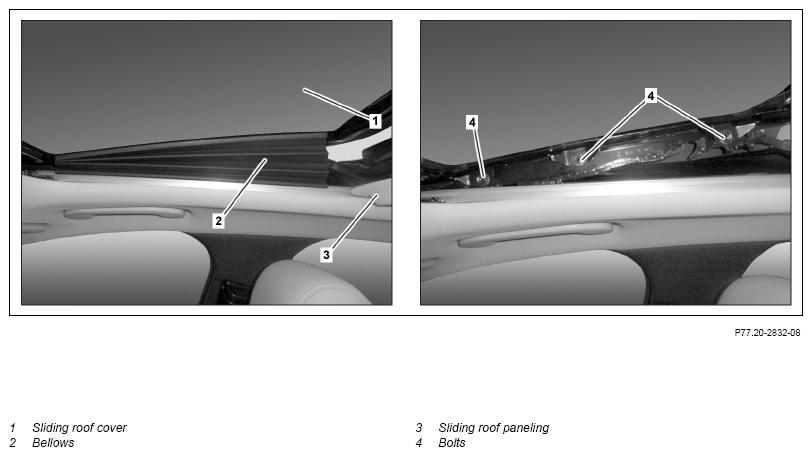

Shown on right side of vehicle

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Move sliding roof panel (1) to tilt position.
2	Open sliding sunroof trim (3).
3	Remove boot (2) on left and right.	Extend boot (2) first at the bottom and then at the top. Otherwise the boot (2) will be damaged. Install boot (2) on left and right only after adjusting the sliding roof panel (1).
4	Remove screws (4) on left and right.	Tighten screws (4) on left and right only after adjusting the sliding roof panel (1).
5	Remove sliding roof panel (1).	Helper required.
6	Install in reverse order.
	Adjust
7	Adjust sliding roof panel (1).		AR77.20-P-1100XG
