Remove/Install Paneling On Tilting/Sliding Roof - AR77.20-P-0500XG

Model 463 as of model year 2019

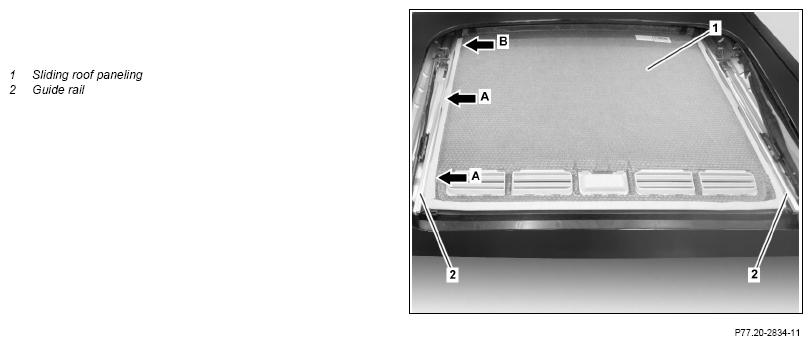

Fig 1: Paneling On Tilting/Sliding Roof Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove tilting/sliding roof panel.		AR77.20-P-2852XG
2	Remove water drain rails for sliding sunroof.		AR77.20-P-1997XG
3	Move sliding roof lining (1) forwards.
4	Arch sliding roof lining (1) upwards and remove on one side with guide lugs (arrows A) from guide rail (2).	Do not arch sliding roof lining (1) too much. Otherwise damage will occur.
5	Move sliding roof lining (1) further forward and remove guide lug (arrow B) from guide rail (2).
6	Move sliding roof lining (1) at other side out of guide rail (2) and remove upwards.
7	Install in reverse order.
