Remove/Install Water Drain Rail For Sliding Roof - AR77.20-P-1997XG
Model 463 As Of Model Year 2019
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove tilting/sliding roof panel at sliding sunroof. | AR77.20-P-2852XG | |

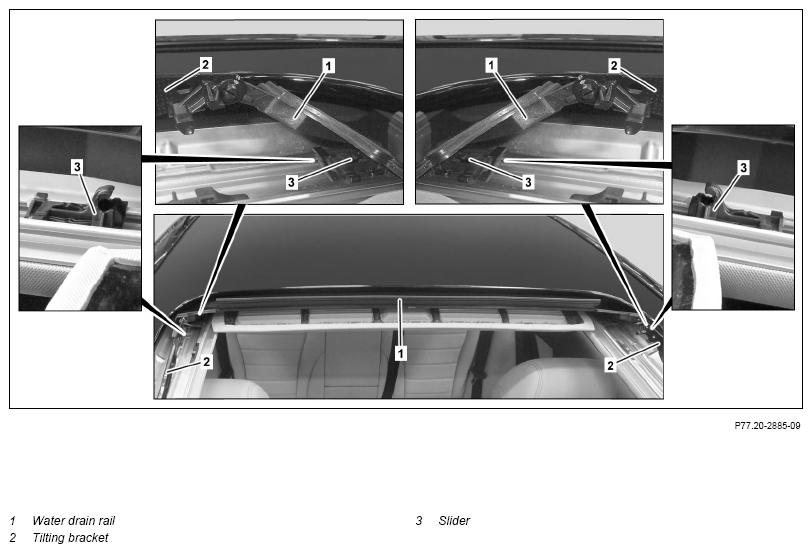

| 2 | Remove water drain rails (1) from tilting brackets (2) on left and right. | ||
| 3 | Remove water drain rails (1) from sliders (3) on left and right. | ||
| 4 | Check sliders (3) on the right and left for damage. | If a problem arises ↓ Remove sliding sunroof frame and replace both sliders (3). |
AR77.20-P-3000XG |
| 5 | Install in reverse order. |
