Adjust Tilting/Sliding Roof Panel - AR77.20-P-1100GW
Model 463 (except 463.202) as of model year 2013 up to model year 2019
| Remove | |||
| 1 | Remove trim from tilting/sliding roof | AR77.20-P-0500GW | |
| 2 | Close tilting/sliding roof | ||
| Adjust | |||
| 3 | Adjust slide shoes at tilting/sliding roof | Model 463 (except 463.202) as of model year 2013 up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof) | AR77.20-P-1100-01A |
| 4 | Close tilting/sliding roof | ||

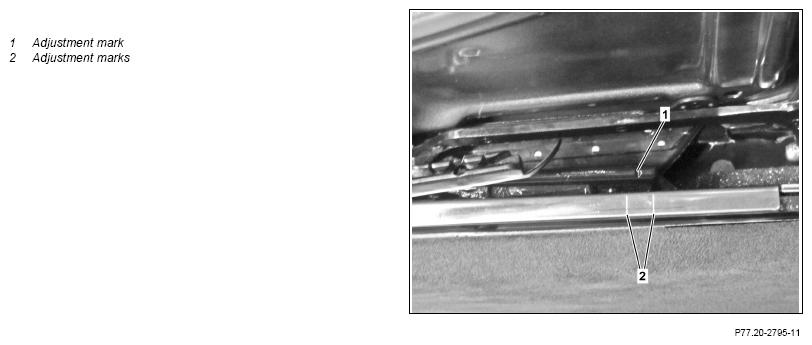

| 5 | Check that adjustment marks (1, 2) at slide angle on left and right match | ||
| 6 | Check that adjustment marks (1, 2) at slide angle on left and right match | Model 463 (except 463.202) as of model year 2013 up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof) | AR77.20-P-1100-03A |
↓ Height setting |
*BE77.20-P-1001-01B | ||
| 7 | Close tilting/sliding roof | ||
| 8 | Check dimension between roof outer skin and tilting/sliding roof panel at rear | Model 463 (except 463.202) as of model year 2013 up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof) | AR77.20-P-1100-04A |
| Close tilting/sliding roof | WF58.50-P-7720-01A | ||
↓ Height setting In case of deviation from test value. |
*BE77.20-P-1001-01B | ||
| ↓ Perform fine adjustment of tilting/sliding roof. Model 463 (except 463.202) as of model year 2013 up to model year 2019 with code D27 (Electric tilting/sliding glass sunroof) |
AR77.20-P-1100-02A | ||
| Install | |||
| 9 | Install trim on tilting/sliding roof | AR77.20-P-0500GW | |
| 10 | Install left rear pillar panel | AR68.30-P-4505GW |
TEST VALUES FOR TILTING/SLIDING ROOF
| Number | Designation | Model 463 up to model year 2019 | ||
|---|---|---|---|---|
| BE77.20-P-1001-01B | Height setting | Front: Deeper than outer skin of roof | mm | 0...1 |
| Rear: Higher than outer skin of roof | mm | 0...1 | ||
