Replace CROSSMEMBER Under Engine - Ar62.30-P-1310XG
Model 463
as of model year 2019
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| General information on body repair | AH60.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with spark protection blankets. | ||
| 3 | Set up straightening bench with straightening bench crossmembers and straightening set. | ||
| 000 588 01 23 00 Body straightening system | WS60.00-P-0023K | ||
| 4 | Place vehicle on straightening bench and fasten. | ||

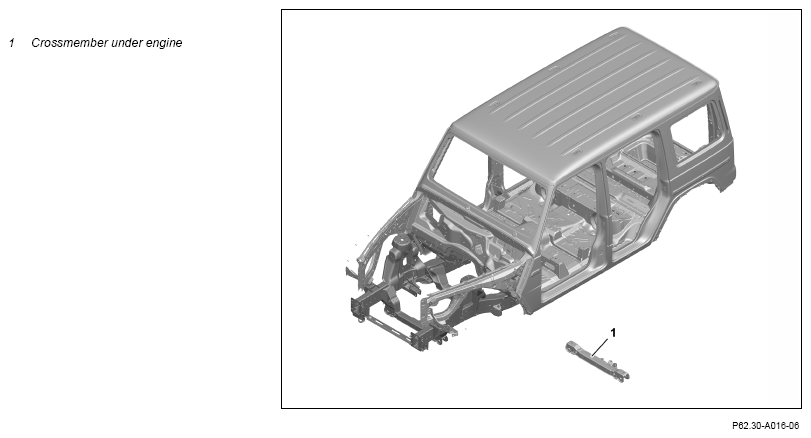

| 5 | Remove crossmember under engine (1). | AR62.30-P-1310-01XG | |
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-N-0005-01A | ||
| 6 | Prepare crossmember under engine (1). | AR62.30-P-1310-02XG | |
| 7 | Install crossmember under engine (1). | AR62.30-P-1310-03XG | |
| 000 588 01 23 00 Body straightening system | WS60.00-P-0023K | ||
| 8 | Release vehicle from straightening bench, lift and remove straightening bench. | ||
| 9 | Clean weld joints and sheet metal flange. | ||
| 10 | Remove spark protection blankets. | ||
| 11 | Clean repair area. | ||
| 12 | Prime repair areas with a primer filler. Notes on paintwork repairs |
https://xentryportal.i.daimler.com |
AH98.00-P-9408-02A |
| 13 | Seal seam after repair. | AR97.10-P-4000XG | |
| 14 | Paint repair areas and adjacent surfaces. Notes on paintwork repairs |
https://xentryportal.i.daimler.com |
AH98.00-P-9408-02A |
| 15 | Supplement cavity preservation | AR97.20-P-1500XG | |
| 16 | Reinstall detachable parts in area of repair point. |
