Cut Off CROSSMEMBER Under Engine - Ar62.30-P-1310-01XG

Model 463

as of model year 2019

The higher-level service information as well as the safety information must be observed.

Courtesy of MERCEDES-BENZ USA

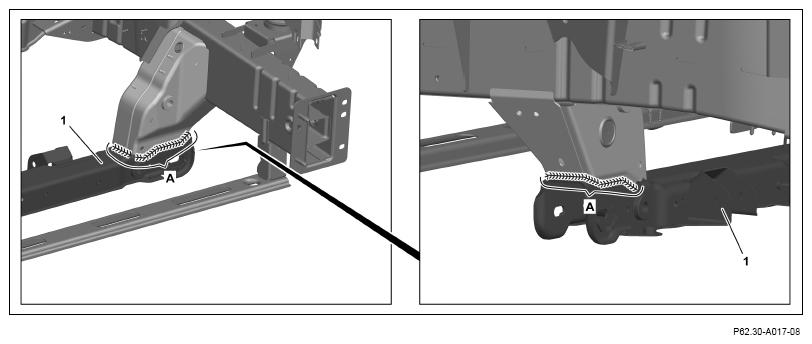

Shown on left side of vehicle

1. Expose inert gas welds on the left and right side of the vehicle on the crossmember under the engine (1) and cut out (areas A).
2. Remove crossmember under the engine (1).

   Courtesy of MERCEDES-BENZ USA

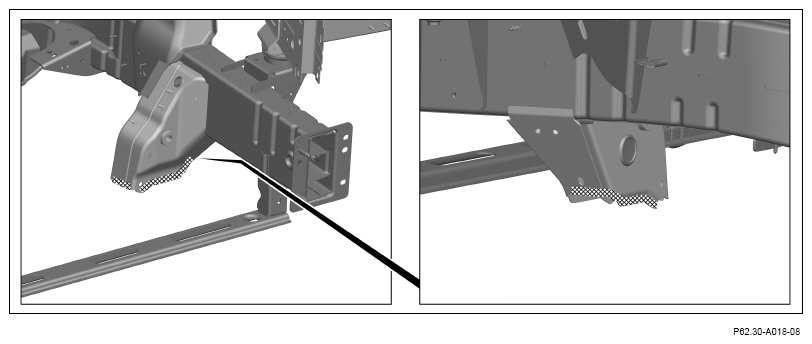

   Shown on left side of vehicle

3. Sand down mating surfaces to bare metal in cross-hatched areas.
4. Remove grinding dust.
