Cavity Preservation Following Repair Work - Ar97.20-P-1500XG

Model 463

as of model year 2019

Differences in cavity preservation

Courtesy of MERCEDES-BENZ USA

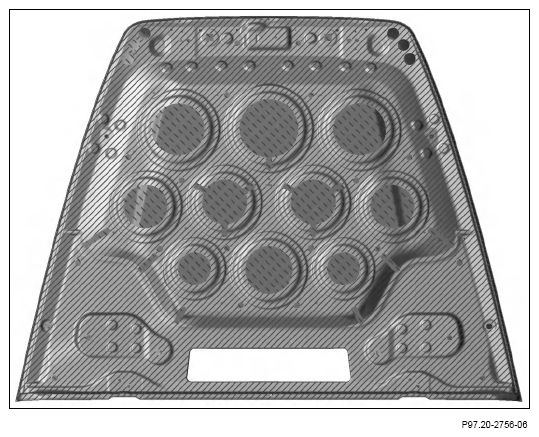

Cavity preservation on the hood

Courtesy of MERCEDES-BENZ USA

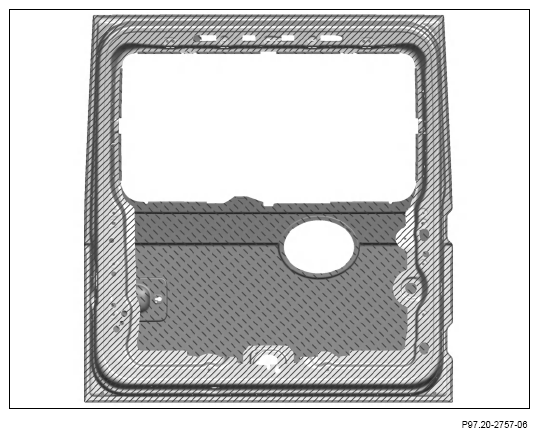

Cavity preservation on the rear-end door

Courtesy of MERCEDES-BENZ USA

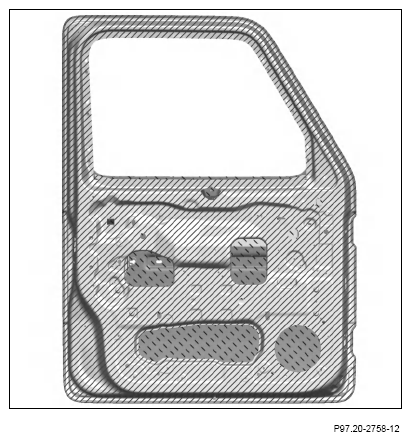

Cavity preservation on the front door

Courtesy of MERCEDES-BENZ USA

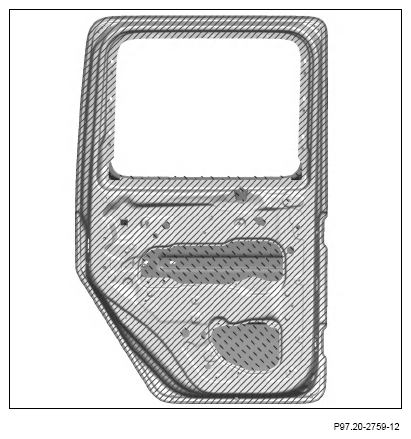

Cavity preservation on the rear door

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

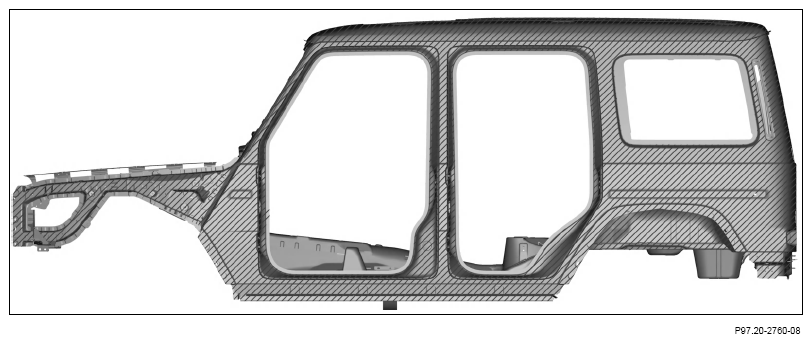

Cavity preservation on the front longitudinal member, A-pillar, B-pillar, C-pillar, and side wall

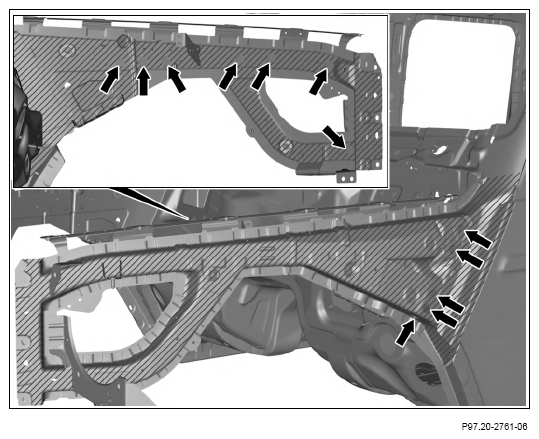

Cavity preservation on front longitudinal member

Courtesy of MERCEDES-BENZ USA

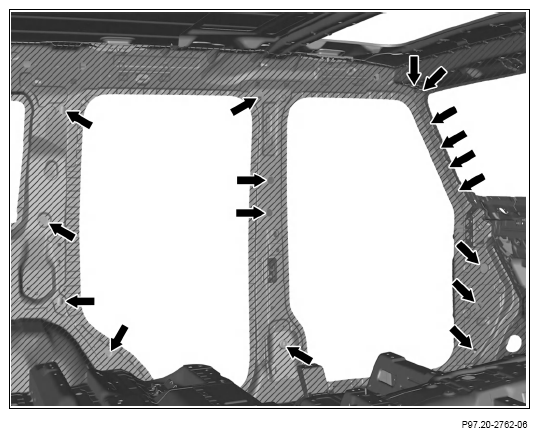

Cavity preservation on A-pillar, B-pillar, and C-pillar

Courtesy of MERCEDES-BENZ USA

Cavity preservation on front roof frame and top firewall

Courtesy of MERCEDES-BENZ USA

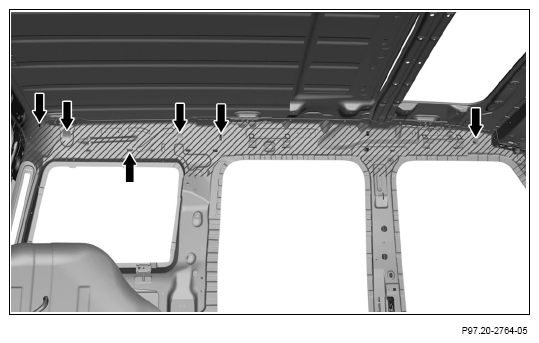

Cavity preservation on side roof frame

Courtesy of MERCEDES-BENZ USA

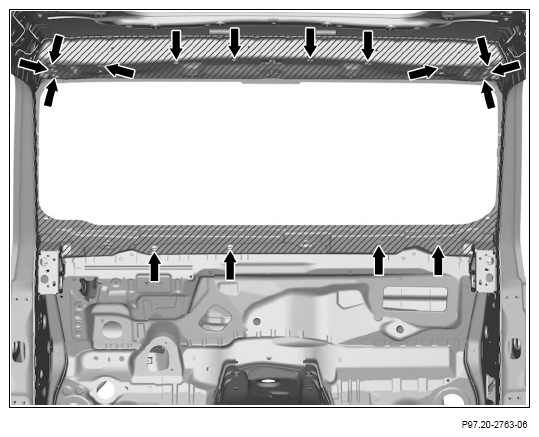

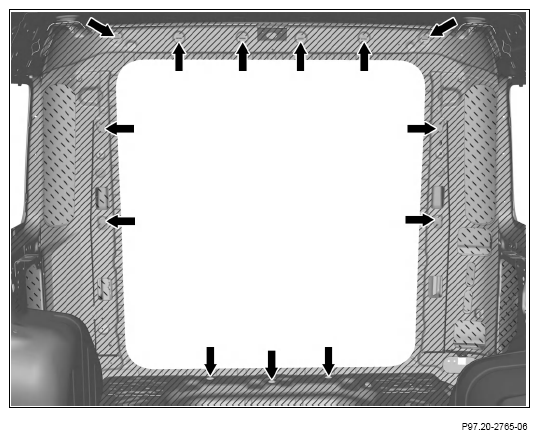

Cavity preservation on rear end roof frame, D-pillar, and load compartment floor

Courtesy of MERCEDES-BENZ USA

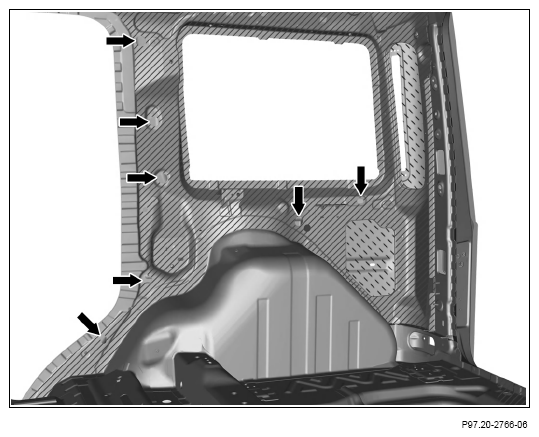

Cavity preservation on load compartment side wall

Courtesy of MERCEDES-BENZ USA

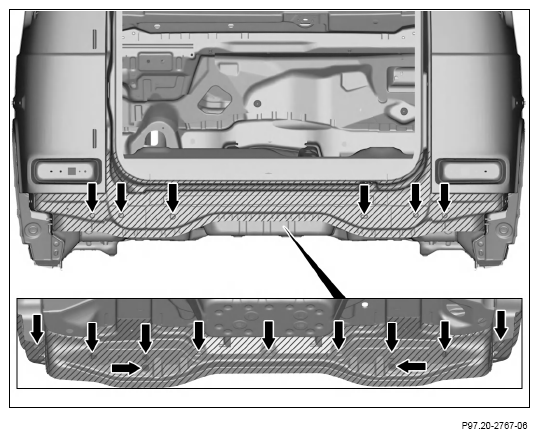

Cavity preservation in the rear area

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

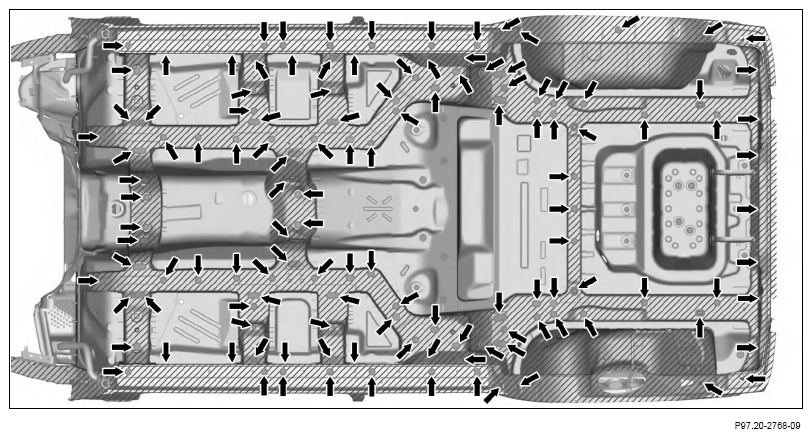

Cavity preservation on the underbody

Courtesy of MERCEDES-BENZ USA

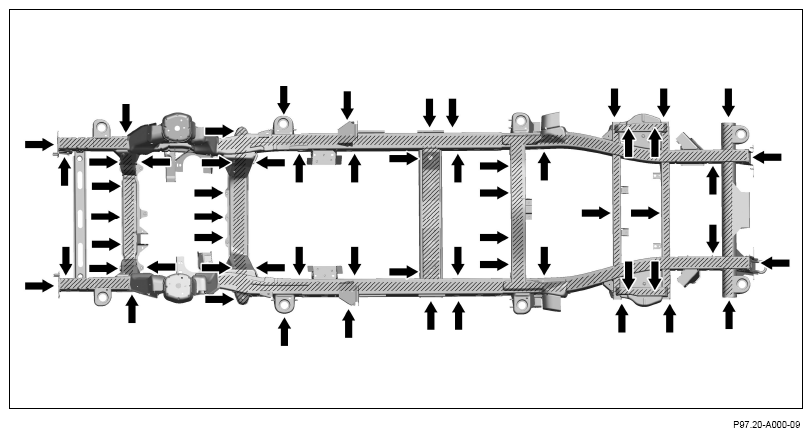

Cavity preservation on the frame

Picture no., etc.	Work notes
	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B
A	Cavity preservation in folding areas and hollow cavities.
	Cavity protection, general	Commercially available devices/tools Pressure spray gun Apply from inside through openings (arrows) with hook probe.	GF98.00-P-2045A
		Cavity preservation (free of solvents), 1 liter	*BR00.45-Z-1003-05A
B	Cavity preservation for inner areas and gaps.
	Cavity protection, general	Commercially available devices/tools Pressure spray gun Uniformly moisten cavity preservation.	GF98.00-P-2045A
		Cavity preservation (free of solvents), 1 liter	*BR00.45-Z-1003-05A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation (free of solvents), 1 liter	A 000 986 72 70 10
