Check AIR BODY CONTROL For Leaktightness - AR32.22-P-8101LWO
Model 238
With Code 489 (AIR BODY CONTROL)
| Notes on AIR BODY CONTROL | AH32.22-P-1000-03LWO | ||
| Remove | |||
| 1 | Remove cover (4) and service flap (5) | ||
| 2 | Remove front engine compartment paneling | AR61.20-P-1105LWE | |
| 3 | Unfasten front left and right fender liner in bumper area | AR88.10-P-1300LWE | |
| Check | |||

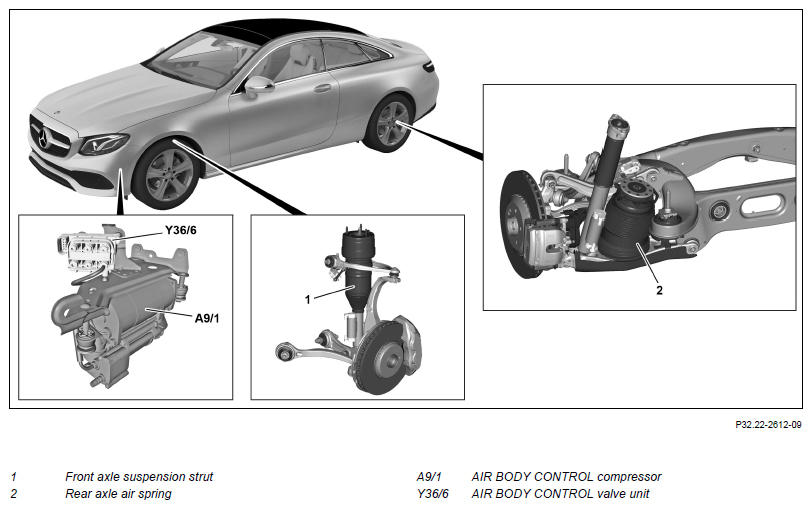

| 4 | Spray pressure line connections at AIR BODY CONTROL valve unit (Y36/6) with leak detection spray | Leak detection spray for China | *BR00.45-Z-1006-03A |
| Leak location spray LUBRION article no. 626.04 | *BR00.45-Z-1005-03A | ||
| Leakage detection spray for USA | *BR00.45-Z-1004-03A | ||
| Snoop Leak detection fluid | *BR00.45-Z-1003-03A | ||
| Leak detection spray | *BR00.45-Z-1002-03A | ||
| Crack detector | *BR00.45-Z-1001-03A | ||
| 5 | Spray pressure line connections on AIR BODY CONTROL compressor (A9/1) with leak detection spray | ||
| 6 | Spray pressure line connections on front axle suspension strut (1) with leak detection spray | ||

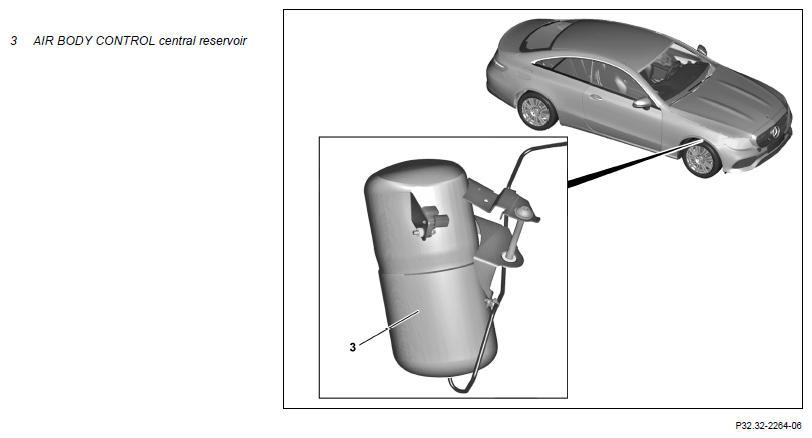

| 7 | Spray pressure line connection on AIR BODY CONTROL central reservoir (3) with leak detection spray | ||
| 8 | Spray pressure line connections at rear axle air spring (2) with leak detection spray | ||
| 9 | Spray leak detection spray onto area around dust boots at top and bottom of right and left front axle suspension strut (1) | ||
| 10 | Spray leak detection spray onto area around dust boots at top and bottom of right and left rear axle air spring (2) | ||
| 11 | Check sprayed areas for leak tightness | In the event of leakage ↓ Replace or repair corresponding components Replace front axle suspension strut (1) |
AR32.25-P-1017LWQ |
| Replace rear axle air spring (2) | AR32.22-P-1500LWO | ||
| Repair air suspension pressure line connection | AR32.22-P-2001-01LWO | ||
| *BA32.22-P-1004-03H | |||
| *BA32.22-P-1005-03H | |||
| *BA32.22-P-1006-03H | |||
| *BA32.22-P-1008-03H | |||
| Fig 3 | |||
| Fig 1 | |||
| Fig 2 | |||
| Install | |||
| 12 | Attach front left and right fender liner in bumper area | AR88.10-P-1300LWE | |
| 13 | Install front engine compartment paneling | AR61.20-P-1105LWE | |
| 14 | Install cover (4) and service flap (5) |
AIR SUSPENSION
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA32.22-P-1004-03H | Pressure line to compressor/valve unit (P) | Nm | 3, |
AIR SUSPENSION
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA32.22-P-1005-03H | Pressure line for air suspension on front axle/rear axle to valve unit | Nm | 2 |
AIR SUSPENSION
| Number | Designation | Model 238 | ||
|---|---|---|---|---|
| BA32.22-P-1006-03H | Pressure line to air suspension | Front axle | Nm | 2 |
| Rear axle | Nm | 3, | ||
AIR SUSPENSION
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA32.22-P-1008-03H | Pressure line to pressure reservoir/valve unit (SP) | Nm | 3, |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-03A | Crack detector | A 000 989 03 59 |
| BR00.45-Z-1002-03A | Leak detection spray | Christof Fischer GmbH http://www.kaeltefischer.de |
| BR00.45-Z-1003-03A | Snoop Leak detection fluid | Swagelok Company http://www.swagelok.com |
| BR00.45-Z-1004-03A | Leakage detection spray for USA | LIQUI MOLY http://www.liqui-moly.com |
| BR00.45-Z-1005-03A | Leak location spray LUBRION article no. 626.04 | WIMMER CHEMOTECHNIK Riedener Weg 50B 82319 STARNBERG, BAVARIA Telephone: (08151) 739981 Fax: (08151) 739982 http://www.lubrion.com |
| BR00.45-Z-1006-03A | Leak detection spray for China | Wurth (China) Co., Ltd http://www.wuerth.cn |
