Remove/Install Lower Engine Compartment Lining - Ar61.20-P-1105LWE

Model 213

Model 238

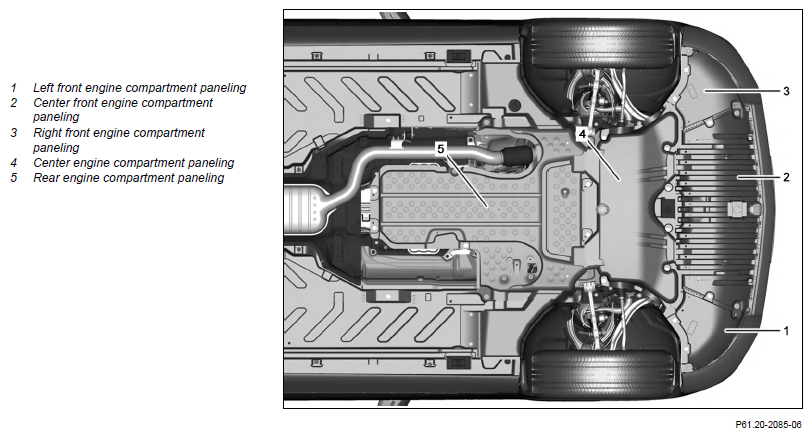

Shown on model 213 with engine 274 except code 481 (underbody protection)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  from engine start by remote start function	Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes	AS00.00-Z-0024-01A
	Remove/install
1	Open engine hood	Vehicles with remote start function
2	Raise vehicle		AR00.60-P-1002LWG
3	Remove center engine compartment paneling (4)	Model 213, 238 with code 481 (Sump shield) Screw/bolt, underride guard	*BA61.40-P-1001-01D
4	Remove left front engine compartment paneling (1), center front engine compartment paneling (2), right front engine compartment paneling (3) or rear engine compartment paneling (5)	Push left front engine compartment paneling (1) and right front engine compartment paneling (3) below center front engine compartment paneling (2).
5	Install in the reverse order
