Overview Of System Components Of AIR BODY CONTROL - GF32.22-P-9993FH
Model 238 Up To Model Year 2021 With Code 489 (AIR BODY CONTROL)

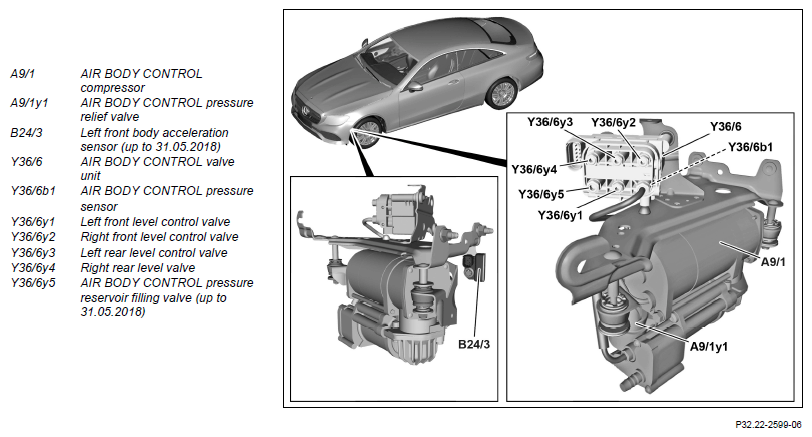

Shown on model 238.3

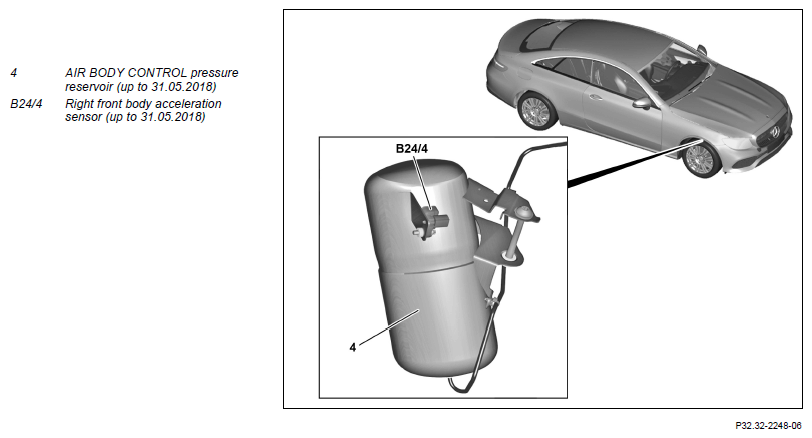

Shown on model 238.3

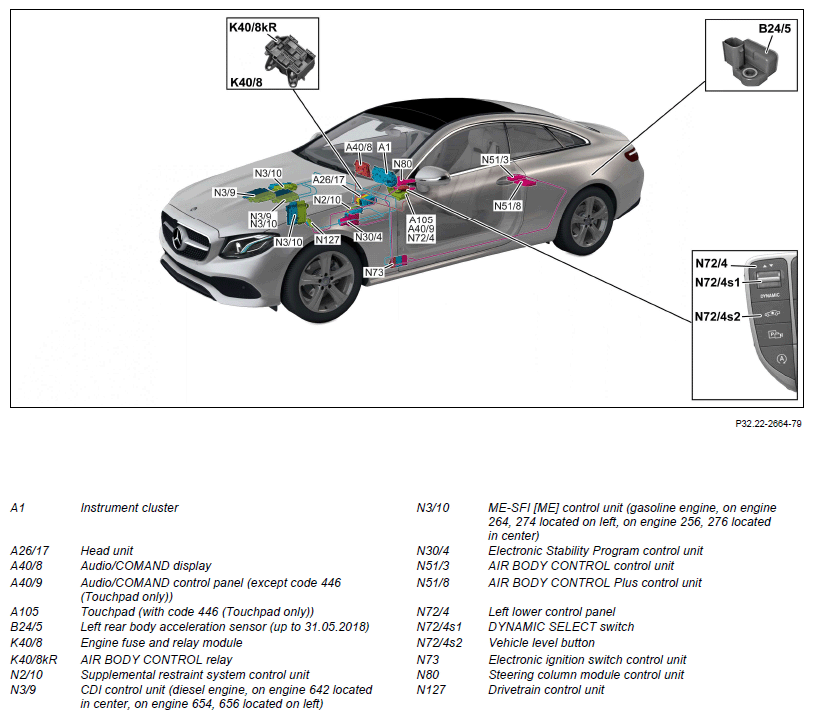

Shown on model 238.3

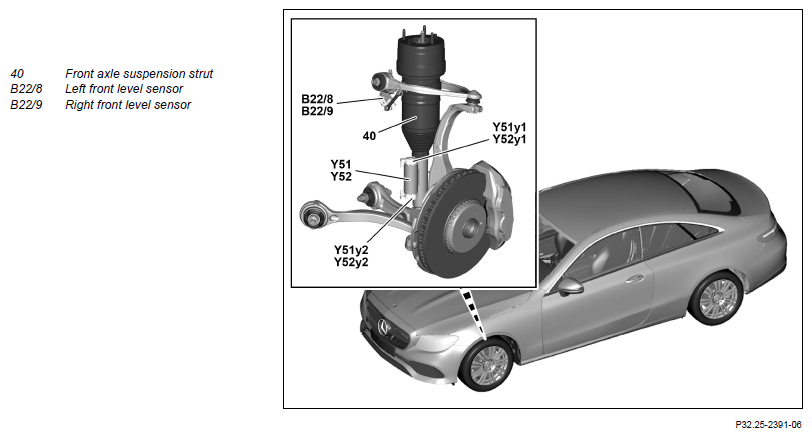

Shown on front axle at left, model 238.3

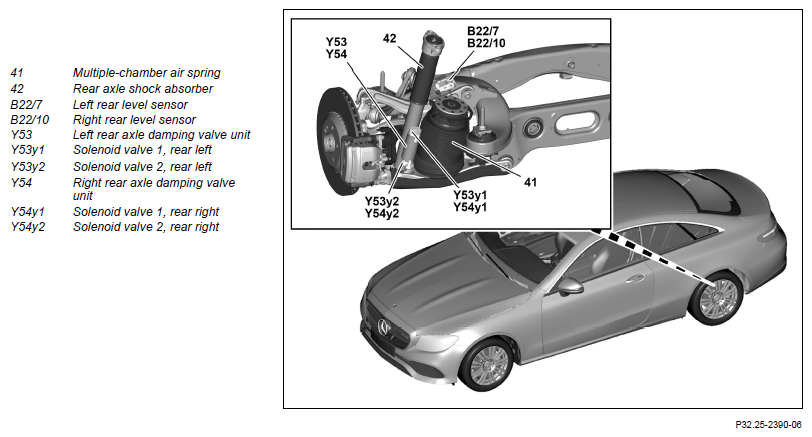

Shown on rear axle at left, model 238.3

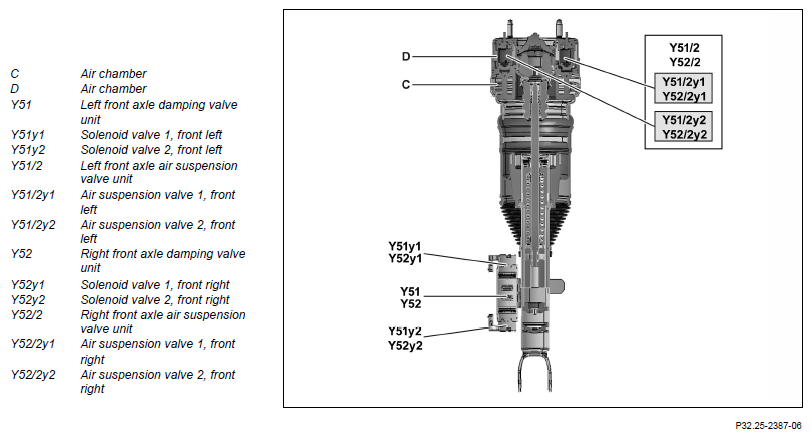

Front axle suspension strut

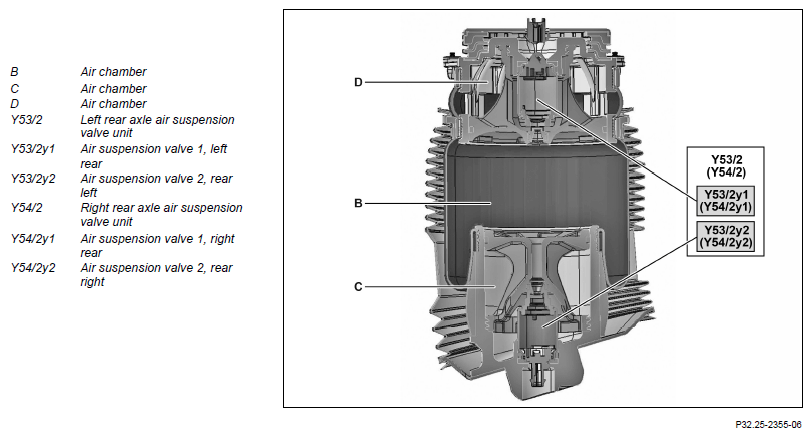

Rear axle multiple-chamber air spring
| Component description for instrument cluster | A1 | GF54.30-P-6000FH | |
| Head unit, component description | Model 238 up to model year 2021 with code 489 (AIR BODY CONTROL) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FH | |
| Model 238 up to model year 2021 with code 489 (AIR BODY CONTROL) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHA | ||
| Model 238 up to model year 2021 with code 489 (AIR BODY CONTROL) with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHB | ||
| Model 238 up to model year 2021 with code 489 (AIR BODY CONTROL) with code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHC | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FH | |
| Component description for Audio/COMAND control panel | Model 238 up to model year 2021 with code 489 (AIR BODY CONTROL) except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FH | |
| Touchpad, component description | Model 238 up to model year 2021 with code 446 (Touchpad only) with code 489 (AIR BODY CONTROL) A105 | GF54.21-P-4511FH | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FH | |
| Component description for CDI control unit | Model 238 with engine 642.8 up to model year 2021 with code 489 (AIR BODY CONTROL) N3/9 | GF07.16-P-6000OGW | |
| Model 238 with engine 654.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N3/9 | GF07.16-P-6000ORC | ||
| Model 238 with engine 656.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 238 with engine 256.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N3/10 | GF07.61-P-6000MRT | |
| Model 238 with engine 264.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N3/10 | GF07.61-P-6000MRG | ||
| Model 238 with engine 274.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N3/10 | GF07.61-P-6000MRD | ||
| Model 238 with engine 276.8 up to model year 2021 with code 489 (AIR BODY CONTROL) N3/10 | GF07.61-P-6000MND | ||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FH | |
| AIR BODY CONTROL control unit, component description | N51/3, N51/8 | GF32.22-P-5111FH | |
| Lower control panel, component description | N72/4 | GF54.25-P-4270FH | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FH | |
| Component description for steering column tube module control unit | Model 238 up to model year 2019 with code 489 (AIR BODY CONTROL) N80 | GF54.21-P-6051FH | |
| Model 238 as of model year 2019 up to model year 2021 with code 489 (AIR BODY CONTROL) N80 | GF54.21-P-6051FHG | ||
| Drivetrain control unit, component description | Model 238 with engine 256.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N127 | GF54.21-P-2141LF | |
| Model 238 with engine 264.9, 274.9, 276.8 up to model year 2021 with code 489 (AIR BODY CONTROL) N127 | GF54.21-P-2141MRP | ||
| Model 238 with engine 642.8, 654.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N127 | GF54.21-P-2141ORC | ||
| Model 238 with engine 656.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N127 | GF54.21-P-2141OGS | ||
| Table of contents for function description of AIR BODY CONTROL | GF32.22-P-0996FH |
