Retrofit Front Mercedes-Benz Dashcam - AZ54.71-P-0002LWO

Model 238.3

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Remove A-pillar trim on driver's side.
			AR68.30-P-4050LWO
2	Release fuse and relay module on driver's side.
			AR54.15-P-0003LWE
3	Remove trim at bottom for instrument panel or driver's side.
			AR68.10-P-1501LWE
4	Remove overhead control panel control unit.
			AR82.20-P-1000LWO
	Install
5	Retrofit front dashcam mount.	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20 °C. During the first hour avoid the application of any mechanical load. Otherwise adhesion problems may occur.	AZ54.71-P-0001-00LWG
		Cleaner	*BR00.45-Z-1025-04A
	Remove
6	Remove cover for rain and light sensor.	Long wedge	Fig 1
7	Remove both sun visors.
			AR68.60-P-5480LWO
8	Release roof lining at front on driver's side.
	Install
9	Retrofit wiring harness for dashcam.		AZ54.71-P-0002-01LWO
Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A
		Left front footwell ground point	*BA00.19-P-1012-02B
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2

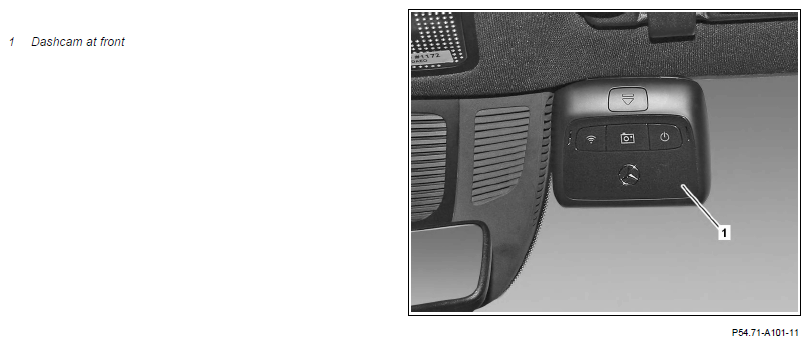

10	Latch dashcam at front (1) into dashcam mount opposite direction of arrow on eject button.	Mount dashcam at front (1) at the earliest one hour after gluing on the dashcam mount. Otherwise, the dashcam mount may work its way loose.
11	Perform initial startup.		AZ54.71-P-0001-02LWE
	National settings for Mercedes-Benz dashcam		GF54.71-P-0010-02LWE
12	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
13	Attach "Mercedes-Benz dashcam retrofitted at front as perAZ54.71-P-0002LWO" note under field organization texts to design group 54, design group 67 and design group 68.
	Check
14	Perform function test.	See Owner's Manual.

GROUND POINTS

Number	Designation			Model 238
BA00.19-P-1012-02B	Left front footwell ground point	W15/5	Nm	10

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1144-02A	Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	A 008 989 50 85 09

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see XENTRY Portal Parts information)	Dashcam parts kit	1
