Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800FH
Model 238 Up To Model Year 2021

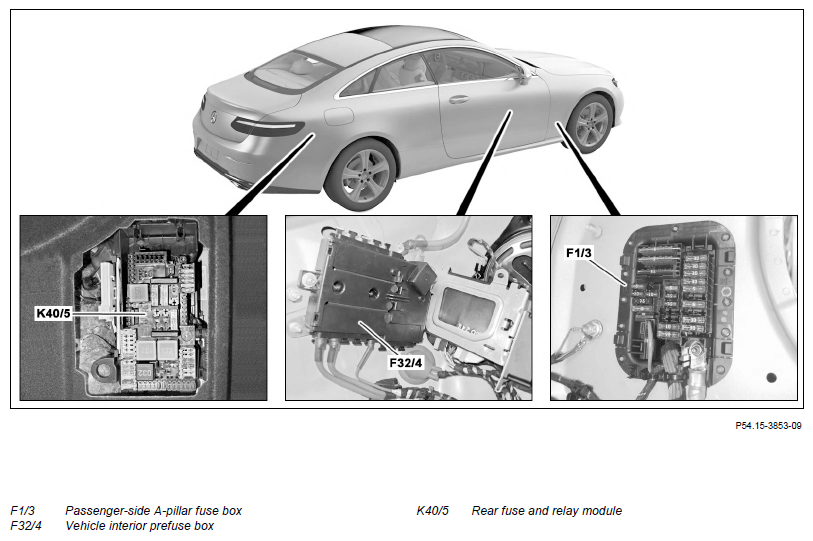

Shown On Model 238.3
Shown On Model 238.3

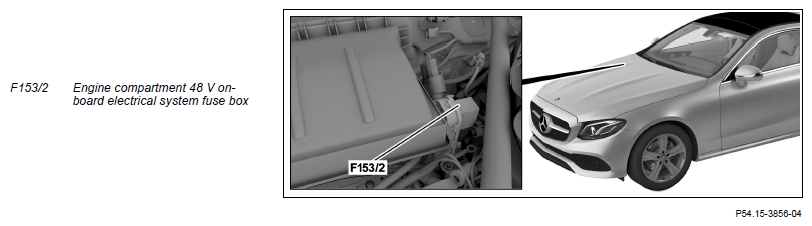

Model 238 With Code B01 (48V technology), Shown On Model 238.3

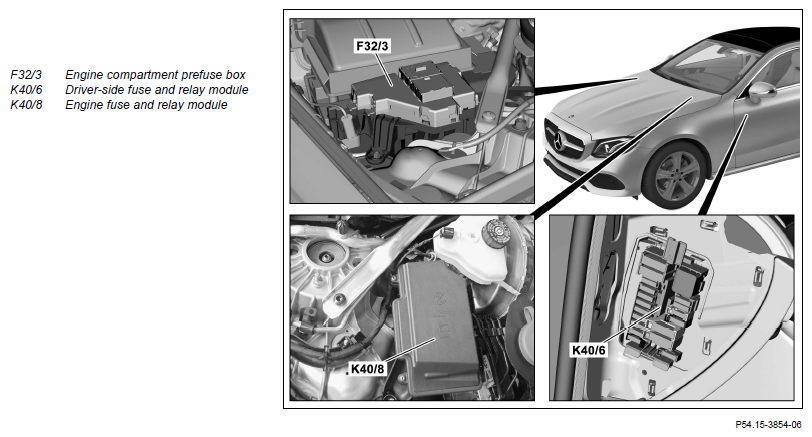

Model 238, left-hand drive vehicle with engine 274, 276 except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) and except code 228 (Stationary heater)

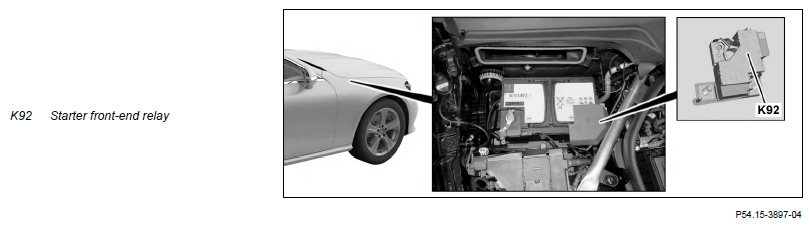

| Assignment of passenger-side A-pillar fuse box | F1/3 | GF54.15-P-1256-48FH | |
| Fuse assignment of pre-fuse box in engine compartment | F32/3 | GF54.15-P-1256-25FH | |
| Fuse assignment on interior pre-fuse box | F32/4 | GF54.15-P-1256-26FH | |
| Fuse assignment of fuse box for 48V onboard electrical system in engine compartment | Model 238 t up to Model year 2021 with code B01 (48V technology) F153/2 | GF54.15-P-1256-46FH | |
| Assignment of rear fuse and relay module | K40/5 | GF54.15-P-1256-30FH | |
| Assignment of driver-side fuse and relay module | K40/6 | GF54.15-P-1256-49FH | |
| Assignment of engine fuse and relay module | K40/8 | GF54.15-P-1256-32FH |
