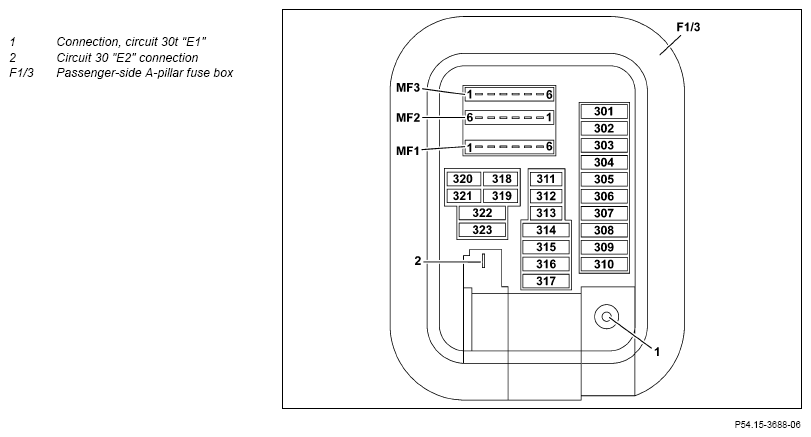

Assignment Of Passenger-Side A-Pillar Fuse Box - GF54.15-P-1256-48FH
Model 238
Up To Model Year 2021
| Slot | Fuse Identification | Circuit | Wire Identification | Fused | Fuse rating (A) |
|---|---|---|---|---|---|
| 301 | Electrical fuse 301 (F1/3f301) | 30t | 2.5 RD | Rear control unit (N22/6) | 30 |
| 302 | Electrical fuse 302 (F1/3f302) | 30t | 2.5 RD | Right front door control unit (N69/2) | 30 |
| 303 | Electrical fuse 303 (F1/3f303) | 30t | 2.5 RDGN | With Code 275 (Memory package): Driver's seat control unit (N32/1) |
30 |
| 304 | Electrical fuse 304 (F1/3f304) | 30t | 2.5 RDYE | With Code 275 (Memory package): Front passenger seat control unit (N32/2) |
30 |
| 305 | Electrical fuse 305 (F1/3f305) | 30t | 0.35 RDYE | Rain/light sensor with additional functions (B38/2) | 5 |
| 306 | Electrical fuse 306 (F1/3f306) | 30t | 2.5RDGY | With Code 401 (Seat climate control for driver and front passenger) or code 873 (Seat heating for driver and front passenger) and except code 275 (Memory Package): Front seat heating/seat ventilation control unit (N25/17) |
30 |
| 2.5 RD | With Code 902 (Seat heater plus for driver and front passenger): Front passenger seat heater control unit (N25/4) |
||||
| 307 | Electrical fuse 307 (F1/3f307) | 30t | 0.75 RD | With Code 362 (HERMES LTE): HERMES control unit (N112/9) |
5 |
| 308 | Electrical fuse 308 (F1/3f308) | 30t | 0.5 RDVT | Diagnostics connection (X11/4) | 5 |
| 309 | Electrical fuse 309 (F1/3f309) | 30t | 2.5 RDWH | With Code 413 (Panoramic sliding sunroof): Panoramic sliding sunroof control module (A98) |
30 |
| 310 | Electrical fuse 310 (F1/3f310) | 30t | 4.0 RDGN | Left front reversible emergency tensioning retractor (A76) | 30 |
| 4.0 RDBK | Right front reversible emergency tensioning retractor (A76/1) | ||||
| 311 | Electrical fuse 311 (F1/3f311) | 30t | 1.0 RD | Powertrain control unit (N127) | 5 |
| Diesel engine: CDI control unit (N3/9) |
|||||
| Gasoline engine: ME-SFI [ME] control unit (N3/10) |
|||||
| 312 | Electrical fuse 312 (F1/3f312) | 30t | 0.75 RDBU | Supplemental Restraint System control unit (N2/10) | 7, 5 |
| 313 | Electrical fuse 313 (F1/3f313) | 30t | 0.5 RDGN | Multimedia connection unit (A90/5) | 7, 5 |
| 314 | Electrical fuse 314 (F1/3f314) | 30t | 2.5 RDBK | With Code 228 (Stationary heater): Stationary heater unit (A6) |
20 |
| 315 | Electrical fuse 315 (F1/3f315) | 30t | 2.5 RD | With Code M005 (4MATIC) and code M016 (Engine, high-performance): All-wheel drive control unit (N45) |
- |
| 316 | Electrical fuse 316 (F1/3f316) | 30t | 1.5 RDWH | Model 238.3: Overhead control panel control unit (N70) |
10 |
| 0.75 RDWH | Model 238.4: Overhead control panel control unit (N70) |
||||
| 317 | Electrical fuse 317 (F1/3f317) | 30t | 1.5 RDBU | Head unit (A26/17) | 15 |
| 318 | Electrical fuse 318 (F1/3f318) | 30 | 0.5 RD | With Code 551 (Anti-theft alarm system (ATA)) or code 882 (Interior protection and tow-away protection): Alarm siren (H3/1) |
5 |
| 319 | Electrical fuse 319 (F1/3f319) | 30 | 0.75 RDBK | With Code 889 (KEYLESS-GO): KEYLESS-GO control unit (N69/5) |
10 |
| 320 | Electrical fuse 320 (F1/3f320) | 30 | 0.5 RDGY | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier (A2/18) | 5 |
| 321 | Electrical fuse 321 (F1/3f321) | 30 | 0.75 RDYE | Electronic ignition lock control unit (N73) | 10 |
| 322 | Electrical fuse 322 (F1/3f322) | 30 | 0.5 RDWH | Instrument cluster (A1) | 7, 5 |
| 323 | Electrical fuse 323 (F1/3f323) | - | - | Spare | - |
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 1 | - | - | Spare | - |
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 2 | 30t | 0.75 RD | With Code 513 (Traffic Sign Assist) or code 22P (Lane Tracking Package) or code P35 (Light Package) and except code 23P (Driving Assistance Package): Mono multifunction camera (A40/11) |
7, 5 |
| With Code 23P (Driving assistance package): Stereo multifunction camera (A40/13) |
|||||
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 3 | 30t | 0.5 RDYE | With Code 899 (Multifunction telephony): Cellular telephone system antenna amplifier/compensator (A28/15) Front mobile phone cradle control unit (N123/8) |
7, 5 |
| With Code 897 (Wireless mobile phone charging): Front mobile phone cradle control unit (N123/8) |
|||||
| With Code 386 (Convenience Telephony) or code 379 (Telephone module with Bluetooth® (SAP profile)): Mobile phone contact plate (X237/1) |
|||||
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 4 | 30t | 0.5 RDWH | With Code P65 (Seat Comfort Package) or code 275 (Memory Package), except code 399 (Front multicontour seats with massage function): Driver's seat lumbar support electropneumatic controller unit (N32/23) |
7, 5 |
| 0.35 RDWH | With Code 399 (Front multicontour seats with massage function): Left front multicontour seat control unit (N32/15) |
||||
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 5 | 30t | 0.5 RDBU | With Code P65 (Seat Comfort Package) or code 275 (Memory Package), except code 399 (Front multicontour seats with massage function): Front passenger seat lumbar support electropneumatic controller unit (N32/24) |
7, 5 |
| 0.35 RDWH | With Code 399 (Front multicontour seats with massage function): Right front multicontour seat control unit (N32/16) |
||||
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 6 | 30t | 0.5 RDBK | With Code 239 (Active Distance Assist DISTRONIC): DISTRONIC distance pilot electric controller unit (A108/1) |
7, 5 |
| With Code 23P (Driving assistance package): Short-range and long-range radar sensor (B92/12) |
|||||
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 1 | - | - | Spare | - |
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 2 | 30t | 0.35 RDBK | Except code 446 (Touchpad only): Audio/COMAND control panel (A40/9) |
5 |
| 0.35 RDGY | With Code 446 (Touchpad only): Touchpad (A105) |
||||
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 3 | 30t | 0.35 RD | With Code 380 (Car telephony package): Telephone control unit (N123/9) |
5 |
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 4 | 30t | 0.5 RD | With Code 463 (Head-up display): Heads-up display (A40/12) |
5 |
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 5 | - | - | Spare | - |
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 6 | 30t | 0.35 RDBU | With Code P21 (Air quality package): Perfume atomizer generator (N59) |
5 |
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 1 | 30t | 0.5 RDYE | With Code B01 (48V technology): Pyrofuse (F63) |
5 |
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 2 | - | - | Spare | - |
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 3 | 30t | 0.35 RD | With Code 448 (Touchpad): Touchpad (A105) |
5 |
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 4 | 30t | 0.35 RDWH | Model 238.361/461 or With Code P47 (Parking Pilot with 360° camera) and code 489 (AIR BODY CONTROL) or code P44 (Parking Package) and code 489 (AIR BODY CONTROL) or code 23P (Driving Assistance Package) or code 243 (Active Lane Keeping Assist) or code 463 (Head-up display): Driver side instrument panel button group (S6/1) |
5 |
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 5 | 30t | 0.35 RDVT | With Code 581 (Automatic air conditioning): Rear air conditioning operating unit (N22/4) |
5 |
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 6 | 30t | 0.5 RD | With Code 228 (Stationary heater): Stationary heater radio remote control receiver (A6/1) |
5 |
