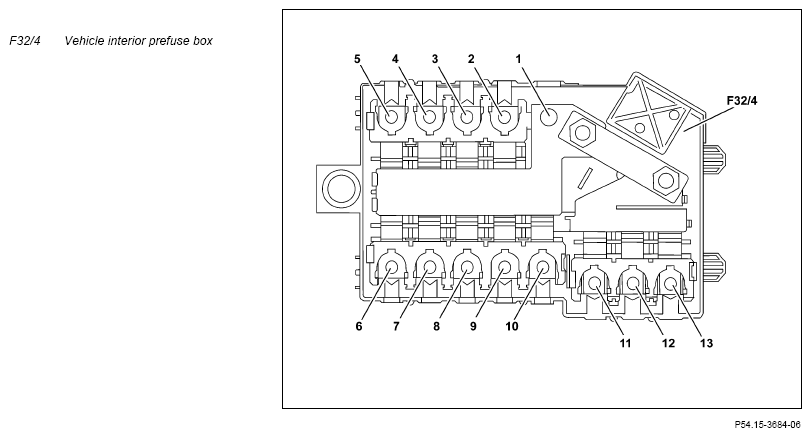

Fuse Assignment On Interior Pre-Fuse Box - GF54.15-P-1256-26FH
Model 238
Up To Model Year 2021
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| 1 | - | 30t | 35.0 RD | Connection, circuit 30t from engine compartment pre-fuse box (F32/3) | - |
| 2 | Electrical fuse 2 (F32/4f2) | 30t | - | Spare | - |
| 3 | Electrical fuse 3 (F32/4f3) | 30t | 4.0 RD | Air conditioner housing (A32) | 40 |
| 4 | Electrical fuse 4 (F32/4f4) | 30t | - | Spare | - |
| 5 | Electrical fuse 5 (F32/4f5) | 30t | Unknown | Diesel engine: PTC heater booster (R22/3) |
150 |
| 6 | Electrical fuse 6 (F32/4f6) | 30t | 10.0 RD | Passenger-side A-pillar fuse box (F1/3) | 80 |
| 7 | Electrical fuse 7 (F32/4f7) | 30t | 16.0 RD | Rear passenger compartment fuse and relay module (K40/5) | 150 |
| 8 | Electrical fuse 8 (F32/4f8) | 30t | - | Spare | - |
| 9 | Electrical fuse 9 (F32/4f9) | 30t | - | Spare | - |
| 10 | Electrical fuse 10 (F32/4f10) | 30t | 6.0 BK | Transmission 725 and engine 274: Fully integrated transmission control unit (Y3/8n4) |
60 |
| 10.0 BK | Transmission 725 and except engine 274: Fully integrated transmission control unit (Y3/8n4) |
100 | |||
| 11...13 | Electrical fuse 11 (F32/4f11) - Electrical fuse 13 (F32/4f13) | 30t | - | Spare | - |
