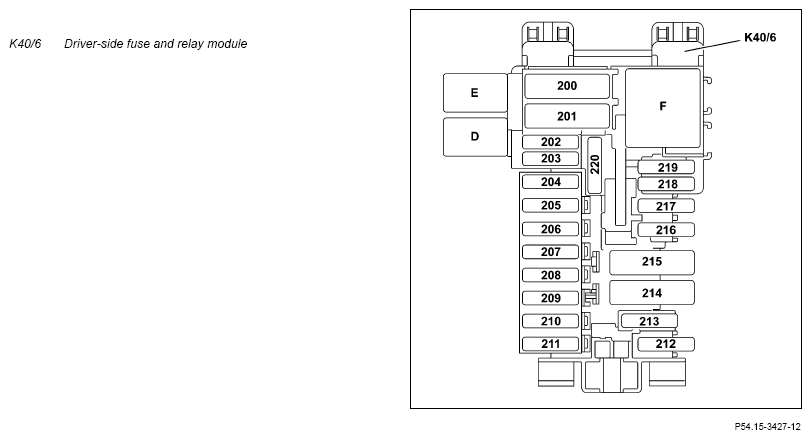

Assignment Of Driver-Side Fuse And Relay Module - GF54.15-P-1256-49FH
Model 238
Up To Model Year 2021
| Slot | Fuse Identification | Circuit | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| 200 | Electrical fuse 200 (K40/6f200) | 30t | 4.0 RD | Front SAM control unit (N10/6) | 40 |
| 201 | Electrical fuse 201 (K40/6f201) | 30t | 4.0 RDWH | Front SAM control unit (N10/6) | 40 |
| 202 | Electrical fuse 202 (K40/6f202) | 30t | 0.5 RDYE | Engine 264 With Code B01 (48V technology): Starter alternator (M1/10) |
5 |
| 0.5 RDBK | Engine 256: Starter-alternator control unit (N129) |
||||
| 203 | Electrical fuse 203 (K40/6f203) | 30t | 2.5 RD | Left front door control unit (N69/1) | 30 |
| 204 | Electrical fuse 204 (K40/6f204) | 30t | 0.5 BKRD | With Code 498 (Japan version): Dedicated Short-Range Communications control unit (A50/6) via cockpit fuse block (F11/1) |
5 |
| 205 | Electrical fuse 205 (K40/6f205) | 30t | 0.5 RDBU | Steering column tube module control unit (N80) | 7, 5 |
| 206 | Electrical fuse 206 (K40/6f206) | 30t | 0.35 RDYE (0.5 RDYE) | Analog clock (A70/1) | 5 |
| 0.5 RD (0.5 RDYE) | With Code 896 (Vehicle access and drive authorization over mobile phone) or code 897 (Wireless mobile phone charging) or With Code 899 (Multifunction telephony): USB port on center console at front (X115/5) |
||||
| 207 | Electrical fuse 207 (K40/6f207) | 30t | 1.5 RDVT | Transmission 716: Electric steering lock control unit (N26/5) |
20 |
| 208 | Electrical fuse 208 (K40/6f208) | 30t | 0.5 RD | Audio/COMAND display (A40/8) | 7, 5 |
| With Code 464 (Full display digital instrument cluster): Digital instrument cluster full display fan motor (M4/12) |
|||||
| 209 | Electrical fuse 209 (K40/6f209) | 30t | 0.5 RDWH | Upper control panel control unit (N72/1) Climate control operating unit (N58/1) | 5 |
| 210 | Electrical fuse 210 (K40/6f210) | 30t | 1.5 RDBK | Climate control, control unit (N22/1) | 15 |
| 211 | Electrical fuse 211 (K40/6f211) | 30t | 1.0 RD | With Code 443 (Steering wheel heater): Steering column tube module control unit (N80) |
15 |
| 212 | Electrical fuse 212 (K40/6f212) | - | - | Spare | - |
| 213 | Electrical fuse 213 (K40/6f213) | 30t | 4.0 RDGN | Left front reversible emergency tensioning retractor (A76) Right front reversible emergency tensioning retractor (A76/1) | 30 |
| 214...220 | Electrical fuse 214 (K40/6f214) - Electrical fuse 220 (K40/6f220) | - | - | Spare | - |
| Relay Identification | Designation |
|---|---|
| D | Backup relay |
| E | Backup relay |
| F | Backup relay |
