Adaptive Brake System Components Overview - GF42.47-P-9996FH
Model 238 Up To Model Year 2021

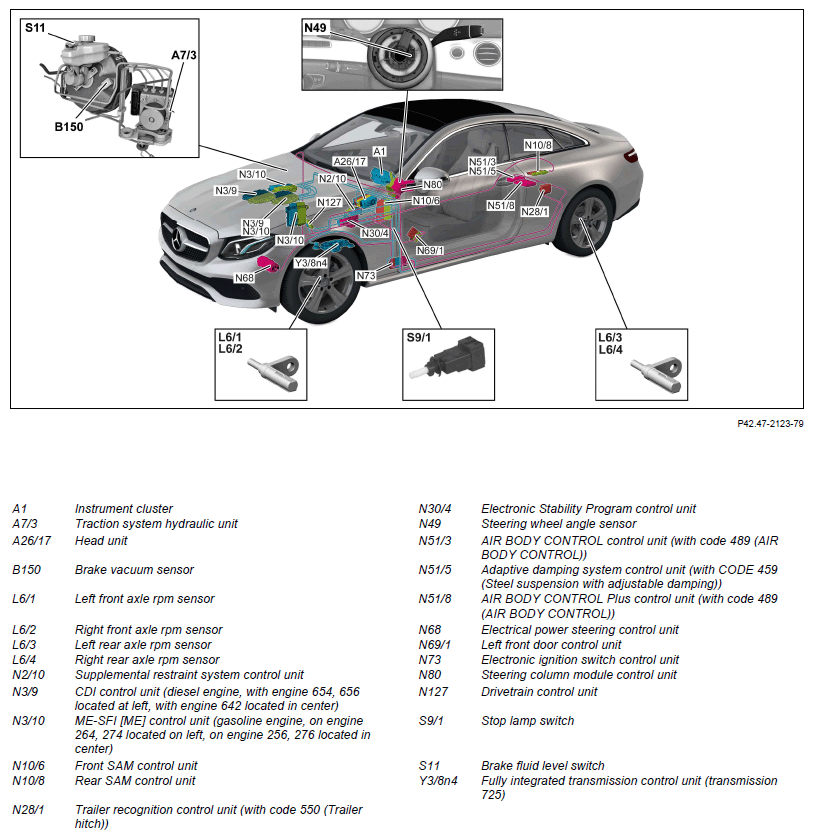

Shown on model 238.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FH | |
| Head unit, component description | Model 238 up to model year 2021 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FH | |
| Model 238 up to model year 2021 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHA | ||
| Model 238 up to model year 2021 with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHB | ||
| Model 238 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHC | ||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FH | |
| Component description for CDI control unit | Model 238 with engine 642.8 up to model year 2021 N3/9 | GF07.16-P-6000OGW | |
| Model 238 with engine 654.9 up to model year 2021 N3/9 | GF07.16-P-6000ORC | ||
| Model 238 with engine 656.9 up to model year 2021 N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 238 with engine 256.9 up to model year 2021 N3/10 | GF07.61-P-6000MRT | |
| Model 238 with engine 264.9 up to model year 2021 N3/10 | GF07.61-P-6000MRG | ||
| Model 238 with engine 274.9 up to model year 2021 N3/10 | GF07.61-P-6000MRD | ||
| Model 238 with engine 276.8 up to model year 2021 N3/10 | GF07.61-P-6000MND | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FH | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FH | |
| Component description for trailer recognition control unit | Model 238 up to model year 2021 with code 550 (Trailer coupling) N28/1 | GF31.19-P-4050FH | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FH | |
| Component description for adaptive damping system control unit | Model 238 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N51/5 | GF32.32-P-1010FH | |
| AIR BODY CONTROL, control unit, component description | Model 238 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3, N51/8 | GF32.22-P-5111FH | |
| Electric power steering control unit, component description | N68 | GF46.35-P-7012FH | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FH | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FH | |
| Component description for steering column tube module control unit | Model 238 up to model year 2019 N80 | GF54.21-P-6051FH | |
| Model 238 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FHG | ||
| Drivetrain control unit, component description | Model 238 with engine 256.9 up to model year 2021 N127 | GF54.21-P-2141LF | |
| Model 238 with engine 264.9, 274.9, 276.8 up to model year 2021 N127 | GF54.21-P-2141MRP | ||
| Model 238 with engine 642.8, 654.9 up to model year 2021 N127 | GF54.21-P-2141ORC | ||
| Model 238 with engine 656.9 up to model year 2021 N127 | GF54.21-P-2141OGS | ||
| Component description for fully integrated transmission control unit | Model 238 with transmission 725 up to model year 2021 Y38n4 | GF27.60-P-5165FH | |
| Table of contents for function description of ADAPTIVE BRAKE | GF42.47-P-0998FH |
