Retrofit Command Online - AN82.85-P-0009LWI

Model 213.0 (except 213.064/088/089) as of 12/1/17, 213.2 (except 213.264/288/289) as of 12/1/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 506 (Audio 20 NTG 5.5 radio)

except code 425 (6-speed manual transmission)

except code 520 (Audio 20 USB)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) as of 12/1/17, 213.2 (except 213.264/288/289) as of 12/1/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 506 (Audio 20 NTG 5.5 radio)

except code 421 (9-speed automatic transmission)

except code 520 (Audio 20 USB)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) up to 11/30/17, 213.2 (except 213.264/288/289) up to 11/30/17

with code 218 (Rear view camera)

with code 235 (Active Parking Assist)

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 506 (Audio 20 NTG 5.5 radio)

except code 425 (6-speed manual transmission)

except code 520 (Audio 20 USB)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) up to 11/30/17, 213.2 (except 213.264/288/289) up to 11/30/17

with code 218 (Rear view camera)

with code 235 (Active Parking Assist)

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 506 (Audio 20 NTG 5.5 radio)

except code 421 (9-speed automatic transmission)

except code 520 (Audio 20 USB)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) up to 11/30/17, 213.2 (except 213.264/288/289) up to 11/30/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 421 (9-speed automatic transmission)

with code 448 (Touchpad)

with code 506 (Audio 20 NTG 5.5 radio)

except code 218 (Rear view camera)

except code 425 (6-speed manual transmission)

except code 520 (Audio 20 USB)

except code 522 (Audio 20 radio)

Model 213.0 (except 213.064/088/089) up to 11/30/17, 213.2 (except 213.264/288/289) up to 11/30/17

with code 246 (Analogue clock)

with code 270 (Aerial for GPS)

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 425 (6-speed manual transmission)

with code 506 (Audio 20 NTG 5.5 radio)

except code 218 (Rear view camera)

except code 421 (9-speed automatic transmission)

except code 520 (Audio 20 USB)

except code 522 (Audio 20 radio)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove display module
			AR54.30-P-6023LWE

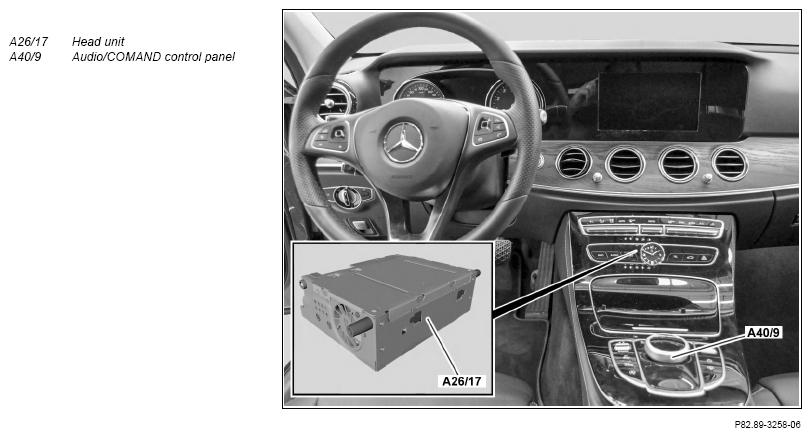

2	Remove head unit (A26/17) for Audio 20 NTG 5.5 radio
		The head unit (A26/17) for the Audio 20 NTG 5.5 radio is no longer required.	AR82.85-P-1101LWE
3	Remove HERMES control unit
			AR82.95-P-0019LWE
	Install
4	Transfer GPS antenna electrical line	Model 213.0/2 except code 355 (Pre-installation for navigation retrofit) except code 357 (Map navigation)	AN82.85-P-0007-07LWE
5	Modify plug housing for electrical wiring harness for reversing camera	Model 213.0/2 with code 218 (Reversing camera)	AN82.85-P-0009-07LWE
6	Modify electric line for audio/COMMAND display		AN82.85-P-0009-05LWO
7	Retrofit electrical wiring harness for instrument cluster	Fix electrical wiring harness for instrument cluster in place only after routing all retrofit wiring harnesses.	AN82.85-P-0009-06LWO
8	Install HERMES control unit
			AR82.95-P-0019LWE
9	Install new head unit (A26/17)
			AR82.85-P-1101LWE
10	Install remaining parts
	Update Vehicle Documentation (VeDoc)
11	Delete special equipment in on-line vehicle data card	Code 506 (Audio 20 radio NTG 5.5)
12	Delete special equipment in on-line vehicle data card	Model 213.0/2 with code 355 (Preinstallation for navigation retrofit) Code 355 (Preinstallation for navigation retrofit) Model 213.0/2 with code 357 (Map navigation) Code 357 (Card navigation)
13	Enter special equipment in on-line vehicle data card	Code 531 (COMMAND APS) Code 08U (Vehicle setup) Code 12U (Concierge service) Code 14U (Smartphone integration package) Code 16U (Smartphone integration Carplay) Code 17U (Smartphone integration Goggle Automotive Link)
14	Attach "COMMAND APS retrofitted in accordance with AN82.85-P-0009LWI" note under field organization texts to design group 82
15	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
16	Carry out variant coding using software calibration number (SCN)	Instrument cluster Head unit HERMES control unit Electronic ignition switch control unit Climate control, control unit Model 213.0/2 with code 641 (Dynamic left-hand traffic LED headlamps), model 213.0/2 with code 642 (Dynamic right-hand traffic LED headlamps) Headlamp range adjustment control unit Model 213.0/2 with code 235 (Active Parking Assist with PARKTRONIC) Parktronic system control unit Model 213.0/2 with code 233 (DISTRONIC PLUS) Mercedes-Benz Intelligent Drive control unit
17	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
18	Perform function test	See Owner's Manual.

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 99 (see EPC)	COMMAND Online parts kit	1
