Retrofit Electrical Lines For Instrument Cluster - AN82.85-P-0009-06LWO

Model 213

Model 238

Information on preventing damage to electronic components due to electrostatic discharge

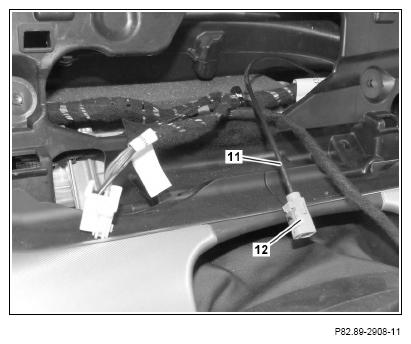

Route instrument cluster electric line (11) along vehicle wiring harnesses from device installation frame of instrument cluster to device installation frame of head unit.
Ensure wiring harness is routed correctly and free of chafing points.

Otherwise, the instrument cluster electric line (11) may be damaged.

The curry yellow connector socket (12) is connected later on to the instrument cluster.

Courtesy of MERCEDES-BENZ USA

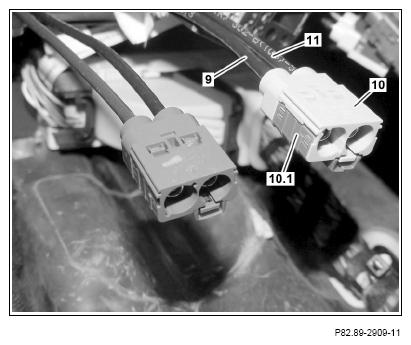

Install instrument cluster electric line (11) into contact cavity "2" of beige connector socket (10).
Mount secondary locking clip (10.1) onto beige connector socket (10).
The beige connector socket (10) is connected later on to the head unit.

Courtesy of MERCEDES-BENZ USA
