Transfer GPS Antenna Electrical Line - AN82.85-P-0007-07LWE

Model 213.0/1/2

Model 238

Courtesy of MERCEDES-BENZ USA

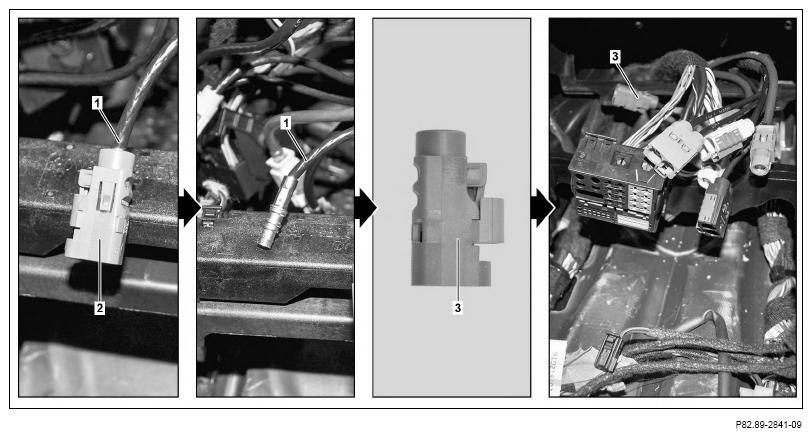

1. Remove blue connector socket (2) from GPS line (1).

   The blue connector socket (2) is no longer required.

2. Fit green connector socket (3) to GPS line (1).

   The GPS line (1) is connected later on to the head unit.
