Remove/Install Camshafts - AR05.20-P-6992MSA
Engine 256.9 in model 213, 238, 257, 290
MODIFICATION NOTES
| 15.08.2019 | Note AH00.00-P-0500-01MNE added. | Operation step 4 | |
| 15.08.2019 | Note AH05.20-P-1000-09SZ added. | Operation step 5 and 6 |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove | |||
| 1 | Remove camshaft housing. | AR05.20-P-6997MSA | |
| 2 | Remove camshaft positioner of intake camshaft (4). | When replacing the intake camshaft (4). | |
| AR05.20-P-7206MSA | |||
| 3 | Remove camshaft positioner of exhaust camshaft (5). | When replacing the exhaust camshaft (5). | AR05.20-P-7207MSA |
| 4 | Remove cylinder head cover from camshaft housing. | AR01.20-P-5019MSA | |
| Notes on application of flange sealants to seal major assemblies | AH00.00-P-0500-01MNE | ||
| 5 | Remove exhaust camshaft (5) from camshaft housing lower section (2). General information on checking camshafts and bearing points of camshafts |
AH05.20-P-1000-09SZ | |
| 6 | Remove intake camshaft (4) from camshaft housing lower section (2). General information on checking camshafts and bearing points of camshafts |
AH05.20-P-1000-09SZ | |
| Install | |||
| 7 | Insert exhaust camshaft (5) in camshaft housing lower section (2). |
||
| Specified engine oils (service) - Overview | BB00.40-P-0223-02A | ||

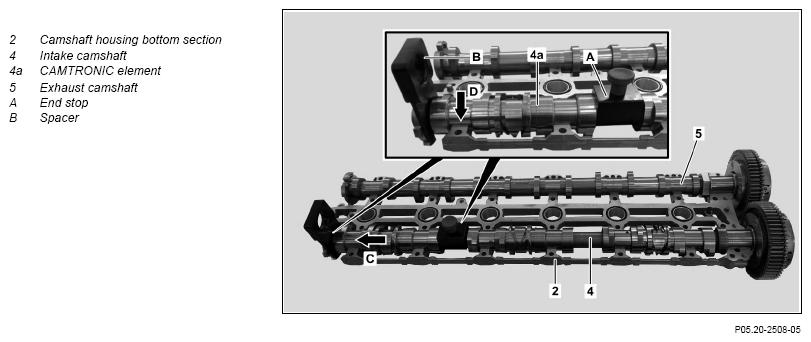

| 8 | Insert end stop (A) into intake camshaft (4). | Fig 1 | |
| 9 | Insert spacer (B) into intake camshaft (4). | Fig 1 | |
| 10 | Press CAMTRONIC element (4a) in specified direction (arrow C) against spacer (B). | Fig 1 | |
| 11 | Insert intake camshaft (4) in camshaft housing lower section (2). | ||
| Specified engine oils (service) - Overview | BB00.40-P-0223-02A | ||
| 12 | Remove spacer (B) and end stop (A). | Fig 1 | |
| 13 | Install cylinder head cover on camshaft housing. | AR01.20-P-5019MSA | |
| 14 | Install camshaft positioner of exhaust camshaft (5). | When replacing the exhaust camshaft (5). | |
| AR05.20-P-7207MSA | |||
| 15 | Install camshaft positioner of intake camshaft (4). | When replacing the intake camshaft (4). | |
| AR05.20-P-7206MSA | |||
| 16 | Install camshaft housing. | AR05.20-P-6997MSA |
