Remove/Install Sliding Sunroof - AR77.20-P-3001FR
Model 257, 290
with code 414 (Sliding sunroof)
Shown on model 257 on the right side of the vehicle
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove sliding roof panel. | AR77.20-P-2854FR | |
| 2 | Remove roof lining and lay down in vehicle. | Model 257 with code 414 (Sliding sunroof) |
AR68.30-P-4300FR |
| Model 290 with code 414 (Sliding sunroof) |
AR68.30-P-4300FRX | ||
| 3 | Pull off the felt strips (3) until the screws located below (7) are accessible. | ||

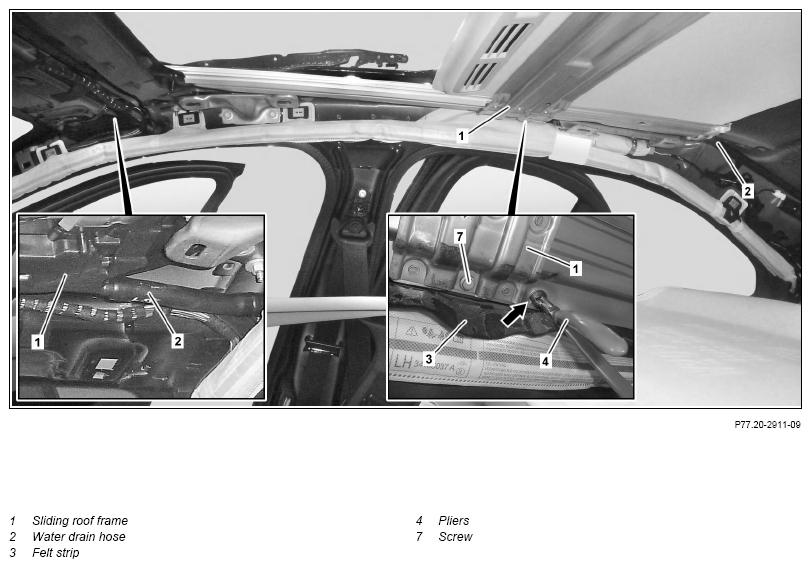

| 4 | Insert pliers (4) into corresponding opening (arrow) on left and right side of vehicle. | Fig 1 | |
| 5 | Remove water drain hoses (2) from left and right side of sliding sunroof frame (1). | Carefully remove water drain hoses (2). Otherwise damage may occur. |
|
| 6 | Disconnect electrical connector of sliding sunroof control module. | ||
| 7 | Unscrew screws (7). | ||
| 8 | Remove pliers (4) and remove sliding sunroof frame (1) from vehicle through door cutout of front passenger door. | Cover center console. Otherwise damage may occur. |
|

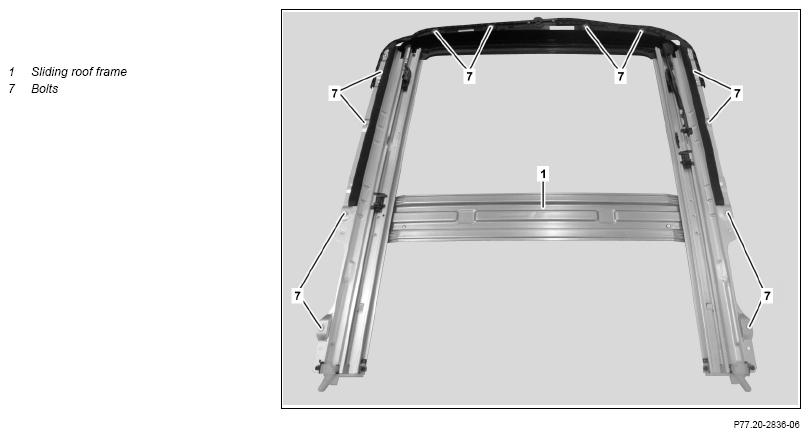

| Fig 1 | |||
| 9 | Remove water drain rail. | When replacing sliding roof frame (1). | AR77.20-P-1997FR |
| 10 | Remove wind deflector. | When replacing sliding roof frame (1). | AR77.20-P-2500FR |
| 11 | Remove trim from sliding roof frame. | When replacing sliding roof frame (1). | AR77.20-P-0501FR |
| 12 | Remove sliding sunroof control module. | When replacing sliding roof frame (1). | AR77.20-P-3022FR |
| 13 | Remove the mounting bracket from the sliding roof. | When replacing sliding roof frame (1). | AR77.20-P-1702FR |
| 14 | Install in the reverse order. | ||
| 15 | Read out fault memory with vehicle diagnosis system and carry out teach-in run for the automatic reversing function of the sliding roof. | ||
| AD00.00-P-2000-06FR |
