Remove/Install Water Drain Rail For Sliding Roof - AR77.20-P-1997FR
Model 257, 290
with code 414 (Sliding sunroof)
Shown on model 257
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove sliding roof panel. | AR77.20-P-2854FR | |

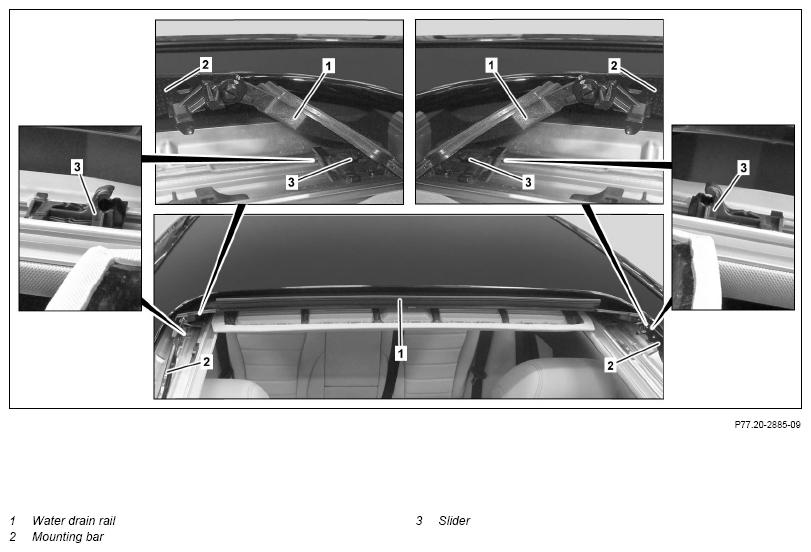

| 2 | Remove water drain rail (1) from the mounting brackets (2) on the right and left. | ||
| 3 | Remove water drain rail (1) from the sliders (3) on the right and left. | ||
| 4 | Check sliders (3) on the right and left for damage. | If there is a problem, ↓ remove sliding sunroof frame and replace sliders (3). |
AR77.20-P-3001FR |
| 5 | Install in the reverse order. |
