Remove/Install Transmission With Start-Up Clutch - AR27.10-P-0505MNA

Transmission 722.93 in model 205 with engine 177

MODIFICATION NOTES

24.06.2022

Special tool 001 589 65 09 00 changed to 177 589 00 03 00.

Operation step 16.

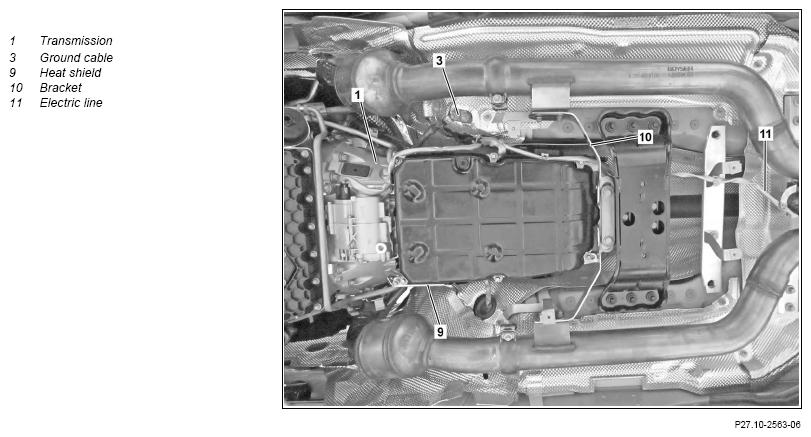

Fig 1: Transmission With Start-Up Clutch Component Location - Model 205 With Engine 177 With Transmission 722.93

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Shift transmission (1) into neutral position and release parking brake.
2	Secure vehicle on vehicle lift.		AR00.60-P-0100CW
3	Disconnect the ground line for the on-board electrical system battery (G1).		AR54.10-P-0003LW
4	Remove bottom engine compartment paneling.
5	Remove bracket (10).	Nut, bracket to transmission	*BA49.10-P-1004-02E
		Bolt, exhaust system bracket to transmission	*BA49.10-P-1009-02E
6	Release and disconnect electrical connector from electrical auxiliary oil pump, and unclip electric line from transmission (1).		AR27.30-P-0651LW
		Ensure that the electric line is routed and mounted correctly.
7	Release and disconnect electrical connector from intelligent servo module for DIRECT SELECT, and expose electric line.		AR27.19-P-0550LWA
		Ensure that the electric line is routed and mounted correctly.
8	Remove heat shield (9) above electrical connector of electric controller unit.	Bolt, heat shield to transmission housing	*BA27.40-P-1014-01A
9	Release and disconnect electrical connector of electric controller unit from transmission (1).
10	Release and disconnect electrical connector from exhaust system, and unclip electric line (11) up to transmission (1).
11	Remove ground line (3) from transmission (1).	Bolt, ground line to transmission housing	*BA27.40-P-1013-01A
12	Detach oil lines from transmission (1), and remove oil pan and place to one side.		AR27.55-P-0600MNA
13	Support transmission (1) and secure to prevent it from falling down.
14	Remove rear engine carrier.		AR22.10-P-4360MNA
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
		Under no circumstances should impact wrenches/drivers or pneumatic tools be used to remove or screw in screws/bolts. Otherwise, the threads will be damaged.
15	Mark front flex disk to power output flange of transmission (1) with color and remove.		AR41.10-P-0040-01LW
	Drift for releasing the fitting sleeves in the flexible couplings		WF58.50-P-4110-01A
		Flex disk or joint flange at transmission/rear axle differential or propeller shaft	*BA41.10-P-1001-01L
		Counterholder	Fig 4
16	Detach start-off clutch (6) from drive plate and pry off from drive plate evenly using long wedge.	Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench. Otherwise, damage to the engine or even failure of the engine may occur. Replace the screws/bolts of the start-up clutch (6).
		Bolt, start up clutch to driver	*BA27.51-P-1001-01A
		Ring wrench	Fig 6
		Long wedge	Fig 3
17	Unscrew screws and remove transmission (1) downward.	Secure the start-up clutch (6) to prevent it from falling down. Otherwise damage will occur. Align the holes of the start-up clutch (6) with the threaded unions in the drive plate.
		Bolt, automatic transmission to engine	*BA27.40-P-1008-01A

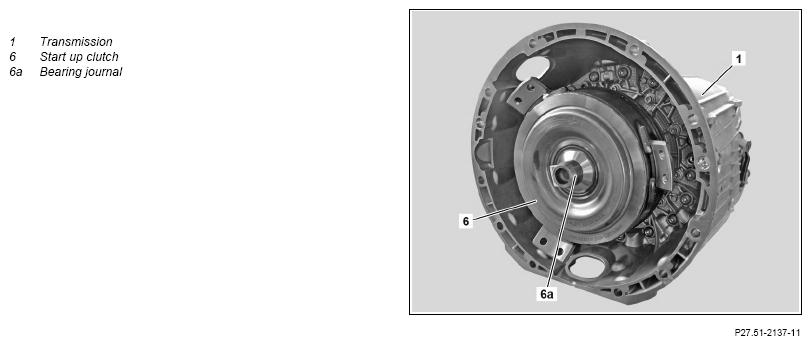

18	Remove start-off clutch (6) with grab handles.	If necessary.
			AR27.51-P-0400-02AMG
		Apply a little multi-purpose paste to bearing journal (6a).
		Multi-purpose paste	*BR00.45-Z-1009-06A
		Installed height of start up clutch	*BE27.51-P-1001-02A
		Handles	Fig 5
		Parallel rest	Fig 2
19	Remove corrosion from crankshaft.		AR03.20-P-1000-01A
		Multi-purpose paste	*BR00.45-Z-1009-06A
		Assembly cleaner	*BR00.45-Z-1028-04A
20	Check threaded unions in drive plate.	If threaded unions are loose or if damage is present: ↓ Replace drive plate.
			AR03.30-P-8001MNA
21	Install in the reverse order.
	Concluding tasks
22	Check transmission oil level and correct if necessary.		AR27.00-P-0270W
23	Connect diagnostic system, read out fault memory and clear if necessary.
			AD00.00-P-2000-04B
24	Perform transmission adaptation with vehicle diagnosis system.	When replacing or repairing transmission (1).
			AD00.00-P-2000-04B
25	Reset data on service life of torque converter lockup clutch with the vehicle diagnosis system.	When replacing start-off clutch (6).
			AD00.00-P-2000-04B
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
26	Perform engine test run, check transmission (1) for proper operation and leak tightness while doing so.

TEST VALUES FOR START UP CLUTCH

Number	Designation			Transmission 722.93
BE27.51-P-1001-02A	Installed height of start up clutch	Distance, bolt flange to transmission housing flange	mm	9, 5
BE27.51-P-1001-02A	Installed height of start up clutch	See picture		-

HOUSING

Number	Designation			Transmission 722.9
BA27.40-P-1008-01A	Bolt, automatic transmission to engine	M10X40	Nm	38
		M10X45	Nm	38
		M10X90	Nm	38
		M12	Nm	-

HOUSING

Number	Designation		Transmission 722.9
BA27.40-P-1013-01A	Bolt, ground line to transmission housing	Nm	9

HOUSING

Number	Designation		Transmission 722.9
BA27.40-P-1014-01A	Bolt, heat shield to transmission housing	Nm	9

START UP CLUTCH

Number	Designation			Transmission 722.93
BA27.51-P-1001-01A	Bolt, start up clutch to driver	Stage 1	Nm	4
		Stage 2	Nm	30
		Stage 3	∠°	90

PROPELLER SHAFT

Number	Designation				Model 205
BA41.10-P-1001-01L	Flex disk or joint flange at transmission/rear axle differential or propeller shaft	Self-locking nut		Nm	68
		Direct threaded connection	Stage 1	Nm	60
		Direct threaded connection	Stage 2	∠°	90
