Remove/Install Rear Engine Support - AR22.10-P-4360MNA
Engine 177 in model 205
MODIFICATION NOTES
| 07.09.2018 | Screw/bolt, rear engine support to frame floor assembly | Model 205 | BA22.10-P-1005-03E |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | |
| Remove/install | |||
| 1 | Raise vehicle and secure on vehicle lift | AR00.60-P-1002LWG | |
| 2 | Remove rear lower engine compartment paneling | AR61.20-P-1105LW | |

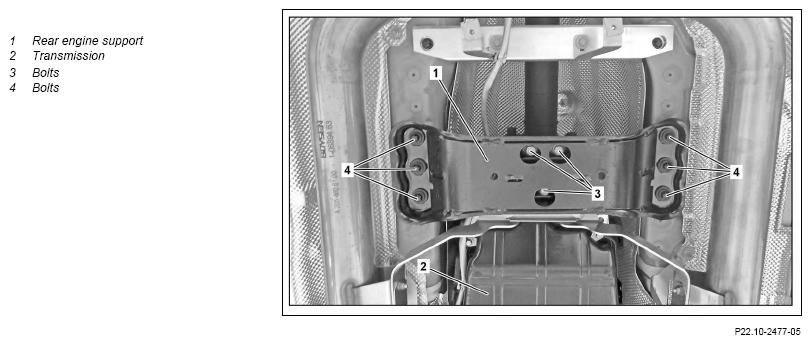

| 3 | Support transmission (2) with major assembly mount and mounting plate | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 4 | Remove screws (3) | *BA22.10-P-1004-03E | |
| 5 | Unscrew screws (4) and remove rear engine carrier (1) downwards | Never use an impact wrench/driver or compressed air tools for unscrewing or screwing in the screw/bolts (4)! Otherwise the threads can get damaged. |
|
| *BA22.10-P-1005-03E | |||
| 6 | Install in the reverse order |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA22.10-P-1004-03E | Rear engine mount on engine support | Nm | 30 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 205 | |||
|---|---|---|---|---|---|
| BA22.10-P-1005-03E | Screw/bolt, rear engine support to frame floor assembly | M10x22 | Silver | Nm | |
| Black | Nm | - | |||
| M10x24 | Black | Nm | - | ||
| M10x38 | Nm | - | |||
| M10x20 | Stage 1 | Nm | 30 | ||
| Stage 2 | Nm | 50 | |||
