Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600MNA
Transmission 722.93 in model 205 with engine 177

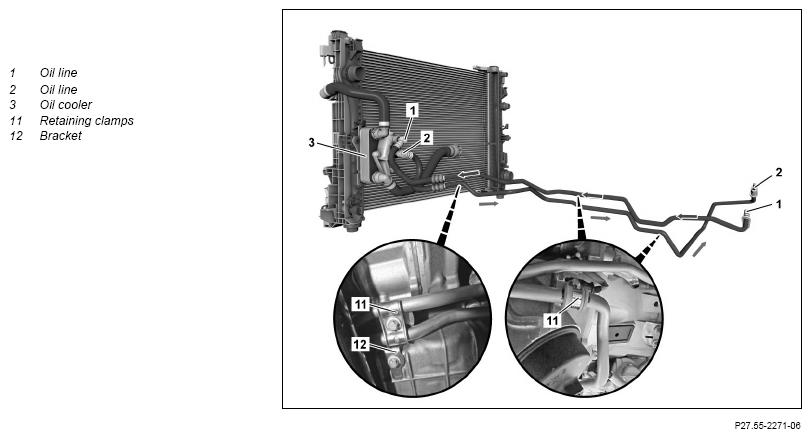

Fig 1: Oil Lines Of Oil Cooling For Automatic Transmission Component Location - Model 205 With Engine 177 With Transmission 722.93
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove lower engine compartment paneling | AR61.20-P-1105LW | |
| 2 | Loosen engine mounts | AR22.10-P-4330MNA | |
| 3 | Raise engine | The drive shafts will otherwise be damaged. |
|
| 4 | Remove steering coupling | AR46.10-P-8000LW | |
| 5 | Disconnect oil lines (1, 2) from oil cooler (3) | AR27.10-P-0501-03LW | |
| Fig 2 | |||
| 6 | Detach retaining clamps (11) | ||
| 7 | Detach oil lines (1, 2) from transmission | ||
| Fig 2 | |||
| 8 | Remove bracket (12) | ||
| 9 | Remove oil filter cover | ||
| AP18.00-P-0101D | |||
| 10 | Detach ground line from underfloor | ||
| 11 | Push oil line (1) toward rear over crossmember | ||
| 12 | Unscrew oil line (1) at side | ||
| 13 | Push oil line (2) toward rear over crossmember | ||
| 14 | Unscrew oil line (2) at side | ||
| 15 | Install in the reverse order | ||
| Check | |||
| 16 | Check engine oil level, adjust to correct level if necessary | ||
| AP18.00-P-0101D | |||
| 17 | Check transmission oil level, correct if necessary | AR27.00-P-0270W | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 18 | Check for oil leaks with engine running |
