Remove/Install Flywheel/Drive Plate - AR03.30-P-8001MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

Shown on engine 177

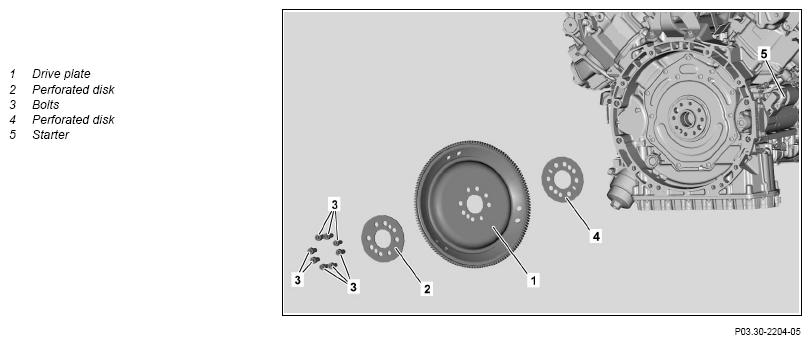

Fig 1: Flywheel/Drive Plate Component Location - Model 205 W/ Engine 177

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1.1	Remove transmission with start-off clutch.	Engine 177 in model 205 with transmission 722.93	AR27.10-P-0505MNA
1.2	Remove drive shaft with the drive shaft housing.	Engine 178 in model 190	AR41.50-P-0011MNB
1.3	Remove transmission with torque converter.	Engine 176 in model 463 with transmission 722.9 up to model year 2019	AR27.10-P-0500GW
2	Place starter (5) to one side with lines still connected.
3	Insert retaining lock for starter ring gear in starter opening.	Engine 178 in model 190	AR03.30-P-1600-06MNB
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench. Otherwise, damage to the engine or even failure of the engine may occur.	AR03.30-P-1600-06MNA
		Ring wrench	Fig 2
		Retaining lock	Fig 3
4	Mark position of the perforated disk (2) for clutch plate (1) in color.	Engine 176 in model 463 up to model year 2019 Engine 177 in model 205
5	Remove screws (3).	Engine 178.9 in model 190Bolt, two-mass flywheel to crankshaft	*BA03.30-P-1002-01W
		Engine 176 in model 463 up to model year 2019 Engine 177.980 in model 205Bolt, drive plate to crankshaft	*BA03.30-P-1003-01W
6	Remove perforated disk (2).	Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 : The colored markings on the perforated disk (2) and on the clutch plate (1) must match. Vibrations will occur in the drivetrain otherwise.
7	Remove drive plate (1).	Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 The perforated disk (4) remains on the engine.
8	Install in the reverse order.

Fig 2: Identifying Ring Wrench (177 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Retaining Lock (112 589 03 40 00)

Courtesy of MERCEDES-BENZ USA
