Remove/Install Wheel Carrier - AR35.20-P-0115LWI

Model 205.386/387/486/487

MODIFICATION NOTES

20.12.2016

Special tool added.

Operation steps 9, 10, 11, 13, 14

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

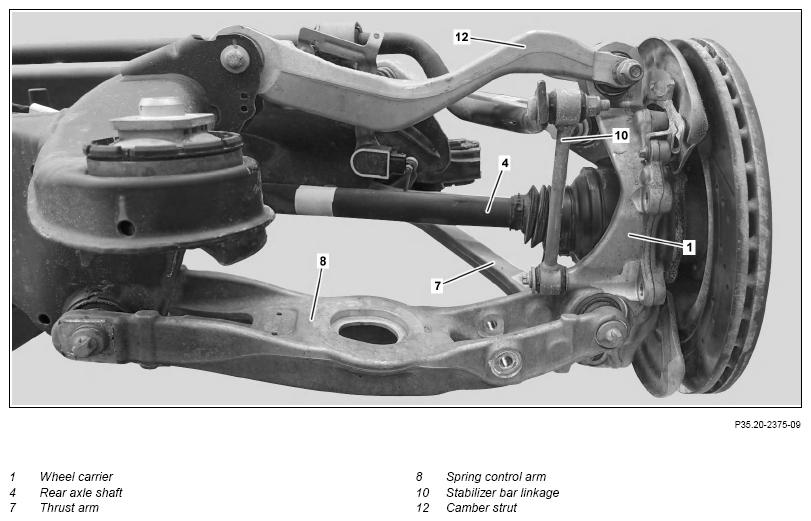

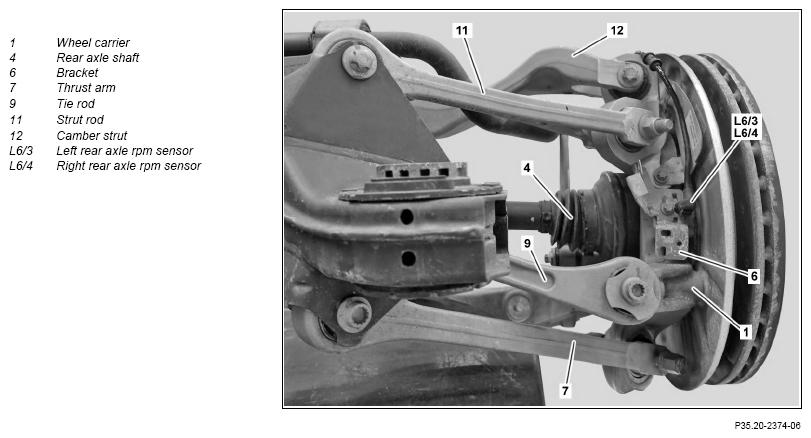

Fig 1: Wheel Carrier Component Location - Model 205.386/387/486/487

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-1002LWG
2	Remove rear axle spring	Model 205.386/387/486/487 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.20-P-0230LW
3	Remove shock absorber (2)		AR32.25-P-0110LW

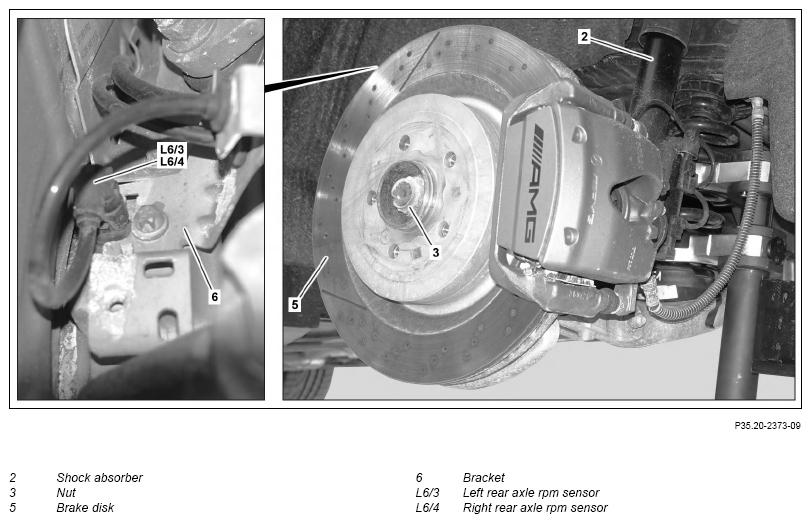

4	Operate electric parking brake and unscrew nut (3) from rear axle shaft (4)	: Replace nut (3) and double-lock it.
		Nut, rear axle shaft to wheel bearing	*BA35.30-P-1001-01N
5	Remove brake disk (5)		AR42.10-P-0220EWE
6	Remove bracket (6) with left rear axle rpm sensor (L6/3) or right rear axle rpm sensor (L6/4) from wheel carrier (1) and place with connected lines to one side	Bolt, rpm sensor to wheel carrier	*BA42.30-P-1001-02K
7	Unhook electrical line of electric parking brake from bracket on wheel carrier (1)
8	Unhook electrical line of shock absorber (2) from bracket on wheel carrier (1)	If electrically adjustable shock absorbers (2) are installed.
9	Detach thrust arm (7) from wheel carrier (1)	The screwdriver bit is to be used when a bolt with multi-point socket profile is installed.
		Bolt, thrust arm to wheel carrier	*BA35.20-P-1002-05J
		Screwdriver bit	Fig 3
10	Remove spring link (8) from wheel carrier (1)	The screwdriver bit is to be used when a bolt with multi-point socket profile is installed.
		Bolt, spring control arm to wheel carrier	*BA35.20-P-1002-01I
		Screwdriver bit	Fig 3
11	Detach tie rod (9) from wheel carrier (1)	Bolt, tie rod to wheel carrier	*BA35.20-P-1001-04M
		Screwdriver bit	Fig 3
12	Remove torsion bar linkage (10) from wheel carrier (1)	Model 205.386/387/486/487 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Screw/nut, torsion bar linkage to wheel carrier	*BA32.20-P-1004-04S
13	Detach strut rod (11) from wheel carrier (1)	The screwdriver bit is to be used when a bolt with multi-point socket profile is installed.
		Bolt, strut rod to wheel carrier	*BA35.20-P-1002-03L
		Screwdriver bit	Fig 3
14	Detach camber strut (12) from wheel carrier (1)	The screwdriver bit is to be used when a bolt with multi-point socket profile is installed.
		Bolt, camber strut to wheel carrier	*BA35.20-P-1002-02L
		Screwdriver bit	Fig 3
15	Remove wheel carrier (1) from rear axle shaft (4)	If the rear axle shaft (4) is firmly seated in the rear axle shaft flange. ↓ Detach rear axle shaft (4) from rear axle shaft flange.
			AR35.30-P-0115-03LF
		Bracket	Fig 4
		Extraction and insertion tool	Fig 2

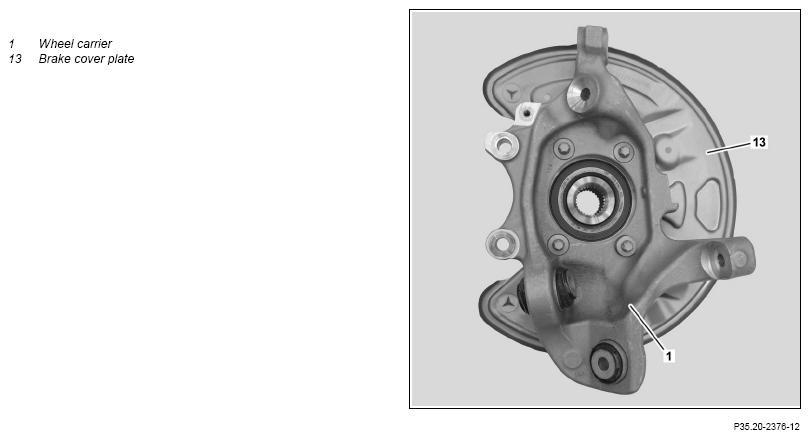

16	Press new rear axle shaft flange into angular contact ball bearing up to end stop	When replacing the wheel carrier (1).
		The new wheel carrier (1) is supplied with angular contact ball bearings only. The angular contact ball bearing does not need to be removed from the new wheel carrier (1).	AR35.20-P-0130LW
17	Detach brake cover plate (13) from wheel carrier (1)	When replacing the wheel carrier (1).
		Model 205.386/387/486/487Screw/bolt, rear axle brake cover plate to hub/rotor assembly	*BA42.10-P-1004-06J
18	Install in the reverse order
19	Perform wheel alignment check		AR40.20-P-0200LW

REAR AXLE TORSION BAR

Number	Designation		Model 205.086/087/286/287/386/387/486/487
BA32.20-P-1004-04S	Screw/nut, torsion bar linkage to wheel carrier	Nm	50

TIE ROD

Number	Designation			Model 205
BA35.20-P-1001-04M	Bolt, tie rod to wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90

SPRING CONTROL ARM

Number	Designation			Model 205
BA35.20-P-1002-01I	Bolt, spring control arm to wheel carrier	Stage 1	Nm	80
		Stage 2	∠°	90

CAMBER STRUT

Number	Designation			Model 205
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90

STRUT ROD

Number	Designation				Model 205
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 1	Nm	50
			Stage 2	∠°	90

THRUST ARM

Number	Designation			Model 205
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90

REAR AXLE SHAFT

Number	Designation		Model 205
BA35.30-P-1001-01N	Nut, rear axle shaft to wheel bearing	Nm	350

BRAKE DISKS, BRAKE COVER PLATE

Number	Designation			Model 205
BA42.10-P-1004-06J	Screw/bolt, rear axle brake cover plate to hub/rotor assembly	M6	Nm	8

REAR AXLE RPM SENSOR

Number	Designation		Model 205
BA42.30-P-1001-02K	Bolt, rpm sensor to wheel carrier	Nm	8

Fig 2: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Bracket (210 589 01 40 00)

Courtesy of MERCEDES-BENZ USA
