Remove/Install Brake Disc - AR42.10-P-0220EWE

Model 205

Model 207

Model 212 (except 212.074/075/076/077/092/274/275/276/277/292)

except code B07 (AMG - ceramic brake system)

Model 213

Model 218 (except 218.374/375/376/392/974/975/976/992)

except code B07 (AMG - ceramic brake system)

Model 253

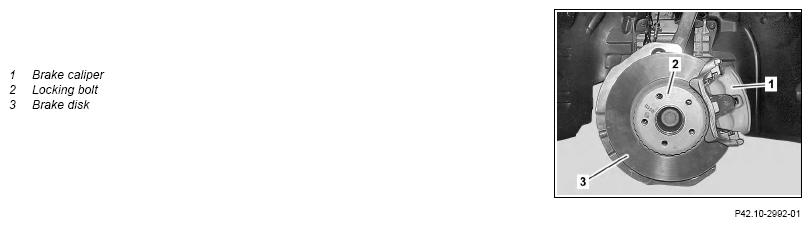

Shown on model 205 with 1-Piston Floating Caliper Brake on front axle

Fig 1: Brake Disc Component Location - Model 205
G14814861Courtesy of MERCEDES-BENZ USA
WARNING Risk Of Injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
Topical note Notes on handling, transport and storage of composite brake disks Model 205, 213, 253 AH42.10-P-9406-12LF
Topical note Notes on handling, transport and storage of ceramic brake disks   AH42.10-P-9406-13A
Topical note Notes on repairs to brake system   AH42.00-P-0003-01A
  Notes On Safety-Relevant Components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/Install
1.1 Remove brake caliper (1) with brake pads from front axle and fasten with attached lines free of tension to the vehicle. When removing front brake disk (3) with fixed-caliper brake.
Model 213.061/261 4-piston fixed-caliper brake
      AR42.10-P-0070FRB
    Model 205, 213 (except 213.061/261), 253 4-piston fixed-caliper brake AR42.10-P-0070LWA
    Model 205 with code B06 (Grey-Painted Brake Callipers) except code B07 (AMG - Ceramic Brake System) except code U70 (Red-Painted Brake Callipers)
6-piston fixed-caliper brake Model 213 with code B06 (Grey-Painted Brake Callipers) except code B07 (AMG - Ceramic Brake System) except code U70 (Red-Painted Brake Callipers)
6-piston fixed-caliper brake Model 253 with code B06 (AMG High-Performance Braking System) except code B07 (AMG - Ceramic Brake System) except code U70 (AMG High-Performance Composite Braking System) 6-piston fixed-caliper brake		 AR42.10-P-0070LWB
    Model 205 with code B07 (AMG - Ceramic Brake System) except code B06 (Grey-Painted Brake Callipers) except code U70 (Red-Painted Brake Callipers)
6-piston fixed-caliper brake Model 213 with code B07 (AMG - Ceramic Brake System) except code B06 (Grey-Painted Brake Callipers) except code U70 (Red-Painted Brake Callipers)
6-piston fixed-caliper brake Model 253 with code B07 (AMG - Ceramic Brake System) except code B06 (AMG High-Performance Braking System) except code U70 (AMG High-Performance
Composite Braking System) 6-piston fixed-caliper brake		 AR42.10-P-0070LWC
    Model 205 with code U70 (Red-Painted Brake Callipers) except code B06 (Grey-Painted Brake Callipers) except code B07 (AMG - Ceramic Brake System)
6-piston fixed-caliper brake Model 213 with code U70 (Red-Painted Brake Callipers) except code B06 (Grey-Painted Brake Callipers) except code B07 (AMG - Ceramic Brake System)
6-piston fixed-caliper brake Model 253 with code U70 (AMG High-Performance Composite Braking System) except code B06 (AMG High-Performance Braking System) except code B07 (AMG - Ceramic Brake System) 6-piston fixed-caliper brake		 AR42.10-P-0070LWD
    Model 212 (except 212.074/075/076/077/092/274/275/276/277/292), 218 (except 218.374/375/376/392/974/975/976/992) except code B07 (AMG - Ceramic Brake System) with 4-piston fixed-caliper brake AR42.10-P-0070EWA
1.2 Remove brake caliper (1) with brake caliper support from front axle and fasten with attached lines free of tension to the vehicle. When removing front brake disk (3) with floating-caliper brake.
Model 205, 213, 253 1-piston floating caliper brake
      AR42.10-P-0070LW
    Model 207
Floating caliper brake model 212 (except 212.074/075/076/077/092/274/275/276/277/292), 218 (except 218.374/375/376/392/974/975/976/992) except code B07 (AMG - Ceramic Brake System) floating caliper brake		 AR42.10-P-0505EWA
    Model 207, 212 (except 212.074/075/076/077/092/274/275/276/277/292) except code B07 (AMG - Ceramic Brake System) with non-split 1-piston floating caliper brake AR42.10-P-0070EWB
    Model 207, 212 (except 212.074/075/076/077/092/274/275/276/277/292), 218 (except 218.374/375/376/392/974/975/976/992) except code B07 (AMG - Ceramic Brake System) with split floating caliper brake AR42.10-P-0070EWC
2.1 Remove brake caliper (1) with brake caliper support from rear axle and fasten with attached lines free of tension to the vehicle. When removing rear brake disk (3).
Model 207
Model 212 (except 212.074/075/076/077/092/274/275/276/277/292) except code B07 (AMG - Ceramic Brake System)
      AR42.10-P-0080EW
    Model 218 (except 218.374/375/376/392/974/975/976/992) except code B07 (AMG - Ceramic Brake System) AR42.10-P-0080EL
    Model 205 (except 205.086/087/286/287/386/387/487)
Model 213 (except 213.088/089/288/289), 253 (except 253.388/389/988/989)		 AR42.10-P-0080LW
2.2 Remove brake pads from rear axle. When removing rear brake disk (3).
Model 205.086/087/286/287/386/387/486/487
Model 213.088/089/288/289
Model 253.388/389/988/989
      AR42.10-P-1710LW
3 Unscrew safety screw (2) and remove brake disk (3). INSTALLATION IMPORTANT Replace locking bolt (2).
IMPORTANT Model 205, 213, 253 with engine 177
Installation:  Observe marking for installation side.
    TORQUE SPECIFICATION Model 205
Model 213 with engine 177
Model 213 with engine 256, 264, 274, 276, 642, 654, 656
Model 253 Safety bolt, rear axle brake disk to flange		 *BA42.10-P-1001-06J
    TORQUE SPECIFICATION Model 205
Model 213 with engine 177
Model 213 with engine 256, 264, 274, 276, 642, 654, 656
Model 253 Locking bolt, brake disk of front axle to wheel hub		 *BA42.10-P-1002-06J
    TORQUE SPECIFICATION Model 207
Model 212 (except 212.074/075/076/077/092/274/275/276/277/292) except code B07 (AMG - Ceramic Brake System)
Model 218 (except 218.374/375/376/392/974/975/976/992) except code B07 (AMG - Ceramic Brake System) Safety screw, rear axle brake disk to wheel flange		 *BA42.10-P-1001-06H
    TORQUE SPECIFICATION Model 207
Model 212 (except 212.074/075/076/077/092/274/275/276/277/292) except code B07 (AMG - Ceramic Brake System)
Model 218 (except 218.374/375/376/392/974/975/976/992) except code B07 (AMG - Ceramic Brake System) Locking bolt, brake disk of front axle to wheel hub		 *BA42.10-P-1002-06H
CLEAN Clean
4 Clean contact surface and interference fit of brake disk (3).
5 Lightly grease interference fit of brake disk (3). Paste, hot lubrication 1 Kg, Dbl 6879.20 *BR00.45-Z-1005-06A
6 Install in the reverse order.
BRAKE DISKS, BRAKE COVER PLATE

Number Designation Model 207 Model 212
BA42.10-P-1001-06H Safety screw, rear axle brake disk to wheel flange Nm 10 10
BRAKE DISKS, BRAKE COVER PLATE

Number Designation Model 218
BA42.10-P-1001-06H Safety screw, rear axle brake disk to wheel flange Nm 10
BRAKE DISKS, BRAKE COVER PLATE

Number Designation Model 205 Model 213 with engine 256, 264, 274, 276, 642, 654, 656
BA42.10-P-1001-06J Safety bolt, rear axle brake disk to flange Nm 10 10
BRAKE DISKS, BRAKE COVER PLATE

Number Designation Model 213 with engine 177 Model 253
BA42.10-P-1001-06J Safety bolt, rear axle brake disk to flange Nm 10 10
BRAKE DISKS, BRAKE COVER PLATE

Number Designation Model 207 Model 212
BA42.10-P-1002-06H Locking bolt, brake disk of front axle to wheel hub Nm 10 10
BRAKE DISKS, BRAKE COVER PLATE

Number Designation Model 218
BA42.10-P-1002-06H Locking bolt, brake disk of front axle to wheel hub Nm 10
BRAKE DISKS, BRAKE COVER PLATE

Number Designation Model 205 Model 213 with engine 256, 264, 274, 276, 642, 654, 656
BA42.10-P-1002-06J Locking bolt, brake disk of front axle to wheel hub Nm 10 10
BRAKE DISKS, BRAKE COVER PLATE

Number Designation Model 213 with engine 177 Model 253
BA42.10-P-1002-06J Locking bolt, brake disk of front axle to wheel hub Nm 10 10
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1005-06A Paste, hot lubrication 1 kg, DBL 6879.20 A 000 989 76 51
