Remove/Install Rear Axle Shaft Flange And Angular Ball Bearing - AR35.20-P-0130LW

Model 205, 253, 293

Shown on model 205

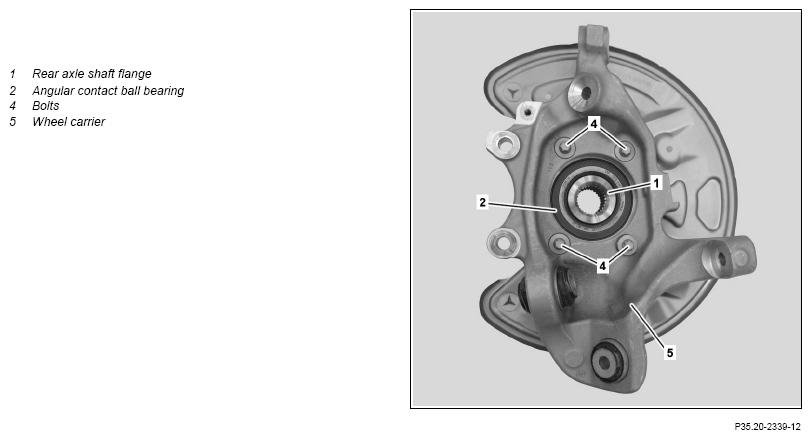

Fig 1: Rear Axle Shaft Flange And Angular Ball Bearing Component Location - Model 205

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Remove wheel carrier (5).	Model 205 (except 205.386/387/486/487) Model 253 (except 253.388/389/988/989) Model 293	AR35.20-P-0115LW
		Model 205.386/387/486/487	AR35.20-P-0115LWI
		Model 253.388/389/988/989	AR35.20-P-0115LWX
2	Unscrew screws (4) and remove angular-contact ball bearing (2) with rear axle shaft flange (1) from wheel carrier (5).
	Clean
3	Clean water drain in wheel carrier (5).		AR35.20-P-0115-03CW
4	Clean contact surface on wheel carrier (5).
	Install
5	Press new angular-contact ball bearing (2) onto new rear axle shaft flange (1) up to end stop using stamp (3).	When replacing the angular contact ball bearing (2). The stamp (3) must be fitted flat to the inner bearing shell (arrow) of the angular contact ball bearing (2). Otherwise damage will occur. Replace rear axle shaft flange (1) as well. Commercially available devices/tools  Workshop press
		Ram	Fig 2
6	Insert angular-contact ball bearing (2) with rear axle shaft flange (1) into wheel carrier (5).
7	Screw in screws/bolts (4).	Screw in screws (4) in a crosswise pattern
		Model 205 with engine 177, 274, 276, 626, 651 Model 253, 293Bolt, wheel bearing to wheel carrier	*BA35.20-P-1001-06E
8	Install wheel carrier (5).	Model 205 (except 205.386/387/486/487) Model 253 (except 253.388/389/988/989) Model 293	AR35.20-P-0115LW
		Model 205.386/387/486/487	AR35.20-P-0115LWI
		Model 253.388/389/988/989	AR35.20-P-0115LWX

HUB

Number	Designation				Model 205 with engine 177	Model 205 with engine 264, 274, 276, 626, 651, 654
BA35.20-P-1001-06E	Bolt, wheel bearing to wheel carrier	M10x41		Nm	-	70
		M12x30 with cone	Stage 1	Nm	80	-
			Stage 2	∠°	45	-
		M12x35 without cone	Stage 1	Nm	60	-
			Stage 2	∠°	45	-

HUB

Number	Designation				Model 253	Model 293
BA35.20-P-1001-06E	Bolt, wheel bearing to wheel carrier	M10x41		Nm	70	70
		M12x30 with cone	Stage 1	Nm	-	-
			Stage 2	∠°	-	-
		M12x35 without cone	Stage 1	Nm	-	-
			Stage 2	∠°	-	-

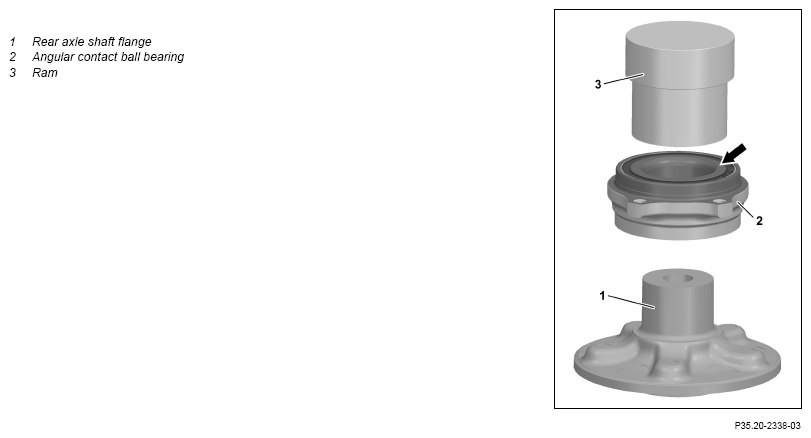

Fig 2: Identifying Ram (211 589 00 43 04)

Courtesy of MERCEDES-BENZ USA
