Remove/Install Left High-Pressure Fuel Pump - AR07.02-P-1023MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Modification notes

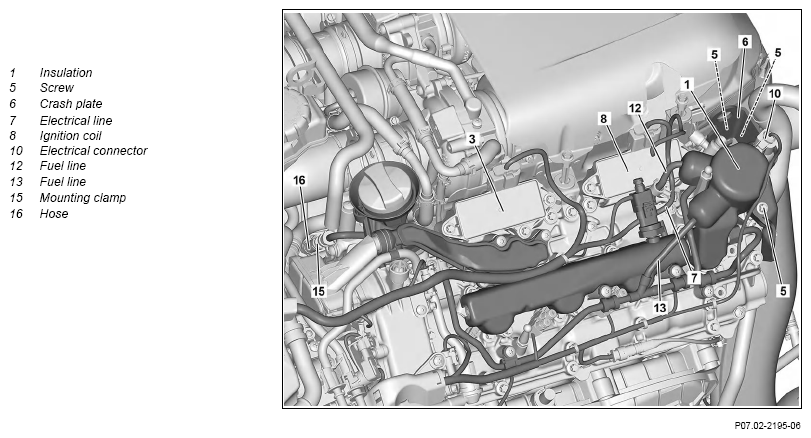

Shown on engine 177

Courtesy of MERCEDES-BENZ USA

Shown on engine 177

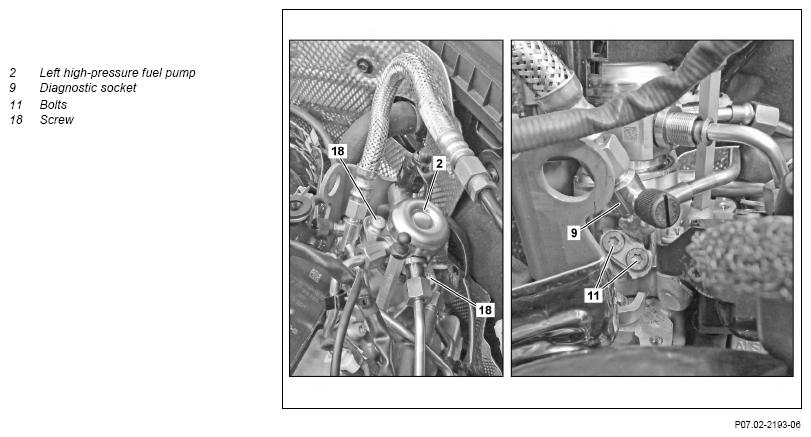

Fig 1: Left High-Pressure Fuel Pump Component Location - Model 205 With Engine 177

Courtesy of MERCEDES-BENZ USA

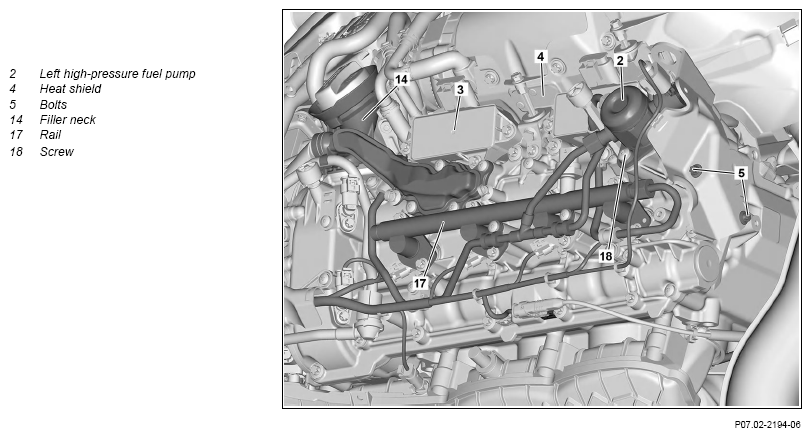

Shown on engine 177

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure	Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized.	AS07.16-Z-0001-01A
	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove
1	Move transmission to neutral position and release parking brake.
2	Disconnect ground line from on-board electrical system battery (G1).	Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 Model 463 (except 463.234) with engine 176 as of model year 2013 up to model year 2019	AR54.10-P-0003GW
		Engine 177 in model 205	AR54.10-P-0003LW
3	Remove left and right air filter housing.		AR09.10-P-1150MNA
4	Remove insulation (1).
5	Remove side heat shield (4) of left exhaust gas turbocharger.	Engine 177 in model 205	AR09.40-P-6026MNA
6	Unscrew bolts (5) and place crash plate (6) to one side.	Engine 177 in model 205
7	Unclip electric line (7) at fuel line (12).
8	Remove ignition coil (8).	Engine 177 in model 205	AR15.12-P-2003MNA
9	Remove position sensors of camshafts.	Engine 176 in model 463 up to model year 2019	AR15.12-P-2144MNF
		Engine 177 in model 205	AR15.12-P-2144MNA
10	Remove bottom engine compartment lining.	Engine 176 in model 463 as of model year 2016 up to model year 2019 except code ZQ0 (G 500 4x42 )	AR61.20-P-1105GW
		Engine 177 in model 205	AR61.20-P-1105LW
11	Remove front circulation pump for low-temperature water circuit and place to one side with connected lines and hoses.	Engine 176 in model 463 up to model year 2019	AR09.41-P-6925MNF
12	Rotate engine at center bolt of crankshaft in direction of engine rotation to a 40° CKA after top dead center (TDC) at cylinder 1 (ignition TDC).		AR01.10-P-1000-01SZ
		Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench. Otherwise, damage to the engine or even failure of the engine may occur.
		Ring wrench	Fig 5
		Drift	Fig 3
13	Reduce fuel pressure via service connection (9).		AR07.03-P-1460-01MNA
		Pressure hose	Fig 7
14	Release and disconnect electrical connector (10).
15	Unscrew screws (11) of brackets at service connection (9).
16	Unscrew screws of brackets of fuel lines (12, 13) at left cylinder head cover and left cylinder head.
17	Remove filler neck (14).
18	Open fastening clamp (15) and remove fuel line (13) from hose (16). _	Record plug	Fig 4
19	Remove fuel line (12) at rail (17).	Thoroughly clean area around fuel line (12) at points to be disconnected. Failure can occur otherwise to the fuel system Do not kink or bend fuel line (12). Otherwise leaks and damage may occur.
		Assembly cleaner	*BR00.45-Z-1028-04A
		Record plug	Fig 4
		Box wrench bit	Fig 6
20	Remove fuel lines (12, 13) at left high-pressure fuel pump (2) and place to one side.	Thoroughly clean area around fuel lines (12, 13) at points to be disconnected. Failure can occur otherwise to the fuel system. Do not kink or bend fuel lines (12, 13). Otherwise leaks and damage may occur.
		Assembly cleaner	*BR00.45-Z-1028-04A
		Record plug	Fig 4
		Box wrench bit	Fig 6
21	Unscrew screws (18) and remove left high-pressure fuel pump (2) in upward direction.	Unscrew screws (18) during removal of left high-pressure fuel pump (2) alternately by, in each case, half a revolution. Left high-pressure fuel pump (2) will otherwise be damaged. Thoroughly clean area around high-pressure fuel circuit. Failure can occur otherwise to the fuel system.
		Assembly cleaner	*BR00.45-Z-1028-04A
	Install
22	Replace sealing ring of left high-pressure fuel pump (2).	Assembly tool	Fig 2
23	Install left high-pressure fuel pump (2) with screws (18) at left cylinder head cover.	Screw in screws (18) during installation of left high-pressure fuel pump (2) alternately by, in each case, half a revolution. Left high-pressure fuel pump (2) will otherwise be damaged. Left high-pressure fuel pump (2) must lie flat on left cylinder head cover after screws (18) are tightened. Replace screws (18).
		Bolt, fuel system high pressure pump to cylinder head	*BA07.02-P-1001-01E
	Check
24	Check fuel lines (12, 13) for damage.	Engine 176 in model 463 up to model year 2019	AR07.03-P-1010-03MM
		Engine 177 in model 205	AR07.03-P-1010-03MNA
		Check sealing cones of fuel lines (12, 13) before assembly. Otherwise leaks and damage can occur. If there is a problem:
		↓ Replace corresponding fuel line (12, 13).
25	Attach fuel lines (12, 13) to left high-pressure fuel pump (2).		AR07.03-P-1010-02MNA
		Do not kink or bend fuel lines (12, 13). Otherwise leaks and damage may occur.
		Union nut, fuel line to fuel distributor/fuel system high-pressure pump	*BA07.03-P-1001-01H
		Record plug	Fig 4
		Box wrench bit	Fig 6
26	Attach fuel line (12) to rail (17).		AR07.03-P-1010-02MNA
		Do not kink or bend fuel line (12). Otherwise leaks and damage may occur.
		Union nut, fuel line to fuel distributor/fuel system high-pressure pump	*BA07.03-P-1001-01H
		Record plug	Fig 4
		Box wrench bit	Fig 6
27	Slide fuel line (13) onto hose (16) and close fastening clamp (15).	Replace fastening clamp (15). Record plug	Fig 4
28	Install filler neck (14).	When inserting the filler neck (14) make sure that the sealing ring is not damaged.
		Replace sealing ring.
		Bolt, filler neck to cylinder head cover	*BA01.20-P-1006-01J
		Assembly tool	Fig 2
29	Attach brackets of fuel lines (12, 13) to left cylinder head cover and left cylinder head.	Bolt, fuel line clamp to engine/bracket	*BA07.03-P-1004-01H
30	Screw in screws (11) at bracket of service connection (9) and tighten service connection (9) at left cylinder head cover.	Bolt, fuel line service connection to left cylinder head cover	*BA07.03-P-1002-01H
31	Connect and lock electrical connector (10).
32	Attach front circulation pump for low-temperature water circuit.	Engine 176 in model 463 up to model year 2019	AR09.41-P-6925MNF
33	Install lower engine compartment lining.	Engine 176 in model 463 as of model year 2016 up to model year 2019 except code ZQ0 (G 500 4x42 )	AR61.20-P-1105GW
		Engine 177 in model 205	AR61.20-P-1105LW
34	Install position sensors of camshafts.	Engine 176 in model 463 up to model year 2019	AR15.12-P-2144MNF
		Engine 177 in model 205	AR15.12-P-2144MNA
35	Install ignition coil (8).	Engine 177 in model 205	AR15.12-P-2003MNA
36	Clip in electric line (7) at fuel line (12).
37	Install crash plate (6) and screw in screws (5).	Engine 177 in model 205 Bolt, shield to cylinder head/cylinder head cover	*BA07.02-P-1002-01E
38	Install side heat shield (4) of left exhaust gas turbocharger.	Engine 177 in model 205
			AR09.40-P-6026MNA
39	Install insulation (1).
40	Install left and right air filter housing.		AR09.10-P-1150MNA
41	Connect ground line to on-board electrical system battery (G1).	Engine 176 in model 463 up to model year 2019 Engine 177 in model 205
		Engine 176 in model 463 (except 463.234) as of model year 2013 up to model year 2019	AR54.10-P-0003GW
		Engine 177 in model 205	AR54.10-P-0003LW
42	Switch on ignition.	Before engine start, switch on ignition for 5 s to fill left high-pressure fuel pump (2) with fuel. Left high-pressure fuel pump (2) will otherwise be damaged.
	Check
43	Check high-pressure fuel circuit.
		Engine 176 in model 463 up to model year 2019	AD00.00-P-2000-04A
		Engine 177 in model 205	AD00.00-P-2000-04B
			AR07.03-P-1010-04MM
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
44	Perform engine test run and check fuel system for proper operation and leak tightness.

Fig 2: Identifying Assembly Tool (000 589 93 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Drift (177 589 00 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Ring Wrench (177 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Box Wrench Bit (000 589 80 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Pressure Hose (119 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
