Remove/Install Position Sensors Of Camshafts - AR15.12-P-2144MNA
Engine 177 in model 205
| Remove/install | |||
| 1.1 | Remove left-hand air filter housing | For removing the left position sensor (3) of exhaust camshaft | |
| AR09.10-P-1150MNA | |||
| 1.2 | Remove right air filter housing | For removing the right position sensor (3) of exhaust camshaft | |
| AR09.10-P-1150MNA | |||
| 1.3 | Remove left engine air intake duct upstream of air filter | For removing the left position sensor (3) of intake camshaft | |
| 1.4 | Remove right engine air intake duct upstream of left air filter | For removing the right position sensor (3) of intake camshaft | |

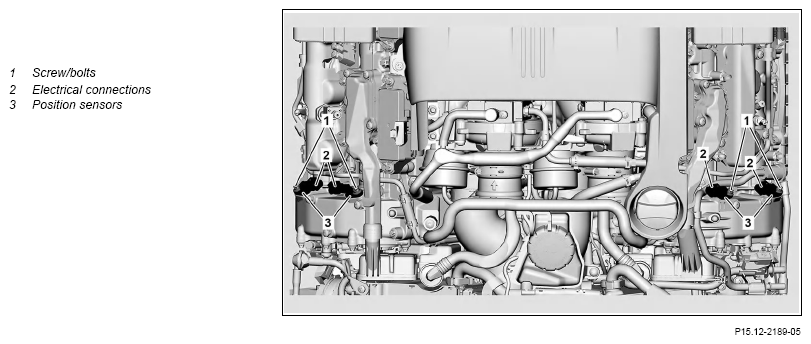

| 2 | Separate electrical connections (2) | ||
| 3 | Remove screw/bolts (1) and take out position sensor (3) | ||
| *BA15.10-P-1002-03M | |||
| 4 | Install in the reverse order | ||
| 5 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
POSITION SENSOR
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.10-P-1002-03M | Bolt, camshaft position sensor to cylinder head cover | Nm | 8 |
