Remove/Install Slide Rails On Primary Chain Drive - AR05.10-P-8482MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205

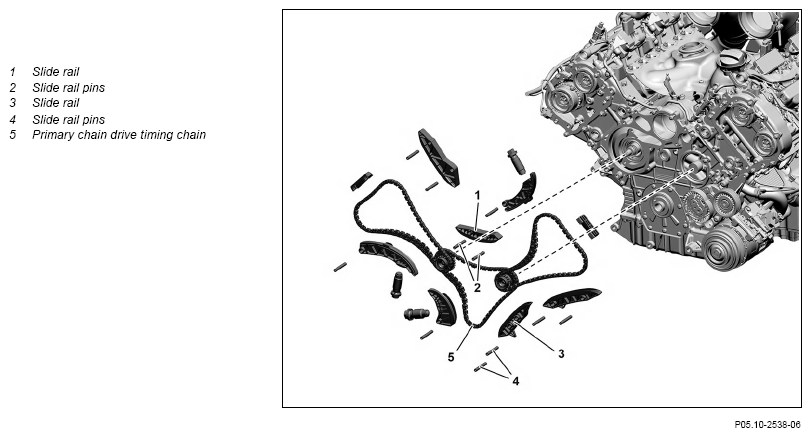

Shown on ENGINE 177
| Remove/install | |||
| 1.1 | Remove left secondary chain drive timing chain. | When removing slide rail (1). | AR05.10-P-7614MNA |
| 1.2 | Remove oil pump. | When removing the slide rail (3). | AR18.10-P-6020MNA |
| 2.1 | Remove left secondary chain drive tensioning rail. | When removing slide rail (1). | AR05.10-P-8129MNA |
| 2.2 | Remove oil pump chain. | When removing the slide rail (3). | AR18.10-P-2145MNA |
| 3 | Remove primary chain drive chain tensioner. | AR05.10-P-7800MNA | |
| 4 | Remove slide rail pins (2). | When removing slide rail (1). | |
| Fig 2 | |||
| Fig 3 | |||
| 5 | Remove slide rail pins (4). | When removing the slide rail (3). | |
| Fig 2 | |||
| Fig 3 | |||
| 6 | Remove slide rail (1) upward and slide rail (3) downward. | ||
| 7 | Check slide rails (1, 3) for wear, galling, and damage; replace slide rails (1, 3) if necessary. | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check engine oil level and correct if necessary. | ||
| Engine 176 in model 463.234/239/255 up to model year 2019 | AP18.00-P-0101GGE | ||
| Engine 177 in model 205 | AP18.00-P-0101D | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform engine test run and check engine in terms of leak tightness while engine is running |
