Remove/Install Oil Pump Chain - AR18.10-P-2145MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 178 in model 190

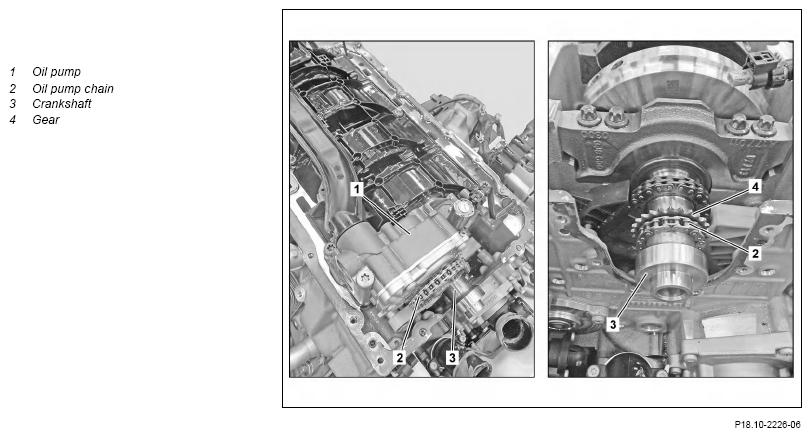

Shown on ENGINE 177
| Remove/install | |||
| 1 | Remove oil pump (1). | AR18.10-P-6020MNA | |
| 2 | Remove oil pump chain (2) from gearwheel (4) of crankshaft (3). | ||
| Check | |||
| 3 | Check oil pump chain (2) and gearwheel (4) of oil pump drive at crankshaft (3) for damage. | If damage is present: ↓ Replace oil pump chain (2) and crankshaft (3). |
|
| AR03.20-P-4351MNA | |||
| 4 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Perform engine test run. While doing so, check engine for proper operation and leak tightness |
