Retrofit COMAND Online Incl. DVD Changer - AN82.85-P-0008LW

Model 205.0/2

with code 3U1 (Head unit europe/CIS-states/Monoglei)

with code 522 (Audio 20 radio)

except code 154 (CHANGE FROM HU-ENTRY FROM MELCO TO PANASONIC/OPTIMI. HW)

except code 355 (Preinstallation for retrofitting navigation system)

except code 531 (COMAND APS)

except code 625 (Australia specification)

except code 822 (Addit. parts for South African vehicles)

except code 830 (China version)

except code 835 (South Korea version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

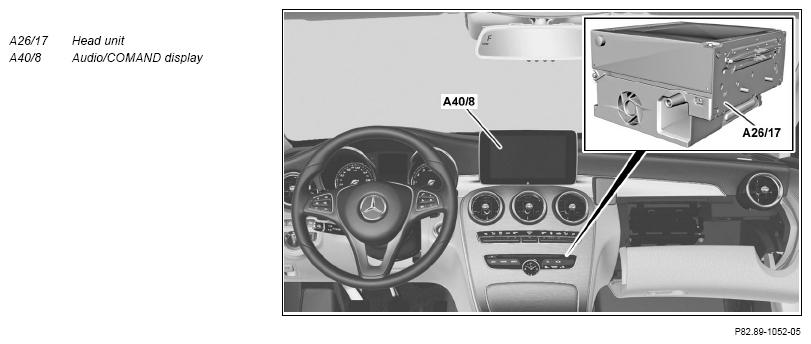

1	Remove head unit (A26/17).
		The head unit (A26/17) is no longer required.	AR82.85-P-1100LW
2	Remove audio/COMAND display (A40/8).
		The Audio/COMAND display (A40/8) is no longer required.	AR82.60-P-7722LW
3	Remove glove compartment.
			AR68.10-P-1400LW
4	Remove instrument cluster.
		Model 205.0/2 with code 464 (Digital instrument cluster, full display)	AR54.30-P-6015LWM
		Model 205.0/2 except code 464 (Digital instrument cluster, full display)	AR54.30-P-6015LW
5	Remove upper control panel control unit.
		The upper control panel control unit is no longer required.	AR54.21-P-1262LW
6	Remove USB electrical connectors (X115) in front stowage compartment.
			AR82.60-P-1032LW
7	Remove Audio/COMAND control panel.	Model 205.0/2 except code 448 (Touchpad)
			AR54.21-P-0500LW
8	Remove front passenger side floor covering.
		Model 205.### 2#	AR68.20-P-2050LW
		Model 205.### 1#	AR68.20-P-2070LW

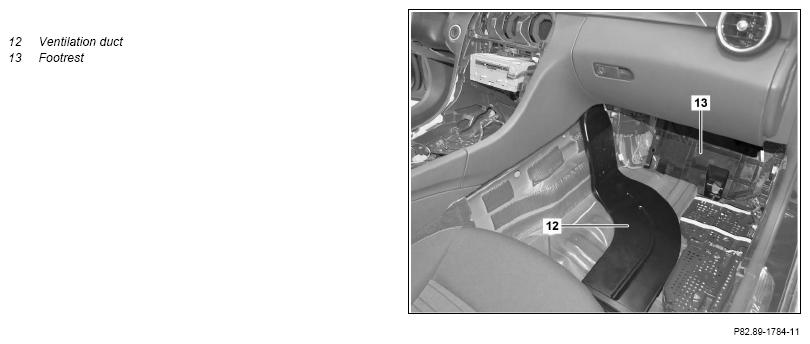

9	Remove ventilation duct (12).
10	Remove footrest (13).
11	Disconnect ground line from battery.
			AR54.10-P-0003LW
12	Release A-pillar fuse box on front passenger side (F1/3).	Do not disconnect electrical lines.
13	Remove floor covering at front left.	Model 205.0 ##/2## 1# except code 448 (Touchpad)
			AR68.20-P-2050LW
	Install
14	Prepare wiring harness for SD card navigation		AN82.85-P-0007-05LWA
15	Install wiring harness for SD card navigation.		AN82.85-P-0007-06LWB
16	Install global positioning system (GPS) antenna.		AN82.61-P-7474-04LW
		Binder Duotec® Pilz in Pilz Klett - with adhesive 32	*BR00.45-Z-1084-02A
17	Retrofit WiFi antenna for COMAND.		AN82.85-P-0005-05LW
18	Install multimedia connection unit in front stowage compartment.
			AR82.60-P-1032LW
19	Install new audio/COMAND display (A40/8).
			AR82.60-P-7722LW
20	Install new head unit (A26/17).
			AR82.85-P-1100LW
21	Install new upper control panel control unit.
			AR54.21-P-1262LW
22	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
23	Delete special equipment from on-line vehicle data card.	Code 522 (Audio 20 radio)
24	Enter special equipment into online vehicle data card.	Model 205.0/2 except code 448 (Touchpad), Code 448 (Touchpad)  Code 531 (COMAND APS), Code 814 (DVD changer)
25	Attach COMAND Online incl. DVD changer retrofitted as per note under field organization text to DG 54 and DG 82.		AN82.85-P-0008LW
26	Connect diagnostic system and select vehicle using vehicle identification number (VIN).
			AD00.00-P-2000-04B
27	Perform variant coding for retrofitting of special equipment.		AN82.61-P-0001-05LW
28	Disconnect diagnostic system.
			AD00.00-P-2000-04B
	Check
29	Perform function test.	See Owner's Manual.
